Ikegami

Ikegami Tsushinki 5306220 3.3kVA Power Transformer 115-240V Pri 100-110V Sec

(No reviews yet) Write a Review
SKU:
51556
MPN:
5306220
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
155.00 LBS
Shipping:
Calculated at Checkout
  • Ikegami Tsushinki 5306220 3.3kVA power transformer – rear/side view showing vented enclosure with heavy-duty output cable looped on floor

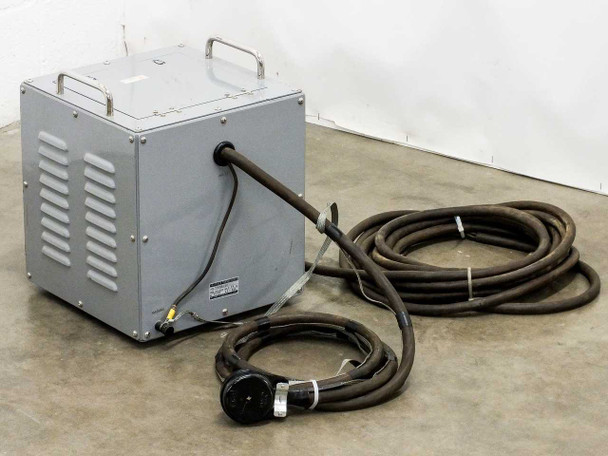

  • Ikegami 5306220 3.3kVA transformer – opposite side view showing carry handle on top, vented enclosure, output cable and 4-prong NEMA input cable
  • Ikegami Tsushinki 5306220 rating plate – shows Type 5306220, FREQ 50/60Hz, CAP 3.3KVA, serial No. 1535, dated 11-83
  • Ikegami 5306220 transformer wiring diagram card – shows multi-tap primary connections for 115V, 200V, 206V, 220V, 230V, 240V and secondary taps for 100V and 110V

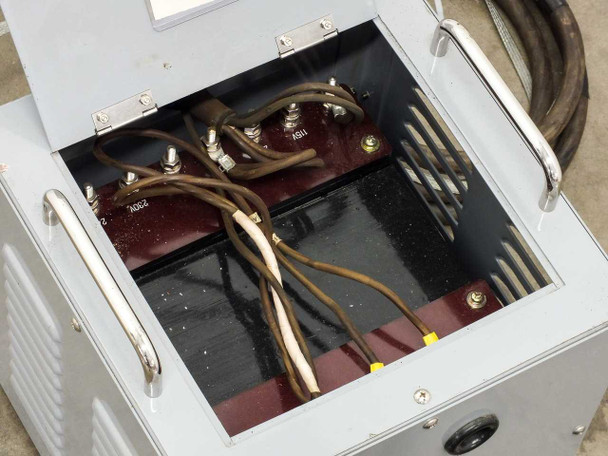

  • Ikegami 5306220 transformer interior – top lid open showing transformer core with multi-tap terminal blocks and wiring harness

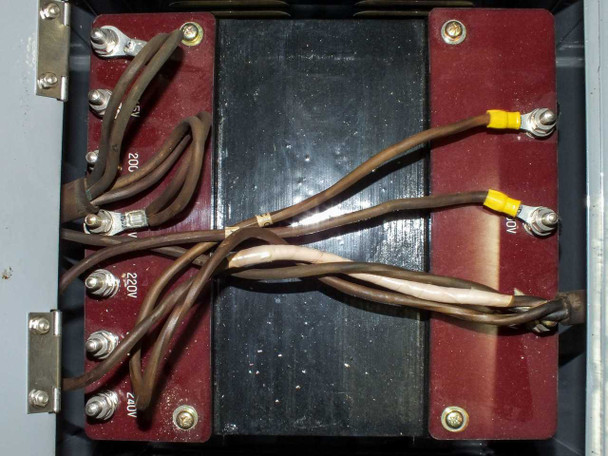

  • Ikegami 5306220 transformer core close-up – top-down view of transformer core with tap terminals labeled 200V, 220V, 230V, 240V on primary side and 0V tap on secondary
  • Ikegami 5306220 transformer – close-up of 4-prong NEMA input power plug at end of heavy-duty cable
$185.00
Was: $500.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Ikegami Tsushinki 5306220 3.3kVA Power Transformer 115-240V Pri 100-110V Sec

The Ikegami Tsushinki 5306220 is a heavy-duty single-phase step-down power transformer rated at 3.3 kVA (3,300 VA). It features a multi-tap primary winding that accepts six selectable input voltages — 115V, 200V, 206V, 220V, 230V, and 240V — and delivers a secondary output of 100V or 110V, making it well suited for powering Japanese-standard equipment from a variety of international line voltages. Built by Ikegami Tsushinki Co., Ltd. (ITC), a Japanese manufacturer known for professional broadcast and video equipment, this transformer dates from November 1983.

Specifications & What's Included

  • Manufacturer: Ikegami Tsushinki Co., Ltd. (ITC)
  • Model / Type: 5306220
  • Power Rating: 3.3 kVA (3,300 VA)
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • Primary Voltage (selectable taps): 115V, 200V, 206V, 220V, 230V, 240V
  • Secondary Voltage (selectable taps): 100V, 110V
  • Tap configuration diagram laminated card affixed to interior
  • Enclosure: Vented gray steel box with two carry handles on top
  • Dimensions: 15" W × 12" D × 16" H (approx.)
  • Approximate weight: 87 lbs — freight shipping or local pickup required
  • Includes heavy-duty output cable and input cable with 4-prong NEMA plug
  • Serial No.: 1535 | Date: 11-83 (November 1983)

Applications

Single-phase step-down power transformers like the Ikegami 5306220 are used to run equipment designed for Japanese 100V/110V power standards from higher-voltage mains supplies common in North America, Europe, and other regions. Ikegami Tsushinki is primarily known as a broadcast video equipment manufacturer — cameras, monitors, and production gear — and this transformer was designed to power that type of equipment in studios or field locations where the local mains voltage does not match the equipment's requirements. The multi-tap primary allows the same transformer to be deployed across a wide range of international voltages (115V North American single-phase through 240V European/Australian supplies), while the dual secondary taps (100V and 110V) cover the standard Japanese voltage range. This type of heavy-duty transformer continues to be used today wherever Japanese-standard broadcast, AV, or industrial equipment must be operated from non-Japanese mains power.

Condition: Used
This Ikegami Tsushinki 5306220 3.3kVA single-phase power transformer has been inspected and appears to be in good used condition. The vented steel enclosure is intact and the carry handles are undamaged. The heavy-duty input cable with 4-prong NEMA plug and the output cable are both included. Due to its size and weight (approximately 87 lbs), this item requires freight shipping or local pickup. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Ikegami Tsushinki
Model:
5306220
MPN:
5306220
Type:
Single-Phase Step-Down Power Transformer
SKU:
51556
Power Rating:
3.3 kVA (3300 VA)
Primary Voltage:
115V, 200V, 206V, 220V, 230V, 240V (selectable taps)
Secondary Voltage:
100V, 110V (selectable taps)
Phase:
Single Phase
Frequency:
50/60 Hz
Tap Configuration:
Multi-tap primary: 115, 200, 206, 220, 230, 240V
Dimensions:
15" W x 12" D x 16" H
Enclosure:
Vented metal enclosure with carry handles
Includes:
Heavy-duty input power cable with NEMA plug and output cable
Connector Type:
4-prong NEMA plug (input cable)
Manufacture Date:
November 1983 (11-83 per rating plate)
Serial Number:
1535
Country/Region of Manufacture:
Japan
Seller Notes:
Includes heavy-duty input cable with 4-prong NEMA plug and output cable. Freight shipping or local pickup required.
Condition Notes:
This Ikegami Tsushinki 5306220 3.3kVA single-phase power transformer has been inspected and appears to be in good used condition. Includes input cable with 4-prong NEMA plug and output cable. Freight shipping or local pickup required.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
