Description
IBM PC 300GL 61H0382 Motherboard System Board Socket 7 PCI ISA 72-Pin SIMM Slots

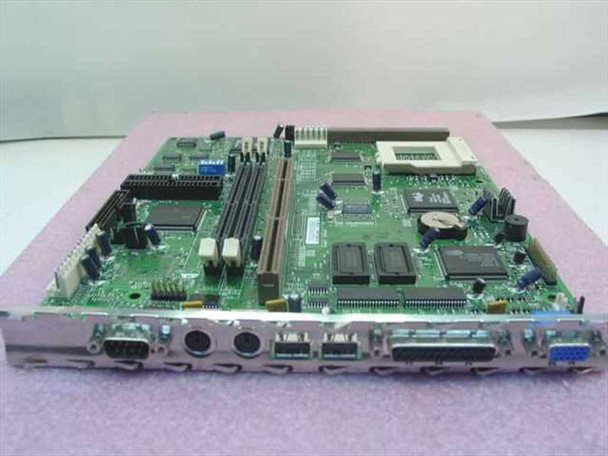

This is the original IBM PC 300GL system board (planar board), FRU part number 61H0382-801, for the IBM PC 300GL desktop computer (machine type 6282). Built around Socket 7, it supports Intel Pentium and Pentium MMX processors as well as compatible Socket 7 CPUs. Onboard integrated I/O — including VGA, PS/2 keyboard and mouse ports, a serial port, and a parallel port — is presented through IBM's proprietary I/O bracket along the board edge.
Specifications & What's Included
- Brand: IBM
- Part Number / FRU: 61H0382 (variant 61H0382-801)
- Machine Type: IBM PC 300GL (6282)
- CPU Socket: Socket 7 (Intel Pentium / Pentium MMX; AMD K6-compatible)
- Form Factor: Proprietary IBM desktop planar board
- Expansion Slots: 2x PCI, 2x ISA
- Memory Slots: 4x 72-pin SIMM (EDO / FPM DRAM)
- Integrated Graphics: Yes — onboard VGA output
- Integrated I/O: PS/2 keyboard port, PS/2 mouse port, DB9 serial port, DB25 parallel port, VGA port
- CMOS battery present on board
- Planar barcode label intact (visible in photos)
Applications
The IBM PC 300GL was a mainstream business desktop from IBM's mid-to-late 1990s PC lineup — part of the broader IBM PC 300 series introduced to serve corporate and institutional customers who relied on IBM-compatible Pentium-class machines. This planar board (IBM's term for a system board or motherboard) is the core logic board for that platform, integrating the processor socket, memory, expansion buses, and I/O into one assembly specific to the 6282 chassis. It dates from approximately 1996–1998, the Socket 7 era when the Pentium and Pentium MMX reigned and ISA was beginning its transition out in favor of PCI. Today these boards are sought by technicians maintaining legacy IBM PC 300GL workstations still in specialized industrial, kiosk, or institutional service, as well as collectors and restorers of late-1990s IBM desktop hardware. The proprietary IBM planar form factor means this board is a direct fit replacement for 6282-chassis systems only.

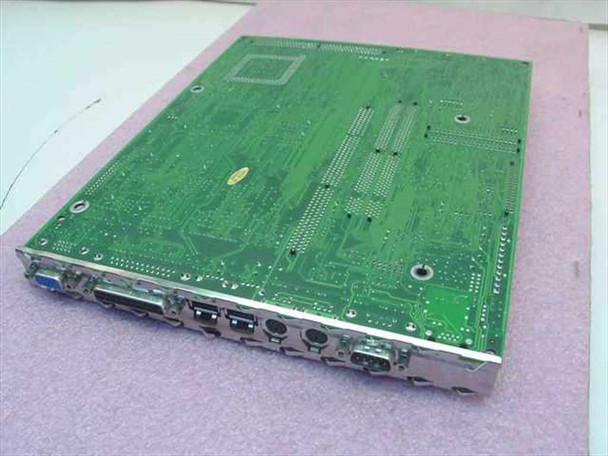

This IBM PC 300GL 61H0382 system board (planar board) has been inspected and appears to be in good used condition. The PCB is clean with no visible cracks, broken traces, or damaged sockets. The I/O port bracket and all onboard connectors look intact. There is light handling wear consistent with normal use in a desktop system. No capacitor damage or corrosion is visible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
PC 300GL |
MPN: |
61H0382 |
Secondary Model: |
61H0382-801 |
Part Number: |
61H0382 |
FRU Number: |
61H0382-801 |
Machine Type: |
6282 |
Type: |
Motherboard / System Board (Planar) |
SKU: |
15225 |
Socket Type: |
Socket 7 |
CPU Compatibility: |
Intel Pentium, Pentium MMX; AMD K6 |
Form Factor: |
Proprietary IBM Desktop (Planar) |
Expansion Slots: |
2x PCI, 2x ISA |
Memory Slots: |
4x 72-Pin SIMM |
Memory Type: |
EDO / FPM DRAM (72-Pin SIMM) |
Integrated Graphics: |
Yes — VGA output |
I/O Ports: |
PS/2 keyboard, PS/2 mouse, DB9 serial, DB25 parallel, VGA |
Compatible With: |
IBM PC 300GL (Type 6282) desktop systems |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This IBM PC 300GL 61H0382 system board has been inspected and appears to be in good used condition. The PCB is clean with no visible damage; connectors and sockets look intact with light handling wear. Please contact us with any questions. |
