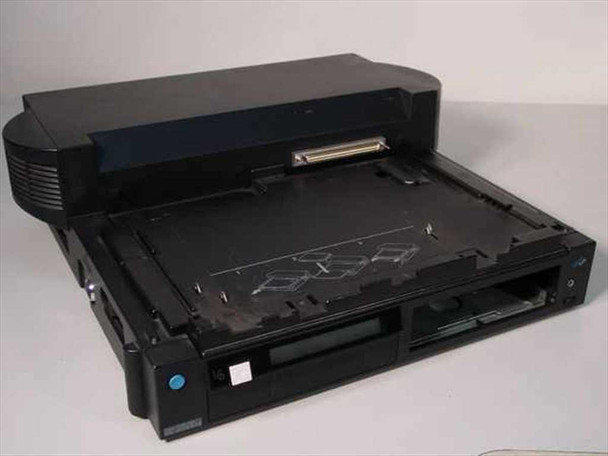

IBM 3546-001 ThinkPad 360 750 760 Docking Station II 2 ISA 2 PCMCIA VGA SCSI
The IBM 3546-001 is the Docking Station II for IBM ThinkPad 360, 750, 755, and 760 series laptops. It connects via a proprietary bottom-dock connector to instantly expand the laptop with a full set of desktop ports and two ISA expansion slots — turning a portable ThinkPad into a desktop-equivalent workstation without swapping cables.
Specifications & What's Included
- Manufacturer Part Number: 3546-001
- Compatible with: IBM ThinkPad 360, 750, 755, and 760 series laptops
- ISA Expansion Slots: 2
- PCMCIA Slots: 2
- Video Output: VGA
- Serial Port: Yes
- Parallel / Printer Port: Yes
- SCSI Port: Yes
- PS/2 Mouse Port: Yes
- PS/2 Keyboard Port: Yes
- Expansion Bay: Yes
- Power Input: 100–240V AC, 50/60Hz, 2.7A–1.4A (universal voltage)
- Docking Interface: Proprietary IBM ThinkPad bottom-dock connector
- Country of Manufacture: Japan
- Included: Docking station only — no manual, cables, or peripherals
Applications
The IBM ThinkPad Docking Station II was designed for business users who needed a single laptop to serve double duty — portable on the road and fully desktop-capable at the office. By docking the ThinkPad, users gained access to a full-size keyboard and monitor via VGA, a printer port, SCSI peripherals such as external drives and scanners, and — critically — two ISA expansion slots for add-in cards like network adapters, sound cards, or modem cards. The two PCMCIA slots provided additional storage or connectivity card support. This station dates from the mid-1990s era of IBM's ThinkPad line, when the 360 and 760 series were IBM's flagship business notebooks. The ISA bus and SCSI interface place it firmly in that pre-PCI/USB period, making it relevant today primarily for users maintaining legacy ThinkPad systems, vintage IBM collectors, or anyone running period-correct software on original hardware.
This IBM 3546-001 ThinkPad Docking Station II has been inspected and is in good used condition. It shows minor scuffs and scrapes typical of previously used equipment — nothing unusual or severe. The docking connector and rear ports appear intact. No manual or peripherals are included; this is the docking station only. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
3546-001 |
MPN: |
3546-001 |
Type: |
Laptop Docking Station |
SKU: |
7787 |
Compatible With: |
IBM ThinkPad 360 Series |
Compatible With 2: |
IBM ThinkPad 750, 755 Series |
Compatible With 3: |
IBM ThinkPad 760 Series |
Expansion Slots: |
2x ISA, 2x PCMCIA |
Ports: |
VGA, Serial, Parallel/Printer, SCSI, PS/2 Mouse, PS/2 Keyboard |
Number of ISA Slots: |
2 |
Number of PCMCIA Slots: |
2 |
Interface: |
Proprietary ThinkPad docking connector |
Power Requirements: |
100-240V AC, 50/60Hz, 2.7A-1.4A |
Form Factor: |
Desktop Docking Station |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Docking station only — no manual, cables, or peripherals included. |
Condition Notes: |
IBM 3546-001 ThinkPad Docking Station II in good used condition. Shows minor scuffs and scrapes typical of normal use. Docking station only — no manual or peripherals included. |
