IBM 18P8795 FRU 19P3978 SCSI LVD/SE Tape Drive Module 100-240V APN 3-00809-01

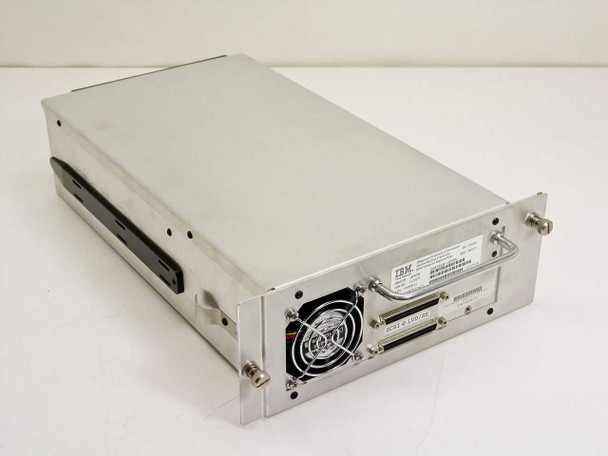

The IBM 18P8795 is a SCSI LVD/SE tape drive module designed for use in IBM storage server and tape library systems. It is a self-contained canister-style unit housing an internal tape drive mechanism, a cooling fan, dual 68-pin VHDCI SCSI connectors for daisy-chaining, and a backplane interface connector. Rated at 100-240V with universal input, this unit was manufactured in the United States and carries FRU designation 19P3978.
Specifications & What's Included
- IBM Part Number (P/N): 18P8795
- IBM FRU Number: 19P3978
- APN: 3-00809-01
- AIN: 19P39771320677
- Reference: 40-5022-04 — DRV, IBM LTO, LVD/SE, Low Power, Non SC-24
- Interface: SCSI LVD/SE (Low Voltage Differential / Single Ended)
- SCSI Connectors: Two 68-pin VHDCI (in/out for daisy-chain configuration)
- Backplane Interface: Multi-pin PCB connector (left side of module)

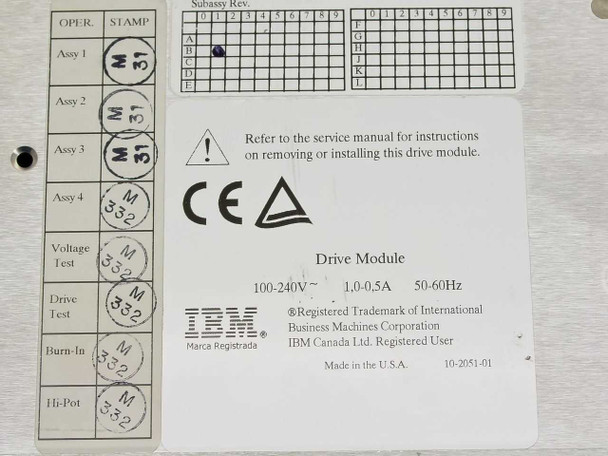

- Power Input: 100-240V~, 1.0-0.5A, 50-60Hz (universal input)
- Cooling: Integrated fan on rear panel
- Form Factor: Canister/module style for rack-mount storage enclosure
- Country of Manufacture: United States
- DC Date Code: 030324 / SDC: 040107 (approximately 2003-2004 era)
- Sold as-is — module only, no cables or accessories included
Applications
SCSI LVD/SE tape drive modules of this type were used in IBM enterprise storage systems and automated tape libraries from the early-to-mid 2000s, a period when LTO (Linear Tape-Open) was becoming the dominant format for high-capacity backup in data center environments. LVD (Low Voltage Differential) SCSI offered improved noise immunity and longer cable runs compared to single-ended SCSI, making it well-suited for rackmount storage enclosures where drives were daisy-chained off a shared SCSI bus. Units like this served as field-replaceable drive modules within IBM tape libraries and storage servers, allowing individual drives to be swapped without disrupting the enclosure's backplane. Today, these units are sought for parts, repair, and legacy system maintenance by IT professionals supporting older IBM storage infrastructure.
This IBM 18P8795 SCSI LVD/SE Tape Drive Module is being sold as-is for parts or repair. It is not guaranteed to be functional and has not been tested at our facility. The unit shows typical wear consistent with previous data center use. The enclosure, cooling fan, dual SCSI LVD/SE connectors, backplane interface, and internal tape mechanism are all physically present and visible in the photos. Please review our full photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
18P8795 |
MPN: |
18P8795 |
Secondary Model: |
19P3978 |
FRU Number: |
19P3978 |
APN: |
3-00809-01 |
AIN: |
19P39771320677 |
Reference Number: |
40-5022-04 |
Type: |
SCSI LVD/SE Tape Drive Module |
Interface: |
SCSI LVD/SE |
Connector Type: |
68-Pin VHDCI SCSI (x2, daisy-chain) |
Power Requirements: |
100-240V~, 1.0-0.5A, 50-60Hz |
Form Factor: |
Module / Canister |
Country/Region of Manufacture: |
United States |
Compatible With: |
IBM Storage Server / Tape Library Systems |
Drive Description: |
LVD/SE Low Power Non SC-24 |
DC Date Code: |
030324 |
SDC Date Code: |
040107 |
Seller Notes: |
Drive module only — no cables, trays, or external accessories included. |
SKU: |
39291 |
Condition Notes: |
IBM 18P8795 SCSI LVD/SE Tape Drive Module sold as-is for parts or repair. Not tested or guaranteed functional. Unit shows typical wear. All physical components present. Please view photos and contact us with any questions. |
