IBM 1389160 Model M 122-Key Terminal Keyboard 5-Pin DIN Buckling Spring 1985

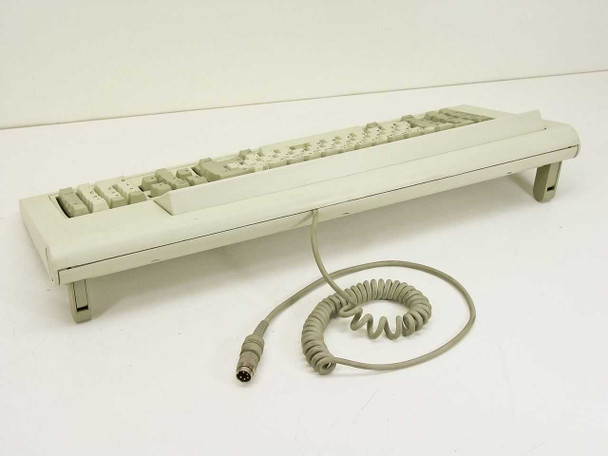

The IBM 1389160 is a 122-key Model M terminal keyboard built for IBM's 3270 and 5250 series terminal systems. It uses IBM's legendary buckling spring switch mechanism, which produces the distinctive tactile bump and audible click that Model M keyboards are known for. The keyboard connects via a 5-pin DIN coiled cable and includes an 8-position DIP switch bank on the underside for terminal configuration.
Specifications & What's Included
- Part Number: 1389160
- Key count: 122 keys
- Switch type: Buckling spring (mechanical)

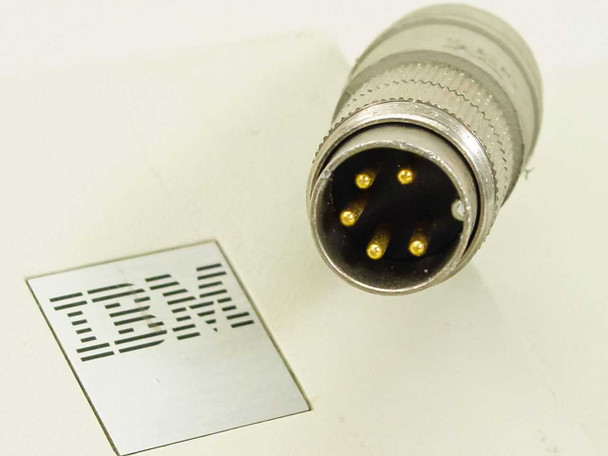

- Connector: 5-pin DIN with coiled cable

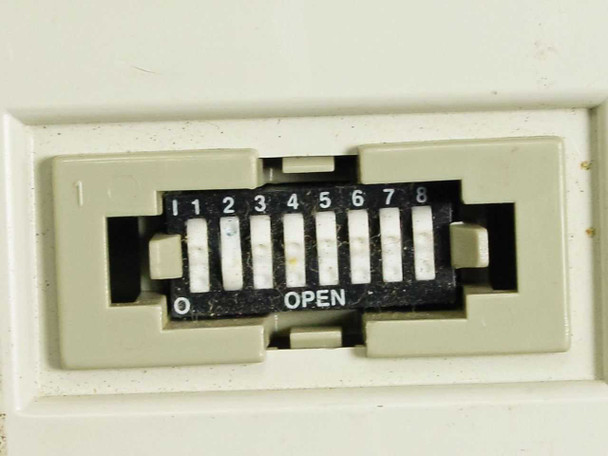

- Configuration: 8-position DIP switch bank on underside

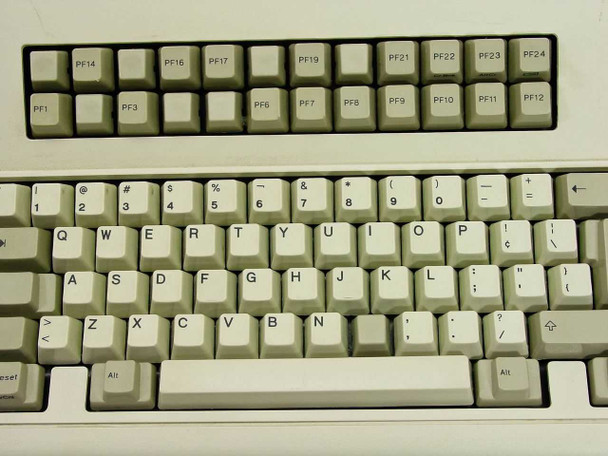

- Key layout: QWERTY main section with dedicated PF1–PF24 function key row across the top
- Color: Beige / putty
- Manufacture date: July 1985 (read from bottom label)
- Keyboard only — no manual, terminal, or peripherals included
Applications
The IBM Model M 122-key terminal keyboard was designed for use with IBM's 3270 and 5250 family of display terminals, which were the standard workstation interface for IBM mainframe (System/370, 3090) and IBM midrange systems (AS/400, System/36, System/38) from the mid-1980s onward. The 122-key layout — distinguished from the more common 101/104-key PC keyboard by its double row of 24 programmable function keys — was purpose-built for data entry operators running host-based applications where PF keys mapped to specific application functions. Today these keyboards are sought after by collectors of vintage IBM hardware, by enthusiasts who prize the buckling spring mechanism's typing feel, and by legacy operations still running terminal emulation software (such as IBM Personal Communications or TN3270 emulators) that can map the PF key layout. The 5-pin DIN connector was IBM's standard terminal keyboard interface during this era, predating the PS/2 connector that would follow in the late 1980s.

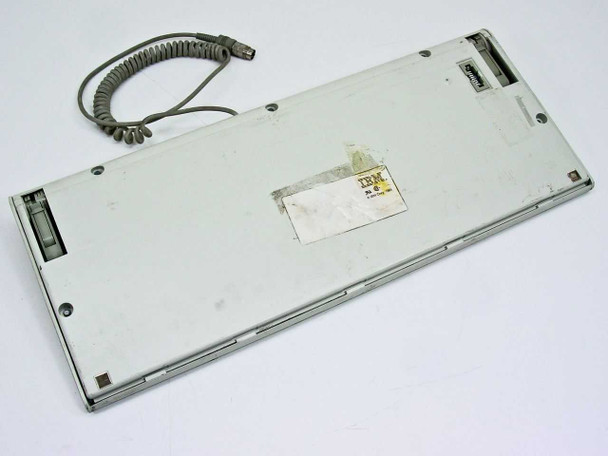

This IBM 1389160 Model M 122-Key Terminal Keyboard is being sold AS-IS because it requires a compatible IBM terminal system to test — hardware we do not have on hand. It came out of a working environment and appears to be in good physical condition, though we have not been able to power or test it at our facility. The underside shows some grime and wear consistent with age and use; the keycaps and case are otherwise intact. No manual or peripherals are included — keyboard only. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
1389160 |
MPN: |
1389160 |
Type: |
122-Key Terminal Keyboard |
SKU: |
16176 |
Keyboard Switch Type: |
Buckling Spring |
Number of Keys: |
122 |
Connector Type: |
5-Pin DIN |
Cable Type: |
Coiled |
Keyboard Layout: |
QWERTY with PF1–PF24 Function Key Row |
Compatible With: |
IBM 3270/5250 terminal systems and compatible hosts |
DIP Switches: |
8-position DIP switch bank (configuration switches) |
Manufacture Date: |
July 1985 |
Color: |
Beige / Putty |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Keyboard only — no terminal, manual, or peripherals included. |
Condition Notes: |
This IBM 1389160 Model M 122-Key Terminal Keyboard is sold AS-IS — untested, as it requires a compatible terminal we don't have. Came from a working environment; physically intact but not tested. Keyboard only, no peripherals. |
