Description
IBM 07N6709 Deskstar 61.5GB 3.5" ATA/IDE Hard Drive 7200RPM IC35L060AVER07
The IBM 07N6709 is a 3.5-inch Deskstar series ATA/IDE hard drive with a 61.5GB capacity and 7200RPM spindle speed. It uses a standard 40-pin IDE (PATA) interface and 4-pin Molex power connector, making it a direct-fit replacement for desktop systems built around the ATA/IDE standard.
Specifications & What's Included
- Brand: IBM
- Series: Deskstar
- Part Number: 07N6709
- Model: IC35L060AVER07-0
- MLC: H32368
- Capacity: 61.5 GB
- Interface: ATA/IDE (PATA) — 40-pin connector
- Form Factor: 3.5-inch
- Spindle Speed: 7200 RPM
- LBA Sectors: 120,103,200
- CHS: 16383/16/63
- Power: 5V 300mA, 12V 500mA DC

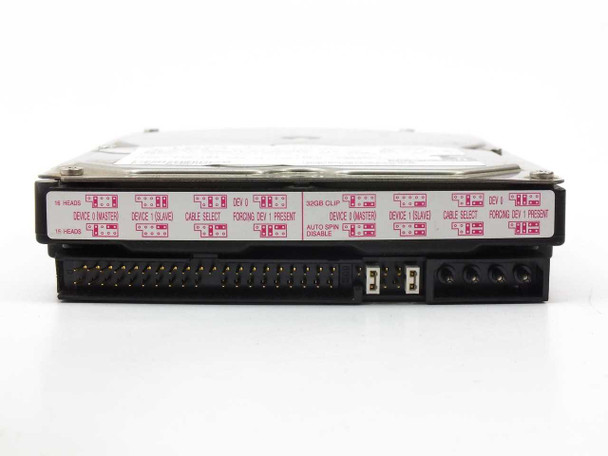

- Connectors: 40-pin IDE data, 4-pin Molex power

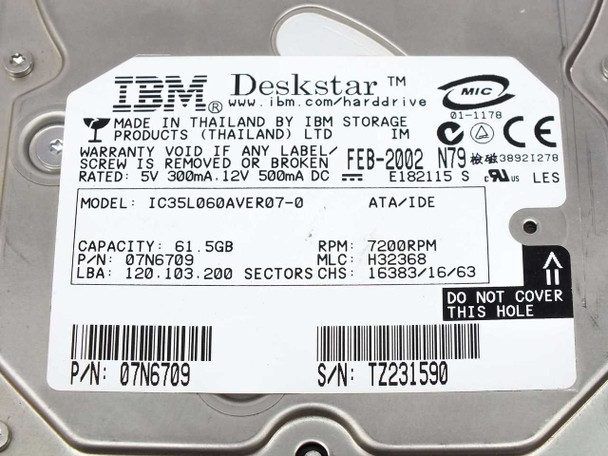

- Jumper block with Master/Slave/Cable Select configuration diagram printed on label
- Manufactured: February 2002, Thailand
- Drive only — no cables or mounting hardware included
Applications
The IBM Deskstar line was one of the leading ATA/IDE desktop hard drives of the late 1990s and early 2000s, widely used in consumer and business desktop PCs of that era. This drive is compatible with any system that supports ATA/IDE (PATA) — including many Pentium III, Pentium 4, and early Athlon-era desktop motherboards from that period. It remains useful today for restoring or maintaining legacy desktop computers, period-correct PC builds, retro gaming systems, and older workstations that require a standard 3.5-inch IDE drive. The 7200RPM spin speed was a step up from the 5400RPM drives common at the time, offering better throughput for its era. Jumper settings for Master, Slave, Cable Select, and Auto Spin Disable are printed directly on the drive label for easy configuration.
This IBM Deskstar 07N6709 61.5GB ATA/IDE hard drive has been inspected, cleaned, tested, formatted, and wiped, and is in good working condition. All previous data has been securely erased. The label is clean and fully intact, and the drive shows only light handling wear typical of a used unit. The 40-pin IDE connector and Molex power connector are in good shape with no bent pins. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IBM |
Model: |
07N6709 |
Secondary Model: |
IC35L060AVER07-0 |
MPN: |
07N6709 |
SKU: |
48794 |
Type: |
Internal Hard Drive (HDD) |
Series: |
Deskstar |
Capacity: |
61.5 GB |
Interface: |
ATA/IDE (PATA) |
Form Factor: |
3.5" |
RPM: |
7200 RPM |
MLC: |
H32368 |
LBA Sectors: |
120,103,200 |
CHS: |
16383/16/63 |
Power Requirements: |
5V 300mA, 12V 500mA DC |
Country/Region of Manufacture: |
Thailand |
Manufacture Date: |
February 2002 |
Connector Type: |
40-pin IDE / 4-pin Molex power |
Compatible With: |
Desktop PCs with ATA/IDE interface |
Seller Notes: |
Drive only; no cables or mounting hardware included. |
Condition Notes: |
This IBM Deskstar 07N6709 61.5GB ATA/IDE hard drive has been inspected, cleaned, tested, formatted, and wiped. It is in good working condition. All previous data has been securely erased. |
