HPS NMF025LE Single Phase Dry Type Transformer 25KVA 240x480V 120/240V 60Hz
The Hammond Power Solutions (HPS) NMF025LE is a 25 kVA single phase dry type distribution transformer designed to step down primary voltage (240x480V) to a standard 120/240V secondary for commercial and industrial power distribution applications. It features aluminum windings, a Class H (220°C) temperature rating, and meets TP-1 energy efficiency requirements. The unit is housed in a NEMA 3R steel enclosure and is UL Listed and CSA certified.
Specifications & What's Included
- Manufacturer: Hammond Power Solutions, Inc. (HPS)
- Catalog Number: NMF025LE
- Power Rating: 25 kVA
- Phase: Single Phase
- Primary Voltage: 240x480V (multi-tap)
- Secondary Voltage: 120/240V
- Frequency: 60 Hz
- Temperature Class: 220°C (Class H insulation)
- Winding Material: Aluminum
- Enclosure Type: NEMA 3R
- Efficiency: Meets TP-1 requirements
- Certifications: UL Listed, CSA
- Country of Manufacture: Mexico

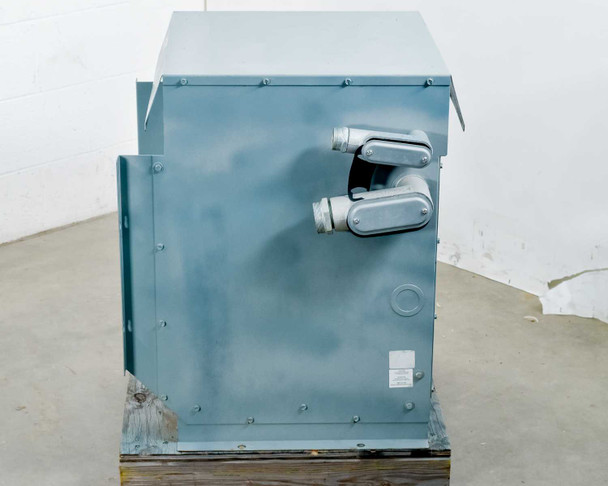

- Conduit hubs (two aluminum conduit elbows) installed on enclosure
- Unit ships on wooden pallet
Applications

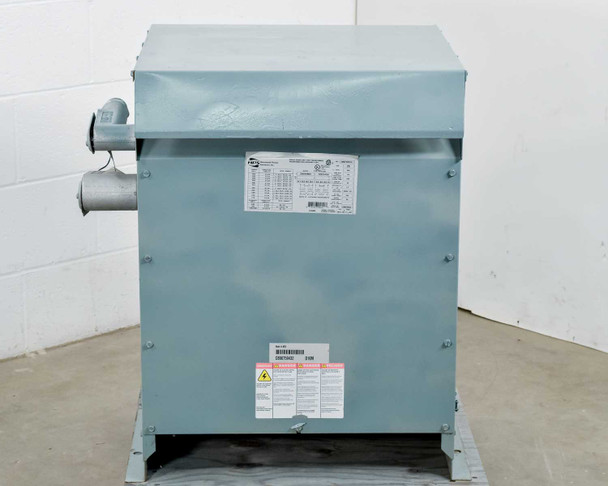

Single phase dry type distribution transformers like the HPS NMF025LE are standard equipment in commercial and light industrial electrical systems. They are commonly used to supply branch panels, machinery, HVAC equipment, and lighting circuits where a locally derived 120/240V single phase source is needed from a higher-voltage distribution feed. The multi-tap primary (with taps from 216V to 504V as shown on the nameplate) allows the transformer to be adapted to a range of available primary voltages on site. The NEMA 3R enclosure makes it suitable for both indoor and outdoor installations where protection from rain and sleet is required. Dry type construction — meaning the core and coils are air-cooled rather than oil-immersed — eliminates the need for containment pans and simplifies installation and maintenance. Transformers of this type and rating are routinely installed in manufacturing facilities, commercial buildings, pump stations, and utility service applications.

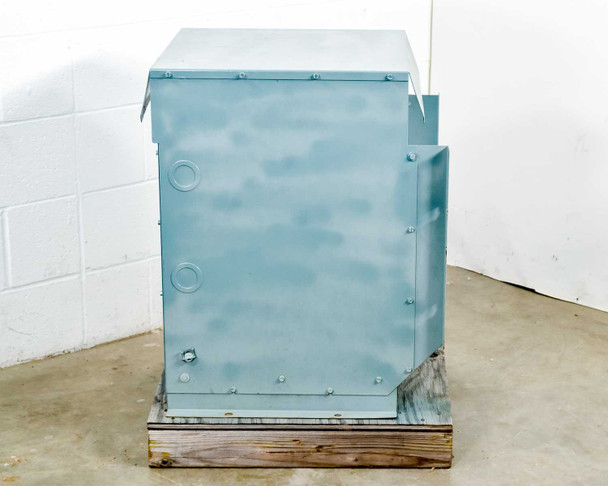

This Hammond Power Solutions (HPS) NMF025LE 25KVA Single Phase Dry Type Transformer has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The blue-gray steel enclosure shows light surface marks and minor scuffs consistent with typical industrial use, but there is no significant damage or rust. The conduit hubs are installed and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hammond Power Solutions (HPS) |
Model: |
NMF025LE |
MPN: |
NMF025LE |
SKU: |
52870 |
Type: |
Single Phase Dry Type Distribution Transformer |
Power Rating: |
25 kVA |
Primary Voltage: |
240x480V |
Secondary Voltage: |
120/240V |
Phase: |
Single Phase |
Frequency: |
60 Hz |
Temperature Class: |
220°C |
Insulation Class: |
220 (Class H) |
Enclosure Type: |
NEMA 3R |
Winding Material: |
Aluminum |
Efficiency: |
Meets TP-1 Efficiency Requirements |
Country/Region of Manufacture: |
Mexico |
Certifications: |
UL Listed, CSA |
Conduit Entries: |
Two conduit hubs (primary and secondary side) |
Seller Notes: |
Transformer only on pallet; conduit hubs installed. No additional cables or hardware included. |
Condition Notes: |
This HPS NMF025LE 25KVA Single Phase Dry Type Transformer has been inspected and is in good used condition. Pulled from a working environment. Enclosure shows light surface marks typical of industrial use. Conduit hubs installed and intact. |
