HP J2602A AdvanceStack 48-Port 10Base-T Ethernet Hub w/ 4x J2605A RJ-45 Adapters

HP J2602A AdvanceStack 48-Port 10Base-T Ethernet Hub w/ 4x J2605A RJ-45 Adapters

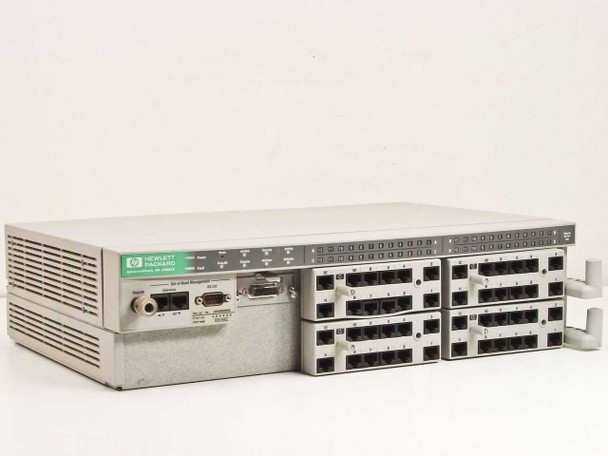

The HP J2602A is a modular 48-port 10Base-T Ethernet hub from Hewlett-Packard's AdvanceStack networking line. It accommodates up to four J2605A 12-Port Modulator Adapters (all four included) to deliver a total of 48 RJ-45 Ethernet ports in a single rackmount chassis. The hub features an out-of-band management section on the front-left panel with RS-232 (DB-9) console, AUI (DB-15), and ThinLAN (BNC) connections for network management access independent of the data ports. Internal processing is handled by an Intel i960 controller on the main PCB.

Specifications & What's Included

• Model: HP J2602A AdvanceStack Ethernet 48-Port Hub
• Series: HP AdvanceStack
• Total ports: 48 × RJ-45 (10Base-T / 10 Mbps Ethernet)
• Port modules: 4 × HP J2605A 12-Port RJ-45 Modulator Adapters (included)

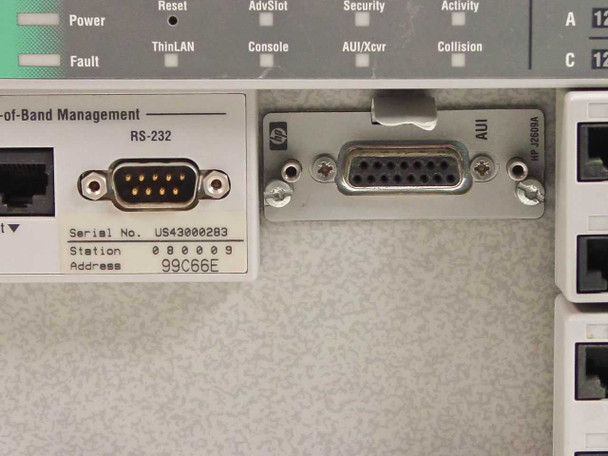

• Out-of-band management interfaces: RS-232 DB-9 console, AUI DB-15, ThinLAN BNC (in/out)

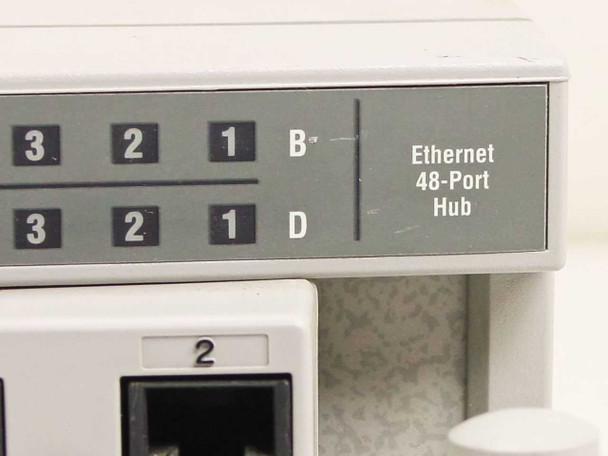

• Front-panel LEDs: Power, Fault, Reset, ThinLAN, AdvSlot, Console, Security, AUI/Xcvr, Activity, Collision
• Internal controller: Intel i960 processor with VLSI support chipset

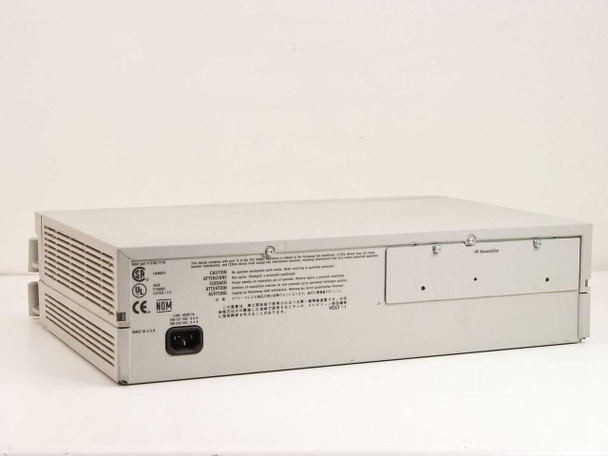

• Power input: 100–127 VAC @ 0.8 A / 200–240 VAC @ 0.4 A, 50/60 Hz
• Power connector: IEC C14 (standard 3-prong)
• Certifications: CSA (LR50013), UL Listed (E148052), CE, NOM
• Country of manufacture: United States
• Form factor: Rackmount (2U approximately)

Applications

The HP AdvanceStack J2602A is a mid-1990s 10Base-T Ethernet hub designed for departmental and campus LAN deployments during the era when shared 10 Mbps Ethernet was the standard for office and institutional networking. Hubs like the J2602A provide shared 10Base-T connectivity across all ports, making them suited for small legacy network segments, test lab environments, and educational setups where shared bandwidth is acceptable. The modular J2605A adapter design allowed network administrators to configure port counts in 12-port increments, and the built-in out-of-band management via RS-232 and AUI gave administrators direct console access for diagnostics and configuration without depending on the data network. Today these units are used primarily in vintage network labs, equipment testing, and legacy system integration, as well as by collectors of 1990s HP AdvanceStack networking gear.
