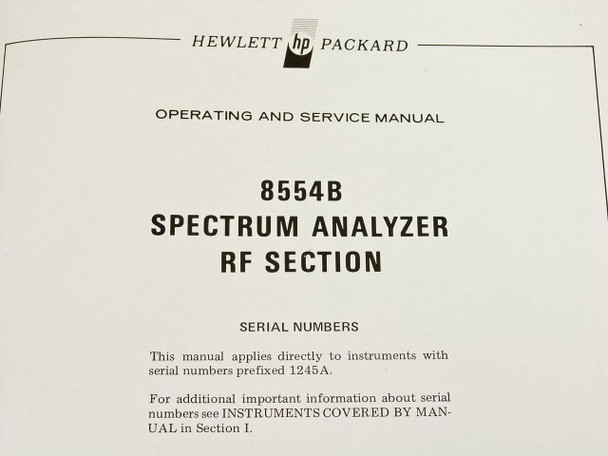

This is the original Hewlett-Packard Operating and Service Manual for the HP 8554B Spectrum Analyzer RF Section, HP Part No. 08554-90035. It covers instruments with serial numbers prefixed 1245A. The manual covers both operating procedures and full service/maintenance information for the RF section of the 8554B plug-in.

Specifications & What's Included

• Document type: Operating and Service Manual
• For instrument: HP 8554B Spectrum Analyzer RF Section
• HP Part No.: 08554-90035
• Serial number coverage: Instruments with SN prefix 1245A (see Section I for full coverage details)
• Publisher: Hewlett-Packard (Hewlett Packard)
• Language: English
• Format: Printed hard copy, three-hole punched
• Content includes: operational adjustments, amplitude calibration procedures, calibration signal waveform references, and service/maintenance sections

Applications

The HP 8554B is an RF plug-in section for the HP 141T Spectrum Analyzer display mainframe, part of Hewlett-Packard's highly regarded 140-series modular spectrum analyzer system from the 1960s and 1970s. The 8554B plug-in covered the frequency range of approximately 100 kHz to 1.25 GHz, making it a general-purpose RF measurement plug-in widely used in laboratory, military, and telecommunications environments. This Operating and Service Manual is an essential reference for technicians maintaining, calibrating, or repairing 8554B RF section plug-ins still in service today. Buyers typically include vintage test equipment collectors, HP 141T system owners, and engineers maintaining legacy RF lab setups who need the original HP documentation to match their specific serial-number range instrument.
