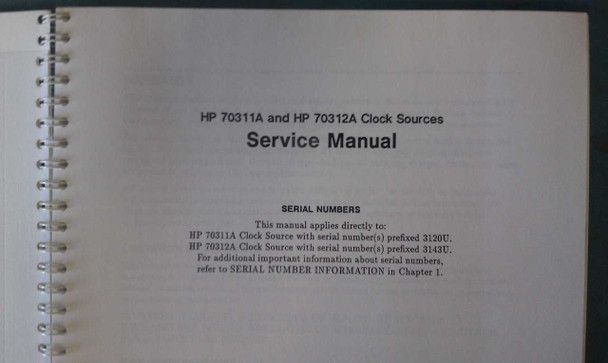

This is the original Hewlett-Packard service manual for the HP 70311A and HP 70312A Clock Sources, published in June 1992. HP part number 70311-90001, with corresponding microfiche part number 70311-90026. The manual was printed in the United Kingdom and applies directly to HP 70311A Clock Sources with serial number prefix 3120U and HP 70312A Clock Sources with serial number prefix 3143U and above.

Specifications & What's Included

• Publisher: Hewlett-Packard (Hewlett Packard Limited, Components and Measurements Division)

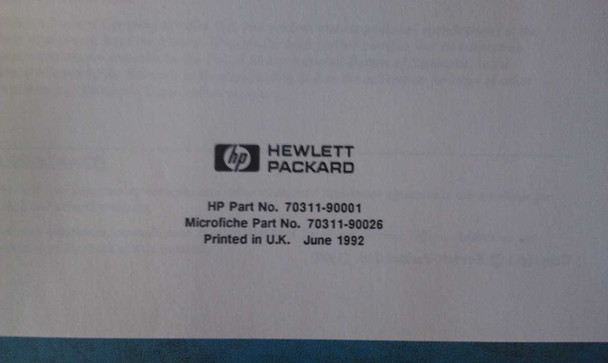

• HP Part Number: 70311-90001
• Microfiche Part Number: 70311-90026
• Applies to: HP 70311A Clock Source (SN prefix 3120U+) and HP 70312A Clock Source (SN prefix 3143U+)
• Publication date: June 1992
• Country of printing: United Kingdom
• Format: Spiral-bound, printed
• Language: English

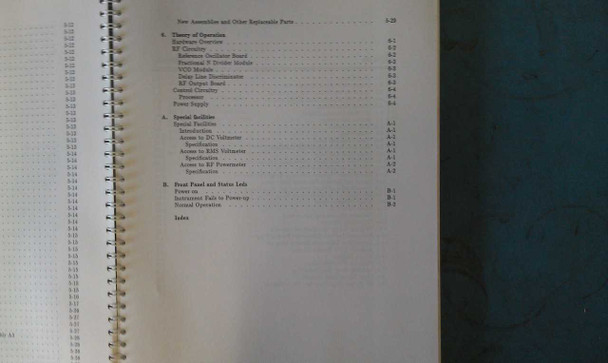

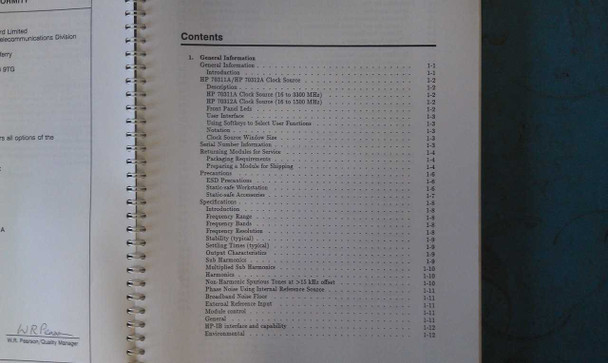

• Chapters covered: General Information, Installation, Performance Tests, Adjustments, Troubleshooting, Theory of Operation, Special Facilities, Front Panel & Status LEDs, Replaceable Parts

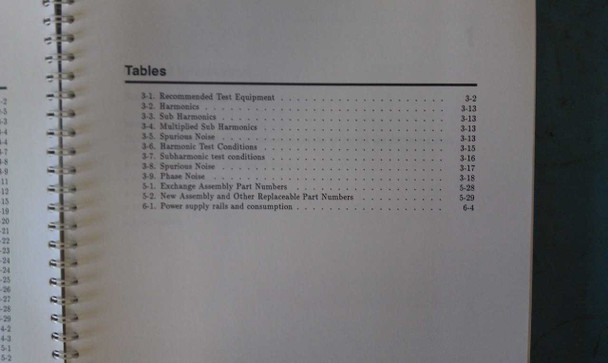

• Includes: Figures list (circuit diagrams, calibration hookup diagrams, block diagrams, frequency/range specification charts) and Tables list
• Calibration topics: Reference oscillator calibration, output level calibration, remote calibration, carrier frequency accuracy
• Troubleshooting topics: Power supply, display, output power/frequency, external reference, instrument power-up troubleshooting, VCO/YIG diagnostics
• Theory of Operation topics: Reference oscillator board, YIG oscillator module, VCO module, driver load transformer, output level circuitry, control circuitry, power supply
