HP 5528A Laser Measurement System

$10,000.00
(No reviews yet) Write a Review
SKU:
42603
Condition:
Used
HP 5528A  Laser Measurement System

Out of stock

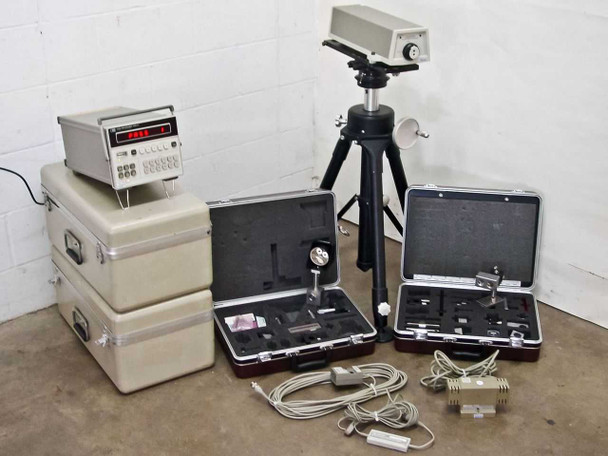

HP 5528A Laser Measurement System (does NOT include cable connecting Laser-to-Measurement Display):

  • HP 5518A Laser Head
  • HP 5508A Measurement Display
  • HP 5528A Case of System Optics Linear, Angular, Flatness
  • HP 5528A Case of System Optics Straightness, Squareness
  • HP 05508-60021Remote Control
  • HP 10757A Material Temperature Sensor
  • HP 10751A Air Sensor
  • HP 10753A Laser Tripod Stand

    Optics & Related Accessories:

  • HP 10772-67001 Turning Mirror Mount Assy (1 ea.)
  • HP 10766A Linear Interferometer (1 ea.)
  • HP 10772-67002 Turning Mirror (1 ea.)
  • HP 10767A Linear Retroreflector (2 ea.)
  • HP10770A Angular Interferometer (1 ea.)
  • HP 10771A Angular Reflector (1 ea.)
  • HP 10785A Height Adjuster (3 ea.)
  • HP 10784A Base (2 ea.)
  • Staging Plate - 2 X 3 (2 ea.)
  • Staging Plate - 2 X 2.5 (1 ea.)
  • Staging Extensions - 4.25 X .5 male thread on one end, female thread on opposite end (3 ea.)
  • Staging Plate - 3.5 X .6 (1 ea.)
  • Staging Extension - 4.875 X .375 (1 ea.)
  • Staging Extension - 2.5 X .6 (1 ea.)
  • HP 10774A S.R. Straightness Reflector (1 ea.)
  • HP 10776-67002 Str. Reflector Mount Assy (1 ea.)
  • HP 10774A Gear Assy for Str. Reflector (1 ea.)
  • HP 10776-67001 Str. Retroreflector (1 ea.)

  • NOTE: Unit is compatible with the HP 7440A ColorPro Pen Plotter; please ask for availability.
