Honeywell

Honeywell BO1810 BTRM/26A-001 Green Phosphor Display Terminal w/Keyboard 120V

(No reviews yet) Write a Review
SKU:
36456
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
50.00 LBS
Shipping:
Calculated at Checkout

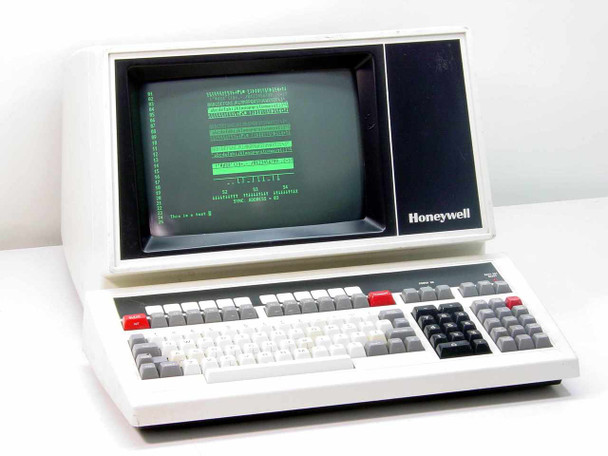

  • Honeywell BO1810 green phosphor CRT display terminal with integrated keyboard powered on, showing green text on screen — front three-quarter view
  • Honeywell BO1810 CRT screen close-up showing green phosphor character set test rows, sync address display, and 'This is a test.' prompt
  • Honeywell BO1810 keyboard close-up — QWERTY layout with function key row, red ALERT key, gray modifier keys, dark numeric keypad, and POWER ON indicator
  • Honeywell BO1810 underside label showing DWG/REV A notation and keyboard part label ti BKBDUS8A-001
  • Honeywell BO1810 rear view showing red rocker power switch, IEC 116V power inlet, ventilation grille, Honeywell branding, configuration switches, and attached DB25 cable
  • Honeywell BO1810 rear power section close-up — red rocker POWER switch (I/O) and IEC power connector labeled 116V
  • Honeywell BO1810 rear bottom panel showing unit label BCRU043A-002, S1 TEST/NORMAL switch, L1 indicator, and DIP switch banks S2, S3, S4
  • Honeywell BO1810 rear connector panel showing J1 KEYBOARD, J2 PRINTER, and J3 DATA SET — all DB25 connectors — with attached DB25 cable
  • Honeywell BO1810 rating plate: Index No. B01810, TI No. BTRM/26A-001, 1A, 120V, 60Hz, Single Phase — Honeywell Information Systems Inc., Vega Baja Puerto Rico, UL and CSA listed
$850.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Honeywell BO1810 BTRM/26A-001 Green Phosphor Display Terminal w/Keyboard 120V

The Honeywell BO1810 is a standalone green phosphor CRT display terminal produced by Honeywell Information Systems Inc. It combines a built-in monochrome monitor and a full integrated keyboard in a single desktop unit, designed to connect to host computers or minicomputer systems via serial interfaces. The unit carries part number BTRM/26A-001 and was manufactured by Honeywell Information Systems Inc. in Vega Baja, Puerto Rico.

Specifications & What's Included

  • Model (Index No.): BO1810
  • Part No. (TI No.): BTRM/26A-001
  • Unit board part no.: BCRU043A-002
  • Display: Built-in green phosphor CRT monitor
  • Keyboard: Integrated full-size keyboard (BKBDUS8A-001) — QWERTY layout with function key row, red ALERT key, gray modifier keys, and dark numeric keypad
  • Rear connector J1 (KEYBOARD): DB25
  • Rear connector J2 (PRINTER): DB25
  • Rear connector J3 (DATA SET): DB25
  • Configuration switches: S1 (TEST/NORMAL toggle), DIP switch banks S2, S3, S4 on rear panel
  • Power: 120V AC, 60Hz, 1 Amp, Single Phase, 2-wire + Ground
  • Power entry: IEC inlet (116V labeled), red rocker ON/OFF switch on rear
  • Certifications: UL Listed, CSA
  • Manufacturer: Honeywell Information Systems Inc., Vega Baja, Puerto Rico
  • Includes: Integrated keyboard, attached DB25 cable (at J1 keyboard port)
  • No manual, documentation, or additional cables included

Applications

The Honeywell BO1810 is a classic dumb terminal from the late 1970s to mid-1980s era of centralized computing, when operators interacted with mainframes and minicomputers through dedicated display terminals rather than personal computers. Honeywell Information Systems produced a range of terminals and systems aimed at business data processing, including their Series 60/Level 6 and DPS (Distributed Processing System) minicomputer lines. A terminal like the BO1810 would have been connected to a host system via a serial data set (modem or direct-connect interface at J3), with a separate printer port (J2) allowing hardcopy output directly from the terminal session. The three-bank DIP switch configuration on the rear allowed operators or technicians to set communication parameters such as baud rate, parity, and protocol without software. Today these terminals are sought after by vintage computing enthusiasts, museum collectors, and organizations maintaining legacy Honeywell systems or period-accurate computer room setups.

Condition: Used
This Honeywell BO1810 Green Phosphor Display Terminal has not been powered up or tested at our facility, but it came out of a working environment where it was previously in use. The unit appears to be in good used condition overall. The housing shows minor scuffing and light surface wear typical of older equipment, and the keyboard keycaps show some yellowing consistent with age. The rear connector panel, DB25 ports, DIP switch banks, and power section all appear intact and undamaged. A DB25 cable is attached to the keyboard port. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Honeywell
Model:
BO1810
MPN:
BTRM/26A-001
Secondary Model:
BCRU043A-002
Type:
Green Phosphor CRT Display Terminal
SKU:
36456
Seller Notes:
Includes integrated keyboard and attached DB25 cable. No documentation included.
Country/Region of Manufacture:
Puerto Rico (USA)
Display Type:
Green Phosphor CRT
Power Requirements:
120V AC, 60Hz, 1A, Single Phase
Voltage:
120V
Frequency:
60 Hz
Current Rating:
1 Amp
Phase:
Single Phase
Keyboard:
Integrated — BKBDUS8A-001
Interface / Connector J1:
Keyboard — DB25
Interface / Connector J2:
Printer — DB25
Interface / Connector J3:
Data Set — DB25
Configuration Switches:
S1 Test/Normal; DIP banks S2, S3, S4
Certifications:
UL Listed, CSA
Form Factor:
Desktop
Manufacturer:
Honeywell Information Systems Inc.
Condition Notes:
This Honeywell BO1810 Green Phosphor Display Terminal has not been powered up or tested at our facility but came from a working environment. Housing shows minor scuffing and age-related yellowing on keycaps. Ports and switches intact.
