Description
Global Solar 22042A 42W Foldable CIGS 12V Military Solar Panel ETFE MIL-STD-810E
The Global Solar 22042A is a 42-watt foldable CIGS (Copper Indium Gallium Selenide) solar panel built for the US military's Portable Power Pack P3 program. It is a 12-volt nominal panel intended for field battery charging, housed in tough black rip-stop nylon with ETFE-encapsulated thin-film CIGS cells. This stock consists of new old stock units stored in conditioned storage since 2014 and are manufacturing seconds — they may show small cosmetic artifacts from the production process and years of storage handling.
⚠ Important Performance Notice: Our in-house testing has confirmed these panels output approximately 50% of their rated 42W capacity. Sun-soaking the CIGS cells for several days did not improve output in our testing. Please factor this into your purchase decision and contact us with any questions before buying.
Specifications & What's Included
- Model: Global Solar 22042A
- Rated Power: 42W
- System Voltage: 12V DC Nominal
- Nominal Voltage Range: 12–16V DC
- Rated Voltage at MPP: 16.4V DC at 25°C
- Rated Current (Imp): 2.5A at 25°C
- Short Circuit Current (Isc): 4.0A
- Open Circuit Voltage (Voc): 31V (Max. Design Voltage at 0°C)

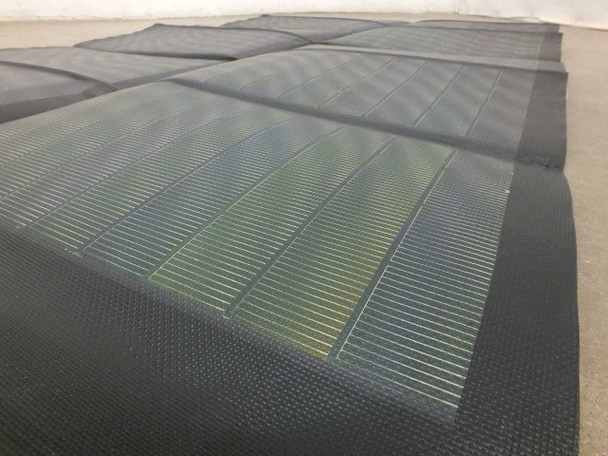

- Cell Technology: CIGS (Copper Indium Gallium Selenide) thin-film
- Encapsulation: ETFE over PET substrate

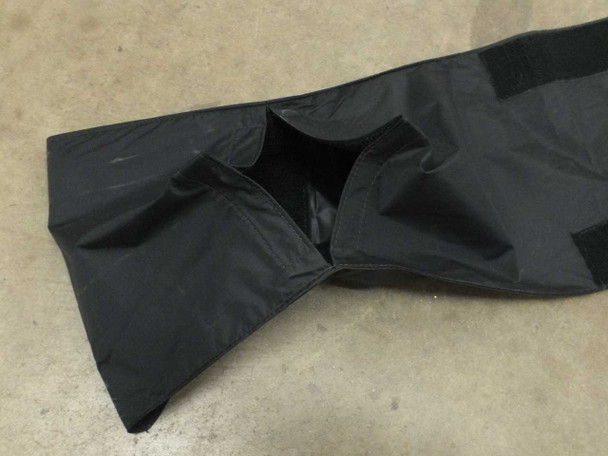

- Housing Material: Rip-stop nylon, black
- Connector: SAE (Exposed Terminal Negative)

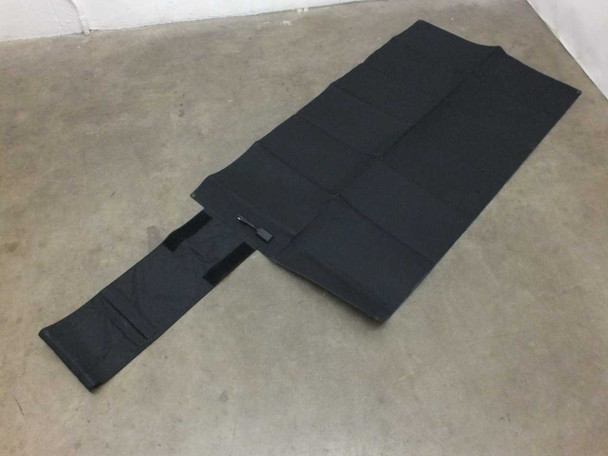

- Configuration: Multi-panel fold-out array
- Product Series: Portable Power Pack P3 (US Military)

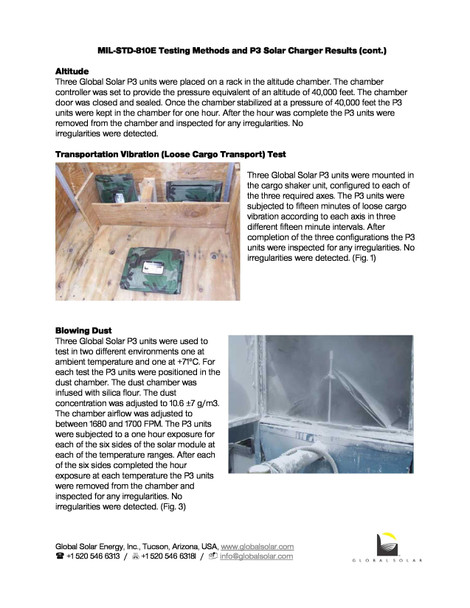

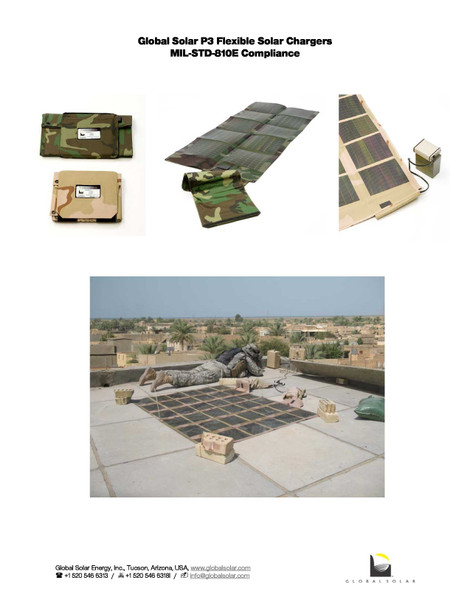

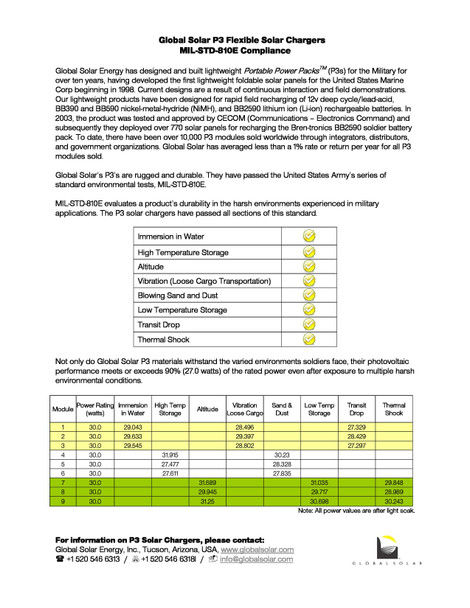

- Military Standard: MIL-STD-810E (P3 series design)
- Includes: Output cable with SAE connector
- Stock Status: New old stock, conditioned storage since 2014; manufacturing seconds
Applications
Global Solar's P3 Portable Power Pack panels were developed for the US military beginning in the late 1990s, originally for the Marine Corps, with subsequent adoption across other branches and government organizations. The P3 design targets rapid field recharging of 12-volt deep-cycle, NiMH, and lithium-ion rechargeable batteries — including BB390, BB590, and the Bren-tronics BB2590 soldier battery pack. The foldable form factor allows the panel to be carried in a pack and deployed quickly in the field. CIGS thin-film cells perform better than crystalline silicon under diffuse light conditions and at elevated temperatures, which makes them well suited for field environments. ETFE encapsulation adds durability and UV resistance compared to standard PET-only lamination. The P3 line is unregulated — it outputs directly to a battery without a built-in charge controller, so a separate controller is needed when charging batteries that require regulated voltage. These panels are also used for off-grid electronics charging, vehicle battery maintenance, and remote power applications.
This Global Solar 22042A 42W Foldable CIGS Military Solar Panel is new old stock that has been in conditioned storage since 2014. These panels are manufacturing seconds and may have small cosmetic artifacts from the production process and years of storage handling. Our in-house testing confirmed that the panels output approximately 50% of their rated 42W capacity straight out of the box. Sun-soaking the CIGS cells for several days did not improve output in our testing. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Specifications: |
|
Brand: |
Global Solar Energy |
Model: |
22042A |
MPN: |
22042A |
Type: |
Foldable CIGS Solar Panel |
SKU: |
51574 |
Wattage: |
42W |
Cell Technology: |
CIGS (Copper Indium Gallium Selenide) |
System Voltage: |
12V DC Nominal |
Nominal Voltage Range: |
12–16V DC |
Rated Voltage at MPP: |
16.4V DC at 25°C |
Rated Current (Imp): |
2.5A at 25°C |
Short Circuit Current (Isc): |
4.0A |
Open Circuit Voltage (Voc): |
31V (Max. Design Voltage at 0°C) |
Encapsulation: |
ETFE over PET |
Frame / Housing Material: |
Rip-Stop Nylon |
Color: |
Black |
Connector Type: |
SAE (Exposed Terminal Negative) |
Configuration: |
Foldable / Portable |
Military Standard: |
MIL-STD-810E (P3 Series) |
Product Series: |
Portable Power Pack P3 |
Intended Application: |
12V Battery Charging, Military/Field Use |
Seller Notes: |
Includes output cable with SAE connector. NOS stored since 2014; in-house testing showed ~50% of rated output. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Foldable / Portable Panel |
Condition Notes: |
Global Solar 22042A 42W CIGS solar panel, NOS stored since 2014. Manufacturing seconds with possible cosmetic artifacts. In-house testing confirmed ~50% of rated 42W output; sun-soaking did not improve performance. Please contact us before buying. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
