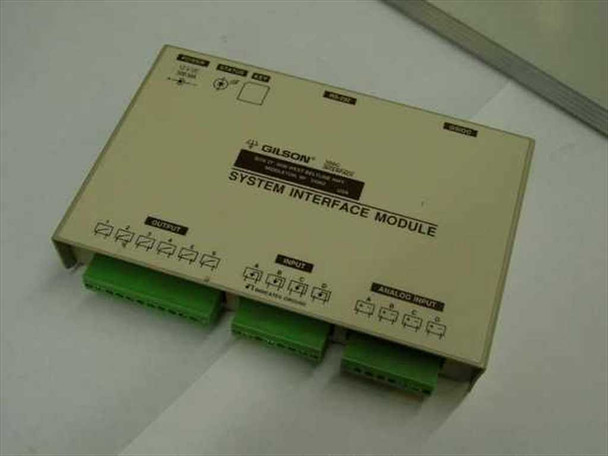

Gilson 506C System Interface Module RS-232 to GSIOC RS-422/485 No Key
The Gilson 506C System Interface Module connects a host computer to Gilson laboratory instruments via the Gilson Serial Input/Output Channel (GSIOC). It performs bidirectional signal conversion between the RS-232 levels used by computers and the RS-422/485 levels required by GSIOC, enabling coordinated control of multiple Gilson devices from a single workstation. The security key required to operate most Gilson software is not included with this unit.
Specifications & What's Included
- Manufacturer: Gilson, Middleton, WI, USA
- Model: 506C System Interface Module
- Signal conversion: RS-232 (computer side) ↔ RS-422/485 GSIOC (instrument side)
- Contact inputs: 4
- Contact outputs: 6
- Analog data inputs: 4 channels (A, B, C, D) — range −100 mV to +1.0 V
- Power: 12V DC, 500 mA (via rear DC jack)
- Front panel indicators: POWER, STATUS, KEY socket
- RS-232 connector: DB-9 (side panel)
- GSIOC connector: DB-25 (side panel)
- I/O terminations: Screw terminal blocks (green) — OUTPUT ×6, INPUT ×4, ANALOG INPUT ×4
- Security key socket: Present and accessible, but key is NOT included
- Form factor: Benchtop desktop module
- What's included: 506C module only — no security key, no cables, no software
Applications
The Gilson 506C was designed as the central communications hub in a Gilson HPLC or liquid-handling system, bridging a PC running Gilson control software (such as Unipoint or 712) to instruments like pumps, UV detectors, fraction collectors, and autosamplers — all of which communicate over GSIOC. The four analog inputs allow the computer to read voltage signals from detectors or monitors outputting in the −100 mV to +1.0 V range, while the six contact outputs let software trigger or control relay-based instruments that do not have native GSIOC capability. The 506C dates from Gilson's late-1980s through 1990s instrument lineup, during which GSIOC became the standard communication protocol across Gilson's analytical instrument family. These modules are still actively sought by labs maintaining legacy Gilson HPLC systems, as the 506C remains the required interface for running older Gilson instruments under PC control. It is also used in research and teaching labs that rely on established, proven Gilson setups and need a replacement or spare interface unit.
This Gilson 506C System Interface Module has been inspected and appears to be in good used condition. The security key required to operate most Gilson software is not included — the key socket on the front panel is present but empty, as noted in the listing title. The unit shows normal wear consistent with prior lab use. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Gilson |
Model: |
506C |
MPN: |
506C |
Type: |
System Interface Module |
SKU: |
17100 |
Interface Type: |
RS-232 to RS-422/485 (GSIOC) |
Protocol: |
GSIOC (Gilson Serial Input/Output Channel) |
Contact Outputs: |
6 |
Contact Inputs: |
4 |
Analog Data Inputs: |
4 (−100 mV to +1.0 V range) |
Power Requirements: |
12V DC, 500 mA |
Connectors: |
DB-9 RS-232, DB-25 GSIOC, screw terminal I/O blocks |
Form Factor: |
Benchtop / Desktop Module |
Compatible With: |
Gilson HPLC, fraction collectors, detectors via GSIOC |
Security Key: |
Not included (socket present) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Module only — security key not included. No cables or software. |
Condition Notes: |
This Gilson 506C System Interface Module is in good used condition. The security key is not included (socket present but empty). Shows normal lab wear. No cables or software included. Please contact us with any questions. |
