Description
Gardner Denver Elmo Rietschle VTN 15 Oilless Vacuum Pump 115V 20.5 m³/h
The Gardner Denver Elmo Rietschle VTN 15 is a compact, single-phase oilless (dry-running) rotary vane vacuum pump rated at 20.5 m³/h free-air displacement and an ultimate vacuum of 150 mbar absolute. Because it runs without oil, it produces clean, dry vacuum — no oil mist, no oil changes, and no contamination of the process gas. This unit was powered on at our facility and produced a strong vacuum, confirming it is in good working order.
Specifications & What's Included
- Manufacturer: Gardner Denver / Elmo Rietschle
- Model: VTN 15 (01)
- Part Number: 1022180131
- Pump Type: Oilless rotary vane vacuum pump
- Voltage: 115V AC ±10%
- Current: 9.00 A
- Power Output: 0.65 kW
- Phase: Single phase (1~)
- Frequency: 60 Hz
- Motor Speed: 1700 RPM
- Free-Air Displacement: 20.5 m³/h
- Ultimate Vacuum: 150 mbar (abs.)
- Insulation Class: F
- IP Rating: IP 55 (dust-tight, protected against water jets)
- Capacitor: 80 µF, cos φ 0.90
- Motor Standard: EN 60034
- Country of Manufacture: Germany (79650 Schopfheim)
- Top-mounted vacuum port fittings and exhaust port visible and intact
- Includes power cord; pump only — no additional accessories
Applications
Oilless rotary vane vacuum pumps like the Elmo Rietschle VTN series are used wherever a clean, dry vacuum source is needed without the risk of oil contamination. Common applications include laboratory vacuum lines, filtration, degassing, pick-and-place automation, packaging machinery, medical and dental equipment support, and analytical instrumentation. The VTN 15 is a benchtop-scale pump well suited to light industrial and laboratory settings. Its IP 55 rating makes it suitable for environments where dust or occasional water spray is present. The Elmo Rietschle brand is a longstanding German manufacturer of blowers and vacuum products, now part of the Gardner Denver group, and VTN-series pumps are known in lab and light industrial settings for reliable dry-running operation.

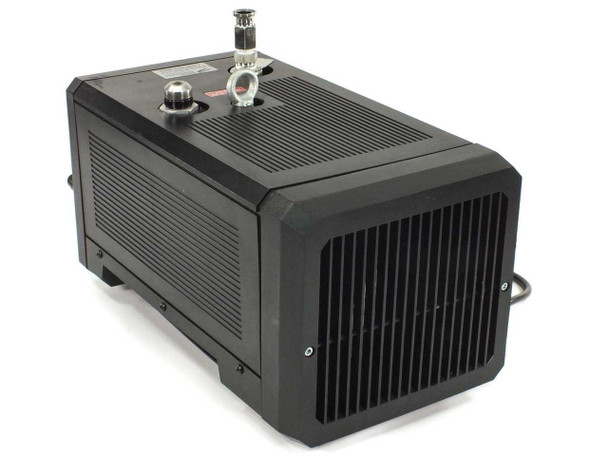

This Gardner Denver Elmo Rietschle VTN 15 Oilless Vacuum Pump was powered on at our facility and produced a strong vacuum — it is in good working order. The black housing shows normal wear consistent with prior use, including minor surface scuffs on the panels. The top port fittings, exhaust port, and fan grill are all present and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Gardner Denver |
Model: |
VTN 15 |
Secondary Model: |
VTN 15 (01) |
MPN: |
1022180131 |
SKU: |
51608 |
Type: |
Oilless Vacuum Pump |
Sub-Brand: |
Elmo Rietschle |
Voltage: |
115V AC ±10% |
Current: |
9.00 A |
Power Rating: |
0.65 kW |
Phase: |
Single Phase (1~) |
Frequency: |
60 Hz |
Motor Speed: |
1700 RPM |
Flow Rate: |
20.5 m³/h |
Ultimate Vacuum: |
150 mbar (abs.) |
Insulation Class: |
F |
IP Rating: |
IP 55 |
Capacitor: |
80 µF |
Power Factor: |
0.90 |
Motor Standard: |
EN 60034 |
Lubrication Type: |
Oilless / Oil-Free |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
Pump only — no additional accessories included. |
Condition Notes: |
This Gardner Denver Elmo Rietschle VTN 15 Oilless Vacuum Pump was powered on and produced a strong vacuum — in good working order. Housing shows normal wear. All ports and fittings intact. Please view photos and contact us with questions. |
