Description
FOR-A ENC-200 Color Encoder Analog RGB Y/Pr/Pb to Composite Video BNC Rackmount
The FOR-A ENC-200 is a rackmount broadcast color encoder. It takes analog RGB or Y/Pr/Pb component video and encodes it into a single composite video signal. Encoding of this kind modulates the color-difference information onto a subcarrier and combines it with luminance and sync. The existing product literature for the ENC-200 describes the use of a feed-forward comb filter in the encoding process, a design aimed at preserving vertical resolution when luminance and chrominance are combined. This unit carries the FOR-A Company Limited label, is marked Made in Japan, and has a rear panel of BNC connectors, an IEC AC inlet and a cooling fan.
Specifications & What's Included
- Manufacturer: FOR-A Company Limited (Japan)
- Model: ENC-200, labeled "Color Encoder" on the front panel
- Function: encodes analog RGB or Y/Pr/Pb component video to composite video
- Power rating (label): AC 100/117V, 50/60 Hz, 0.8 A

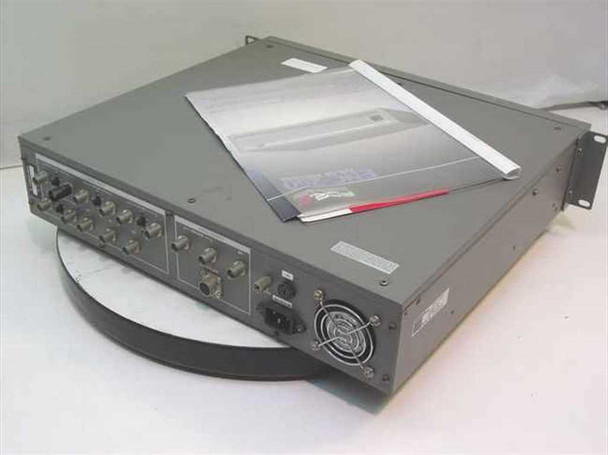

- Rear panel: multiple BNC connectors in grouped input and output sections
- Rear panel: a round multi-pin connector (type not identified from the photos)
- Rear panel: IEC AC power inlet
- Rear panel: fan with guard for chassis cooling

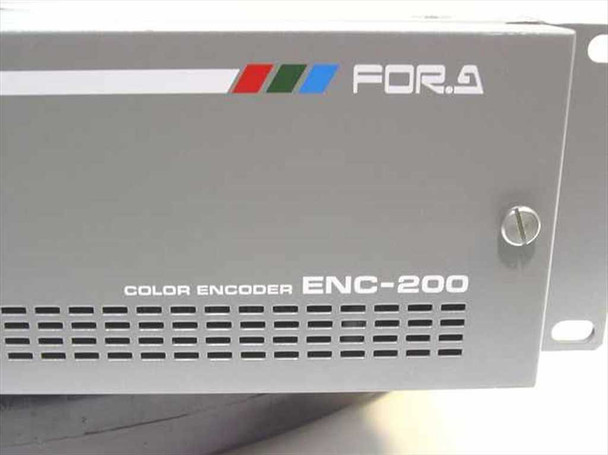

- Front panel: illuminated ON/OFF rocker power switch with green ON indicator
- Front panel: ventilation slots and a captive slotted-head fastener
- Form factor: rack-mount chassis with front rack ears
- Included: FOR-A operation manual
Applications
The ENC-200 is a component-to-composite video encoder for analog standard-definition broadcast and production signal chains. It is used where RGB or Y/Pr/Pb sources must feed composite-only equipment.
- Industries & settings: broadcast facilities, post-production suites, video studios and equipment racks with mixed component and composite signal paths.
- Typical applications: converting RGB or Y/Pr/Pb output from graphics systems, switchers or cameras to composite video for monitoring, recording and distribution.
- Compatible systems: composite video equipment with BNC connections, including composite monitors, VTRs, routing switchers and distribution amplifiers.
This FOR-A ENC-200 rackmount color encoder was pulled from a working environment. The chassis looks good in the photos, with a clean front panel, intact rack ears and a working-looking power switch assembly. The operation manual shown with the unit is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
Brand: |
FOR-A |
Model: |
ENC-200 |
MPN: |
ENC-200 |
Type: |
Broadcast Color Encoder |
SKU: |
21959 |
Seller Notes: |
Includes operation manual |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Pulled from Working Environment |
Form Factor: |
Rack Mount |
Input Signal: |
Analog RGB or Y/Pr/Pb component video |
Output Signal: |
Composite video |
Connector Type: |
BNC |
Power Requirements: |
AC 100/117V, 50/60Hz, 0.8A |
Voltage Rating: |
100/117V AC |
Current Rating: |
0.8A |
Frequency: |
50/60Hz |
AC Inlet: |
IEC |
Manufacturer: |
FOR-A Company Limited |
Application: |
Broadcast / professional video signal conversion |
Condition Notes: |
FOR-A ENC-200 rackmount color encoder, used, pulled from a working environment. Chassis looks good in the photos. Operation manual included. |
