Extended Systems ESI-PRT707A Port Replicator Toshiba Tecra 500/700 VGA Serial
The Extended Systems ESI-PRT707A is a desktop port replicator designed specifically for Toshiba Tecra 500 and 700 series laptops. It connects via a proprietary high-density docking connector and expands the laptop's connectivity to include a full complement of desktop peripherals in a single dock. Manufactured by EASi under the Extended Systems brand.
Specifications & What's Included
- Brand: Extended Systems (manufactured by EASi)
- Model: ESI-PRT707A (ESIPRT707A)
- Compatible with: Toshiba Tecra 500 series and Tecra 700 series laptops

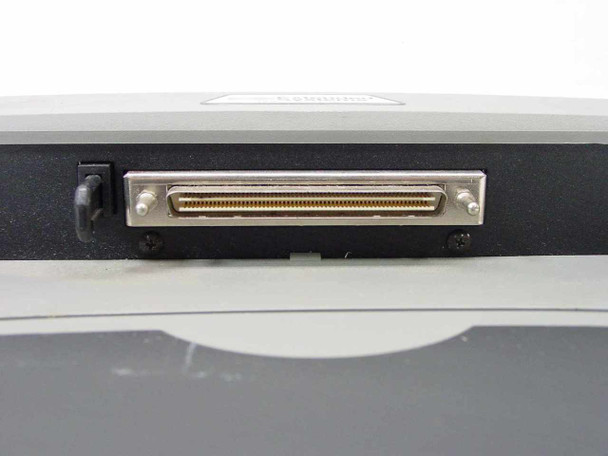

- Docking interface: Proprietary Toshiba high-density connector
- Video output: VGA (DB-15)
- Serial port: DB-9
- Parallel port: DB-25
- S-Video output port
- PS/2 ports: 2× (keyboard and mouse)
- Audio ports: headphone and microphone jacks
- DC power input jack

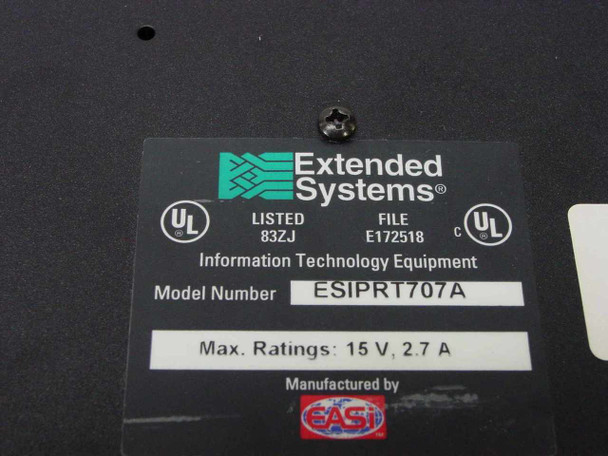

- Power requirements: 15V, 2.7A maximum

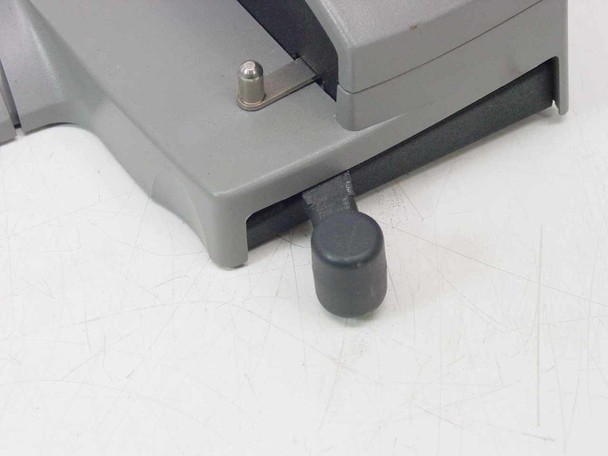

- Locking lever to secure the laptop in the cradle
- UL Listed: File E172518, Listing 83ZJ
- Includes: Port replicator only — no AC adapter or cables
Applications
Port replicators like the ESI-PRT707A were designed to let laptop users instantly connect to a full set of desktop peripherals — monitor, printer, mouse, keyboard, and speakers — by docking the laptop onto a single base unit rather than plugging in each cable individually. The Tecra 500 and 700 series were Toshiba's business-class laptops of the mid-to-late 1990s, and Extended Systems produced this replicator specifically for their proprietary docking interface. Today these units are sought after by users maintaining or restoring Tecra 500/700-era systems, as well as by collectors of 1990s business computing equipment. The rear I/O bar provides the legacy serial, parallel, and PS/2 connections that these laptops' native ports expose through the dock, making it a practical solution for anyone running a Tecra in a desktop-style setup.
This Extended Systems ESI-PRT707A Port Replicator for the Toshiba Tecra 500/700 series has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The gray plastic housing shows normal wear consistent with prior use, and the docking connector and rear I/O ports appear clean and undamaged. No AC adapter or cables are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Extended Systems |
Model: |
ESI-PRT707A |
MPN: |
ESIPRT707A |
SKU: |
8732 |
Type: |
Port Replicator / Docking Station |
Compatible With: |
Toshiba Tecra 500 Series |
Compatible With 2: |
Toshiba Tecra 700 Series |
Connector Type: |
Proprietary Toshiba high-density docking connector |
Ports Included: |
VGA, DB-9 Serial, Parallel (DB-25), S-Video, PS/2 x2, Audio |
Power Requirements: |
15V, 2.7A |
Certifications: |
UL Listed (File E172518, 83ZJ) |
Manufactured By: |
EASi |
Form Factor: |
Desktop Port Replicator with Laptop Cradle |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Port replicator only — no AC adapter, no cables included |
Condition Notes: |
This Extended Systems ESI-PRT707A Port Replicator for Toshiba Tecra 500/700 has been inspected and is in good used condition. Pulled from a working environment. Normal cosmetic wear; ports appear clean. No AC adapter or cables included. |
