Everex EV-657 Micro Enhancer Deluxe RWB-00133-00 8-Bit ISA Video Card DB25 DB9

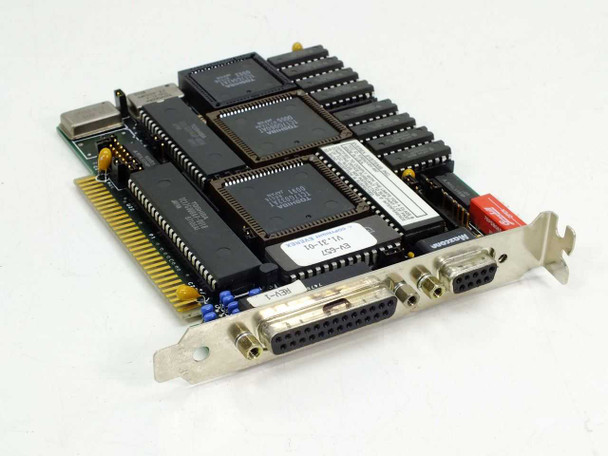

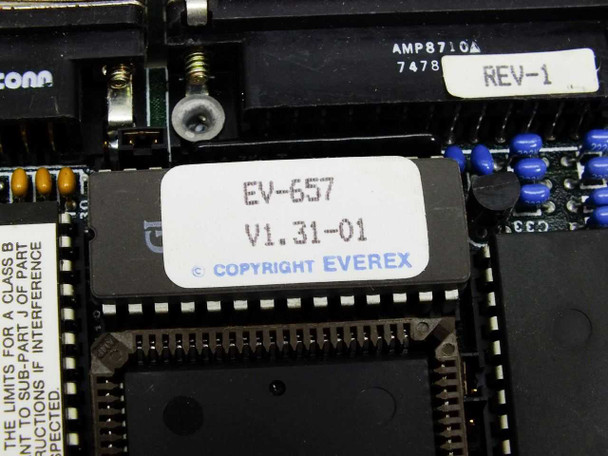

The Everex EV-657 Micro Enhancer Deluxe is an 8-bit ISA video and display enhancement card designed for IBM PC/XT/AT-compatible systems. It occupies a standard full-length 8-bit ISA slot and routes video output through a bracket-mounted DB25 and DB9 connector pair. The card carries firmware version V1.31-01 and board revision REV-1 as marked on the installed chip label.
Specifications & What's Included
- Manufacturer: Everex
- Model: EV-657 (Micro Enhancer Deluxe)
- Part Number: RWB-00133-00
- Bus Interface: 8-bit ISA (full-length)
- Bracket Connectors: DB25 (25-pin) and DB9 (9-pin)
- Firmware Version: V1.31-01
- Board Revision: REV-1
- Main ICs: Multiple Toshiba controller ICs (three large QFP/PLCC packages visible); DIP chip array across board
- Includes: Card only — no cables, drivers, or documentation
Applications
The Everex EV-657 Micro Enhancer Deluxe dates from the mid-to-late 1980s, the era when 8-bit ISA was the dominant expansion bus in IBM PC/XT and AT-compatible desktop computers. Video enhancer cards of this type were used to drive external monitors or video output devices via standard D-sub connectors, and were common in business and productivity environments running DOS-era software. The EV-657 is a sought-after legacy component for collectors and technicians restoring period-correct IBM PC/AT-class machines, and for anyone maintaining vintage DOS workstations that require original ISA video hardware. Its 8-bit ISA edge connector makes it compatible with the widest range of vintage PC/XT and AT motherboards.
This Everex EV-657 Micro Enhancer Deluxe 8-bit ISA video card has been inspected and appears to be in good used condition. It has not been powered up or tested at our facility. The board shows typical light wear consistent with previous use and age — no cracks, broken traces, or missing components are visible. The bracket and both connectors (DB25 and DB9) appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Everex |
Model: |
EV-657 |
MPN: |
RWB-00133-00 |
Secondary Model: |
RWB-00133-00 |
SKU: |
45765 |
Type: |
ISA Video / Graphics Card |
Bus Type: |
ISA (8-bit) |
Form Factor: |
ISA Full-Length Card |
Connector on Bracket: |
DB25 (25-pin) and DB9 (9-pin) |
Hardware Revision: |
REV-1 |
Firmware / BIOS Version: |
V1.31-01 |
Chipset: |
Toshiba (multiple ICs visible — part numbers not fully legible) |
Compatible With: |
IBM PC/XT/AT and compatibles with 8-bit ISA slot |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Card only — no cables, drivers, or documentation included. |
Condition Notes: |
Everex EV-657 Micro Enhancer Deluxe 8-bit ISA video card inspected and in good used condition. Not powered or tested at our facility. Board shows light wear; bracket and connectors appear intact. Please view photos and contact us with questions. |
