The Electronic Measurements Inc. (EMI) TCR 150S7-1-0386T-OV-LB is a variable regulated DC power supply capable of delivering a continuously adjustable output from 0 to 150 VDC at up to 7 amps, for a maximum of 1,000 watts. It accepts 115 VAC input (16A max) and supports both local front-panel control and remote programming — making it well suited for automated test setups as well as manual bench work. Dual analog panel meters for voltage and current are mounted on the front face, and both have been confirmed to track accurately against actual output.

Specifications & What's Included

• Manufacturer: Electronic Measurements Inc. (EMI)
• Model: TCR 150S7-1-0386T-OV-LB
• Series: TCR SRC
• Output voltage: 0–150 VDC (continuously variable)
• Output current: 0–7 A (continuously variable)
• Maximum output power: 1,000 W
• Input voltage: 115 VAC
• Input current (max): 16 A
• Control: Local (front panel) or Remote
• Front panel: Power switch, analog voltage meter, analog current meter, OV ADJ knob, ATD Station indicator

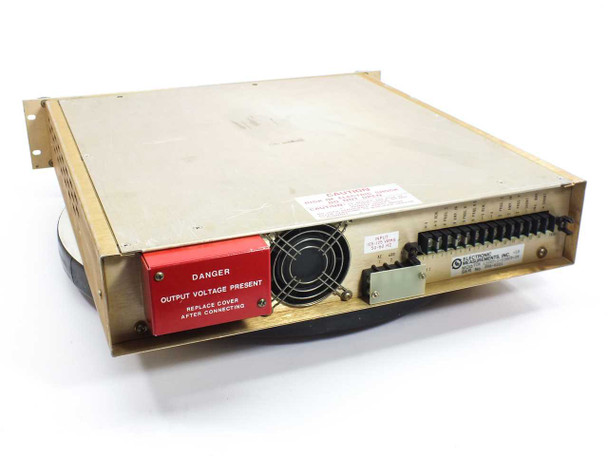

• Output terminals: Rear-panel positive (+), ground (GND), and negative (–) binding posts
• Cooling: Rear-mounted fan
• Form factor: 2U rackmount chassis with front rack handles

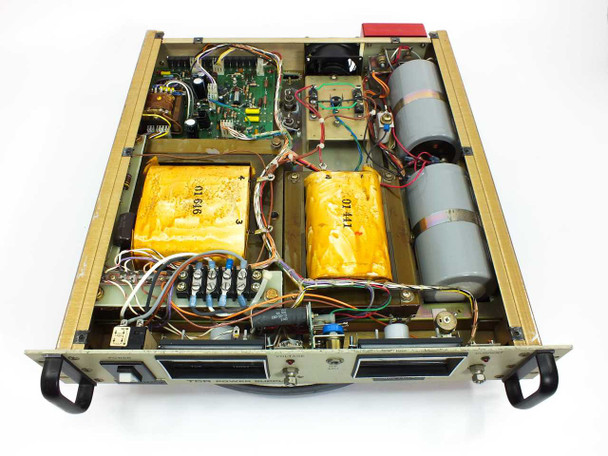

• Interior: Two potted power transformers, discrete regulation/control PCB, pass transistor board, large electrolytic filter capacitor bank — all original and intact
• Power supply unit only — no output cables or rack hardware included

Applications

The EMI TCR series are linear regulated DC power supplies built for demanding laboratory, industrial, and automated test environments. With a 0–150 VDC output range and 1,000 W capacity, this supply is used in applications requiring high-voltage, moderate-current DC — such as component burn-in and life testing, electrochemical processes, semiconductor characterization, motor and actuator testing, and general-purpose R&D bench work. The local/remote control capability makes it a natural fit for integration into ATE (Automated Test Equipment) racks, where output voltage and current can be programmed via external signals. Electronic Measurements Inc., based in Neptune, New Jersey, produced the TCR series through the 1980s and 1990s; these units are known for their solid linear design and have remained in service in labs and test facilities well beyond their production era. The 2U rackmount form factor allows the supply to slot into standard 19-inch equipment racks alongside other test instrumentation.
