Description
Delta Sonics DT1021 Ultrasonic Cleaning Tank 21x10x10 Stainless Steel For Parts

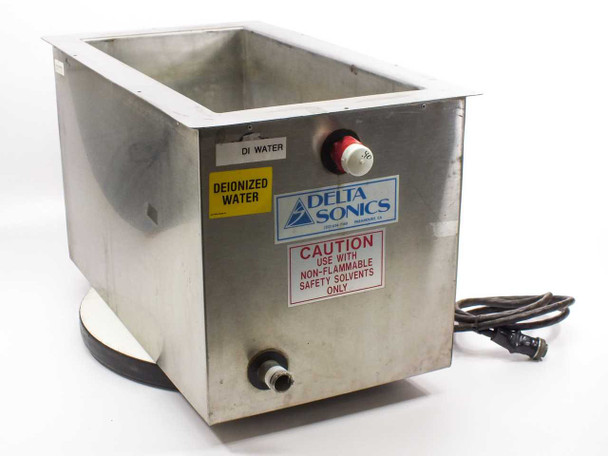

The Delta Sonics DT1021 is a stainless steel ultrasonic cleaning tank designed to work with a separate external ultrasonic generator. The tank houses a piezoelectric transducer array on its underside and connects to the generator via a multi-pin circular cable. This unit has been tested with a known-good ultrasonic generator and did not produce ultrasonic cleaning waves — it is being sold AS-IS for parts or repair only.
Specifications & What's Included
- Brand: Delta Sonics
- Model: DT1021

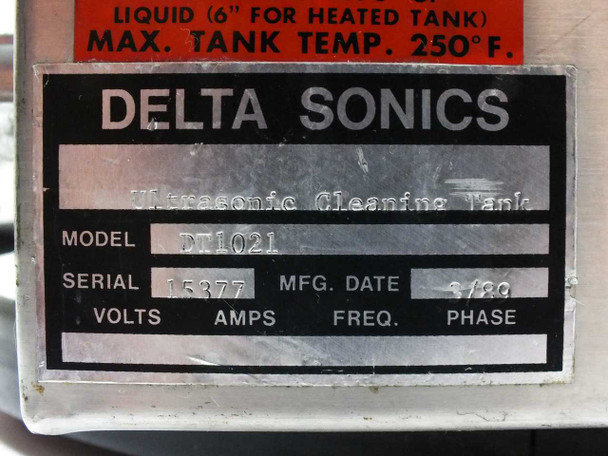

- Serial Number: 15377
- Manufacture Date: March 1989
- Bath (interior) dimensions: 21" x 10" x 10"
- Overall dimensions: 26" x 14.5" x 14.5"
- Approx. weight: 67 lbs
- Tank material: Stainless steel
- Max tank temperature: 250°F
- Liquid type: Deionized water or non-flammable safety solvents only (per label)
- Transducer array: Approximately 24 piezoelectric transducers in a 4×6 grid on underside
- Connector: 7-pin circular military-style cable (for generator connection)
- Drain fitting: Front-mounted at base of tank
- Generator: Not included — tank only
- Condition: AS-IS / For Parts or Not Working — tested, no ultrasonic output
Applications
Delta Sonics DT1021-type tanks are used in industrial and laboratory parts cleaning systems. Ultrasonic cleaning tanks of this type work by coupling high-frequency sound waves (generated externally) through a liquid bath to remove contaminants from parts and components — common applications include semiconductor fabrication, electronics assembly, precision optics cleaning, medical instrument processing, and general industrial parts washing. This style of separate tank-and-generator system allows facilities to pair tanks with different generator configurations or to replace individual components independently. The DT1021 is a legacy unit dating from the late 1980s; it may be suitable for repair, transducer replacement, or cannibalization for parts in a compatible Delta Sonics cleaning system.

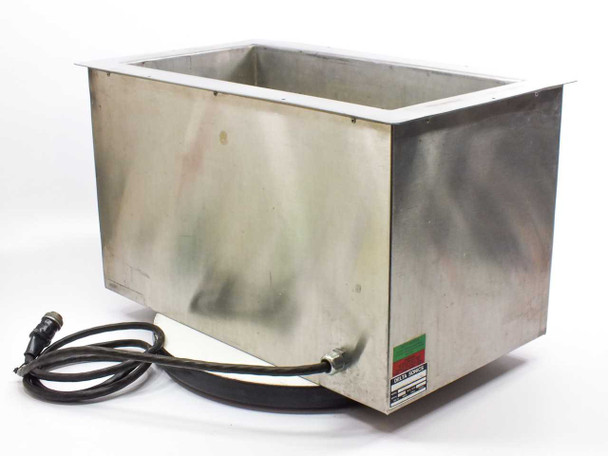

This Delta Sonics DT1021 Ultrasonic Cleaning Tank was tested using a known-good ultrasonic generator, and the tank did not produce any ultrasonic cleaning waves. It is being sold strictly AS-IS for parts or repair — it is not guaranteed to function as an ultrasonic cleaner. The stainless steel tank exterior shows some discoloration and general wear consistent with prior use. The interior bath is clean. The transducer array and generator cable are intact and visible but their condition and repairability are not assessed. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Delta Sonics |
Model: |
DT1021 |
MPN: |
DT1021 |
SKU: |
49615 |
Type: |
Ultrasonic Cleaning Tank |
Seller Notes: |
Tank only — no generator included. Circular multi-pin generator cable attached. |
Bath Dimensions: |
21" x 10" x 10" |
Overall Dimensions: |
26" x 14.5" x 14.5" |
Tank Material: |
Stainless Steel |
Max Tank Temperature: |
250°F |
Connector Type: |
7-pin circular military-style connector |
Number of Transducers: |
Approx. 24 piezoelectric transducers (4x6 array) |
Compatible With: |
Separate ultrasonic generator (not included) |
Liquid Type: |
Deionized water or non-flammable safety solvents only |
Country/Region of Manufacture: |
United States |
Form Factor: |
Freestanding / Drop-in Tank |
Application: |
Industrial/lab ultrasonic parts cleaning |
Condition Notes: |
This Delta Sonics DT1021 Ultrasonic Cleaning Tank was tested with a known-good generator and produced no ultrasonic output. Sold AS-IS for parts or repair only. Exterior shows use wear; interior is clean. Not guaranteed functional. |
