Curtiss-Wright SVME-414 VME System Board Rev A-6 Delphi PowerPC XC2VP50

(No reviews yet) Write a Review
SKU:
50180
MPN:
SVME-414
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

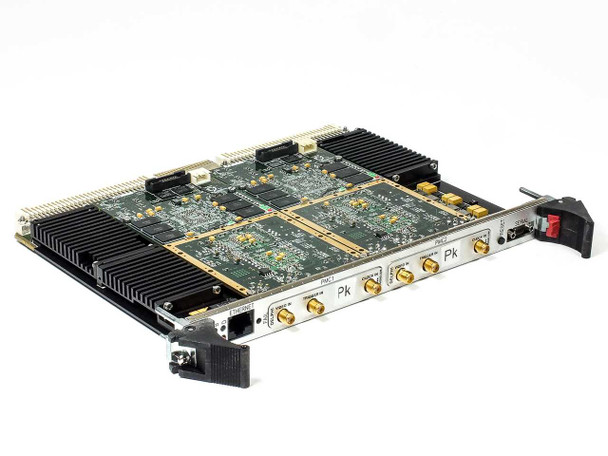

  • Curtiss-Wright SVME-414 VME system board Rev A-6 — angled front view showing front panel with SMA RF connectors, fiber optic port, and black handle with red locking latch

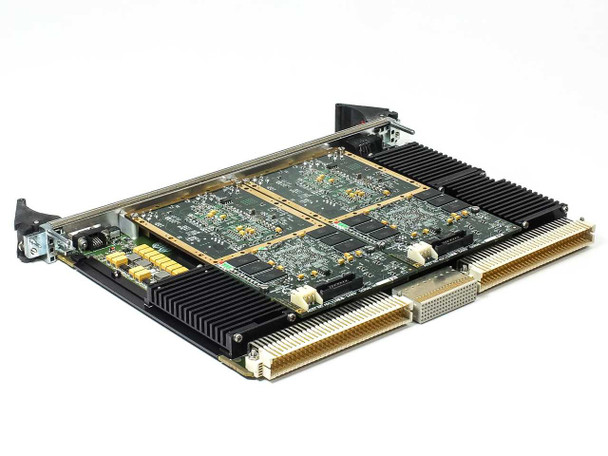

  • Curtiss-Wright SVME-414 VME system board — angled rear-left view showing dual VMEbus edge connectors and board underside with heatsinks and Delphi PowerPC processor modules
  • Curtiss-Wright SVME-414 VME system board — rear three-quarter view showing VMEbus P1/P2 edge connectors and component side of the main PCB
  • Curtiss-Wright SVME-414 close-up top view — four Delphi Engineering PowerPC XC2VP50 processor/FPGA mezzanine modules with gold substrate, flanked by memory arrays on two carrier sub-boards
  • Curtiss-Wright SVME-414 VME system board — full top-down view showing all four Delphi PowerPC XC2VP50 FPGA modules, memory banks, and VMEbus connector row

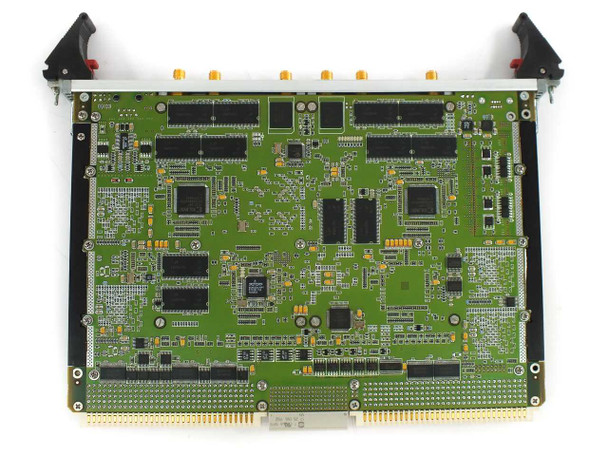

  • Curtiss-Wright SVME-414 — full top-down view of the component side of the main PCB showing multiple ICs, memory devices, oscillators, and passive components
$1,500.00
Was: $3,500.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Curtiss-Wright SVME-414 VME System Board Rev A-6 Delphi PowerPC XC2VP50

The Curtiss-Wright SVME-414 is a high-performance 6U VMEbus processor and signal-processing board designed for demanding embedded computing applications. This example is revision A-6 and carries two Delphi Engineering mezzanine processor modules, each built around the Xilinx Virtex-II Pro XC2VP50 FPGA with an embedded PowerPC 405 hard processor core — a combination that provides substantial parallel floating-point and DSP throughput in a standard VME slot footprint.

Specifications & What's Included

  • Manufacturer: Curtiss-Wright Defense Solutions
  • Part Number: SVME-414-0000
  • Revision: A-6
  • Form Factor: 6U VMEbus single-slot card
  • Processor Module 1 — Delphi Engineering PowerPC XC2VP50
    Part Numbers: FF1152CGB0505 / ADC3202-340B2
  • Processor Module 2 — Delphi Engineering PowerPC XC2VP50
    Part Numbers: FF1152CGB0425 / ADC3202-340B1
  • FPGA: Xilinx Virtex-II Pro XC2VP50 (embedded PowerPC 405 core) per module
  • Front panel: multiple SMA RF connectors (labeled
    Condition: Used
    This Curtiss-Wright SVME-414 VME System Board (Rev A-6) with dual Delphi Engineering PowerPC XC2VP50 processor modules has been visually inspected and appears to be in good condition. The board shows normal wear consistent with prior installation in a VME chassis. It has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Curtiss-Wright
Model:
SVME-414
MPN:
SVME-414-0000
Secondary Model:
REV A-6
Type:
VME System Board / Embedded Processor Card
SKU:
50180
Processor:
Delphi Engineering PowerPC XC2VP50 (x2)
Processor Part Number 1:
FF1152CGB0505 / ADC3202-340B2
Processor Part Number 2:
FF1152CGB0425 / ADC3202-340B1
Form Factor:
6U VMEbus
Bus Interface:
VMEbus (VME)
Revision:
Rev A-6
Number of Processors:
2
FPGA:
Xilinx Virtex-II Pro XC2VP50
Application:
Embedded Computing, Aerospace, Defense, Signal Processing
Seller Notes:
Board only — no chassis, cables, or documentation included.
Country/Region of Manufacture:
United States
Condition Notes:
Curtiss-Wright SVME-414 VME System Board Rev A-6 with Delphi PowerPC XC2VP50 processors. Inspected and in good cosmetic condition. Not powered or tested at our facility. Sold as-inspected.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

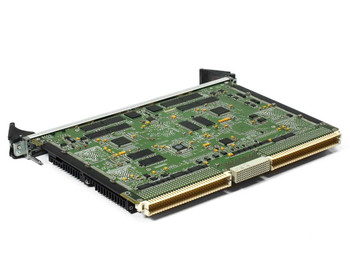

Curtiss-Wright SVME-414 VME system board angled front view showing SMA RF connectors on front panel and installed Delphi PowerPC XC2VP50 FPGA mezzanine modules Curtiss-Wright SVME-414 VME board angled rear-left view showing VME P1/P2 backplane edge connectors and green PCB with populated ICs
