Chart Recorders
Chart Recorders are mechanical devices used to track and record data over time. These devices are commonly used in various industries such as healthcare, scientific research, environmental monitoring, and manufacturing. Chart Recorders function by receiving input signals and then transferring this information onto a chart or graph paper. This process allows users to analyze the data visually and identify any trends or anomalies. Chart Recorders are crucial for accurately monitoring and documenting changes in parameters such as temperature, pressure, and humidity. These devices provide a reliable and durable method for recording data in real-time, making them essential tools in data collection and analysis.
-
Houston Instrument HiPlot DMP-2 Digital Pen Plotter 115/230V 25-Pin w/ Manual
Houston
$250.00Was: $500.00Houston Instrument HiPlot DMP-2 Digital Pen Plotter 115/230V 25-Pin w/ Manual Desktop pen plotter for vector graphics output. Accepts digital plot commands via parallel and serial interfaces to drive...51888- SKU:
- 51888
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 21.00 LBS
- Brand:
- Houston Instrument
- Model:
- DMP-2
- MPN:
- DMP-2
- Type:
- Digital Pen Plotter
- SKU:
- 51888
- Condition:
- Open Box – Powers On, Function Not Tested
- Seller Notes:
- Includes original Houston's HI PLOT Operator Manual (DMP-2/DMP-5)
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Desktop
- Power Requirements:
- 115V 50/60Hz or 230V 50/60Hz, selectable
- Signal Connector:
- 25-Pin Parallel (DB-25 style)
- Interface Type:
- Parallel (5-Line TTL) and RS-232C Serial
- Fuse Rating:
- 3AG/250V; 120V: 1/2A; 240V: 1/4A
- FCC ID:
- BCC9GV
- FCC Class:
- Class B, Part 15
- Compatible Models:
- DMP-2, DMP-5
- Drive Type:
- Stepper Motor
- What's Included:
- Pen plotter unit and original operator manual
- Condition Notes:
- Houston Instrument HiPlot DMP-2 Digital Pen Plotter. Open box, near-new cosmetically. Sourced from satcom spares room. Powers on — plotting function not tested. Includes original operator manual. Contact us with questions before purchasing.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
Graphtec PR424-4B Chart Paper Roll 386mm 4-Track Chart Recorder Recording Paper
Graphtec
$25.00Was: $50.00Graphtec PR424-4B Chart Paper Roll 386mm 4-Track Chart Recorder Recording PaperChart recorder paper roll for use with Graphtec roll chart recorders. Provides four-track recording capability for...50345- SKU:
- 50345
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Brand:
- Graphtec
- Model:
- PR424-4B
- MPN:
- PR424-4B
- Type:
- Chart Recorder Paper Roll
- SKU:
- 50345
- Overall Width:
- 386mm
- Hole-to-Hole Width:
- 375mm
- Number of Tracks:
- 4
- Track Width:
- 80mm per track
- Subdivisions:
- 8 x 10mm subdivisions per track
- Tick Marks:
- 1mm ticks, 2mm tall per 10mm box
- Format:
- Roll
- Country/Region of Manufacture:
- Japan
- Condition:
- New
- Compatible With:
- Graphtec roll chart recorders
- Seller Notes:
- New old stock. May be out of original sealed plastic wrap or box.
- Condition Notes:
- Graphtec PR424-4B chart recorder paper roll — new and unused. May be out of original sealed plastic or box, but paper is unused. Please view photos and contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$25.00Was: $50.00 -

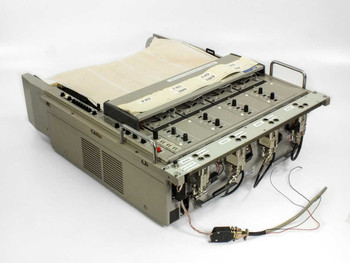

Graphtec WR3320 Linearcorder WR3310 4-Channel Flatbed Chart Recorder AZ3302
Graphtec
$594.00Was: $1,200.00Graphtec WR3320 Linearcorder WR3310 4-Channel Flatbed Chart Recorder AZ3302The Graphtec WR3320 Linearcorder is a four-channel flatbed analog chart recorder designed to continuously plot multiple...50302- SKU:
- 50302
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 74.00 LBS
- Brand:
- Graphtec
- Model:
- WR3320
- Secondary Model:
- WR3310
- MPN:
- WR3320
- Type:
- Flatbed Chart Recorder
- SKU:
- 50302
- Number of Channels:
- 4
- Recorder Style:
- Flatbed / Linearcorder
- Included Modules:
- Graphtec AZ3302 (4 modules)
- Chart Speed Range:
- 5 to 500 mm/min (switchable)
- Chart Speed Units:
- mm/min; SEC/MIN/FAST modes
- Input Range:
- mV / V selectable per channel
- Range Settings:
- 10, 20, 50, 100, 200, 500 mV/V per channel
- Power Input:
- DC 100V (visible on rear label)
- Pen Type:
- Heated thermal stylus
- Chart Type:
- Fan-fold / roll paper
- Front Panel Controls:
- Power on/off, Chart speed, Timing, Event, Heat, Chart Ext
- Channel Inputs:
- CH1 IN, CH2 IN, CH3 IN, CH4 IN (banana/BNC rear)
- Monitor Outputs:
- CH1 MON, CH2 MON, CH3 MON, CH4 MON
- External Control:
- EXT CONTROL connector on rear panel
- Rear Connectors:
- Banana jacks (+/-/GND) per channel, IEC AC inlet
- Form Factor:
- Benchtop / Portable
- Country/Region of Manufacture:
- Japan
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes 4x Graphtec AZ3302 amplifier modules and chart paper
- Alarm / Event Functions:
- Alarm out, Event marker, Timing marker
- Indicators:
- Green ON-LINE / Red OFF-LINE LED indicator
- Rewind Function:
- Yes — Rewind control on right side panel
- Condition Notes:
- Graphtec WR3320 Linearcorder 4-channel flatbed chart recorder. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. Includes 4x Graphtec AZ3302 modules. Normal lab wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$594.00Was: $1,200.00 -
Dickson DT4-150C-B-7-P-1-A Portable Temperature Chart Recorder 0-150C
Dickson
$90.00Was: $175.00Dickson DT4-150C-B-7-P-1-A Portable Temperature Chart Recorder 0-150CThe Dickson DT4-150C-B-7-P-1-A is a battery-powered portable circular chart recorder designed to measure and log temperature over...46418- SKU:
- 46418
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Dickson
- Model:
- DT4-150C-B-7-P-1-A
- MPN:
- DT4-150C-B-7-P-1-A
- SKU:
- 46418
- Type:
- Portable Circular Chart Recorder
- Condition:
- As-Is / For Parts or Not Working
- Measurement Type:
- Temperature
- Temperature Range:
- 0 to +150°C
- Sensor Type:
- Type A Thermocouple (CU A)
- Chart Type:
- 4" Circular Chart, 0–150, 7-Day (#35)
- Recording Period:
- 7 Day
- Power Requirements:
- 4/6 Battery, 7 Day
- Chart Size:
- 4 inch
- Form Factor:
- Portable / Handheld
- Probe / Sensor:
- Capillary probe with braided metal sheath
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Sold as-is. Internal battery needs replacement. Capillary probe included.
- Condition Notes:
- Dickson DT4-150C-B-7-P-1-A Portable Chart Recorder sold as-is. Internal battery is bad due to age and must be replaced. Not tested or guaranteed functional. Capillary probe included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$90.00Was: $175.00 -

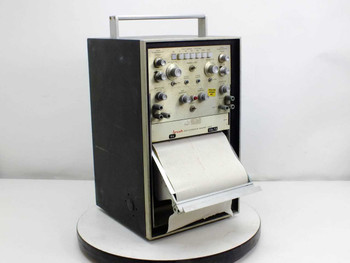

Brush Instruments Mark 280 15-6327-10 2-Channel Chart Recorder 115V 175W For
Clevite Brush Instruments
$65.00Was: $125.00Brush Instruments Mark 280 15-6327-10 2-Channel Chart Recorder 115V 175W For PartsA benchtop strip chart recorder manufactured by Brush Instruments in Cleveland, Ohio. This dual-channel unit records...46970- SKU:
- 46970
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 90.00 LBS
- Brand:
- Brush Instruments
- Model:
- Mark 280
- MPN:
- 15-6327-10
- Type:
- 2-Channel Strip Chart Recorder
- SKU:
- 46970
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Does not power on. Sold as-is for parts or repair. Roll of chart paper included.
- Country/Region of Manufacture:
- United States
- Power Requirements:
- 115V, 175W, 60 CPS
- Voltage:
- 115V AC
- Wattage:
- 175W
- Frequency:
- 60 CPS (60 Hz)
- Number of Channels:
- 2
- Serial Number (Internal):
- 140
- Measurement Type:
- Milliamps (MA) and Volts
- Chart Speed:
- 5, 10, 20, 50, 100, 200 mm/sec (selectable)
- Form Factor:
- Benchtop / Portable (carry handle)
- Manufacturer / Division:
- Brush Instruments, Division of Clevite Corporation
- Manufacturer Location:
- Cleveland, Ohio, U.S.A.
- Condition Notes:
- Brush Instruments Mark 280 15-6327-10 strip chart recorder does not power on. Tested at our facility — failed to power up. Sold as-is for parts or repair, no functionality guarantee. Roll of chart paper included. Cosmetic wear throughout.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$65.00Was: $125.00 -

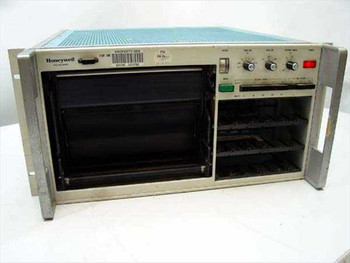

Honeywell 1858 Visicorder Oscillograph Chart Recorder Rack Mount For Parts
Honeywell
$250.00Was: $500.00Honeywell 1858 Visicorder Oscillograph Chart Recorder Rack Mount For Parts RepairThe Honeywell 1858 Visicorder is a multi-channel galvanometer-based oscillograph chart recorder designed for capturing...9056- SKU:
- 9056
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 73.00 LBS
- Brand:
- Honeywell
- Model:
- 1858
- MPN:
- 1858
- Type:
- Visicorder Oscillograph Chart Recorder
- SKU:
- 9056
- Condition:
- As-Is / For Parts or Not Working
- Form Factor:
- Rack Mount
- Recording Method:
- Galvanometer / Light-Beam (Oscillograph)
- Number of Channels:
- Multi-channel (plug-in modules)
- Seller Notes:
- Powers on; responds to controls. Missing plug-in modules and paper cover. Sold AS-IS.
- Country/Region of Manufacture:
- United States
- Application:
- Waveform recording, vibration, dynamic signal analysis
- Compatible With:
- Honeywell Visicorder plug-in galvanometer modules
- Power Requirements:
- See rear rating plate (AC, details partially legible)
- Condition Notes:
- Honeywell 1858 Visicorder chart recorder sold AS-IS for parts or repair. Powers on and responds to manual controls but is missing plug-in modules and paper cover. Not guaranteed functional. 250 chars or fewer.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
HP 7418A 8-Channel Chart Recorder System 8x 8801A DC Amplifier Plug-In Rack
HP
$500.00Was: $1,000.00HP 7418A 8-Channel Chart Recorder System 8x 8801A DC Amplifier Plug-In RackThermal tip strip chart recorder system in full-height rack cabinet configuration. Equipped with 8 HP 8801A low-gain DC...9074- SKU:
- 9074
- Availability:
- Usually ships within 3-5 business days due to size and freight requirements.
- Weight:
- 375.00 LBS
- Brand:
- HP
- Model:
- 7418A
- MPN:
- 7418A
- Secondary Model:
- 8801A
- Type:
- Thermal Tip Strip Chart Recorder System
- SKU:
- 9074
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes 8x 8801A DC plug-in amplifiers and accessories lot
- Country/Region of Manufacture:
- United States
- Form Factor:
- Full-Height Rack Cabinet
- Cabinet Model:
- HP 1065A Rack Enclosure
- Power Requirements:
- 115V ±10%, 50-60Hz, 12A Max
- Number of Channels:
- 8
- Plug-In Type:
- HP 8801A Low Gain DC Amplifier
- Number of Plug-Ins:
- 8
- Amplifier Gain:
- Low Gain DC
- Recorder Type:
- Thermal Tip Strip Chart Recorder
- Application:
- Data Acquisition, Signal Recording, Lab Measurement
- Included Accessories:
- Cables, connectors, thermal stylus accessories, misc hardware
- Compatible With:
- HP 7400 Series Chart Recorder System
- Internal Connectors Visible:
- Multi-pin circular (J16–J18, J26–J28), DB-9 (J34, J33)
- Outlet Strip:
- 6A max per outlet, 12A combined, 10V-210V
- Condition Notes:
- HP 7418A 8-Ch Chart Recorder System sold as-is for parts or repair. Not tested or guaranteed functional. Includes 8x HP 8801A DC plug-ins and accessories lot. Cabinet and modules show wear. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$500.00Was: $1,000.00 -
Dickson TH8-7F Temperature Humidity Chart Recorder -20 to 120°F For Parts
Dickson
$65.00Was: $125.00Dickson TH8-7F Temperature Humidity Chart Recorder -20 to 120°F For PartsThe Dickson TH8-7F is a portable, battery-powered circular chart recorder that continuously logs both temperature and humidity...18217- SKU:
- 18217
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 8.00 LBS
- Brand:
- Dickson
- Model:
- TH8-7F
- MPN:
- TH8-7F
- Type:
- Temperature & Humidity Circular Chart Recorder
- SKU:
- 18217
- Temperature Range:
- -20 to 120°F
- Humidity Range:
- 0 to 100% RH
- Chart Size:
- 8" circular
- Chart Part Number:
- C417
- Chart Duration:
- 7-day
- Power Source:
- Battery
- Country/Region of Manufacture:
- United States
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold for parts. Pens dried/unusable. No chart paper. Batteries not included. Unable to test.
- Form Factor:
- Portable / Handheld Case
- Serial Number (Internal):
- 03017788
- Application / Use Case:
- Environmental monitoring, lab, cleanroom, cold storage
- Condition Notes:
- Dickson TH8-7F Temp/Humidity Chart Recorder sold AS-IS for parts. Pens dried and unusable. No chart paper. Batteries not included. Unable to test. Housing intact with normal wear. Good parts unit.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$65.00Was: $125.00 -
Omega CT485-AL Circular Chart Recorder Temperature Humidity 24VDC Relay 2A
White Box Omega
$45.00Was: $90.00Omega CT485-AL Circular Chart Recorder Temperature Humidity 24VDC Relay 2ADual-pen circular chart recorder for simultaneous temperature and humidity monitoring. Features motorized chart drive, 2A...22554- SKU:
- 22554
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Omega
- Model:
- CT485-AL
- MPN:
- CT485-AL
- Secondary Model:
- White Box CT485-AL
- Type:
- Circular Chart Recorder
- SKU:
- 22554
- Measurement Type:
- Temperature and Humidity (RH)
- Relay Contact Rating:
- 2A 24VAC / 2A 24VDC Maximum
- Display Units:
- RH, °C, °F (selector switch)
- Alarm:
- High / Set / Low alarm with front-panel indicators
- Chart Drive:
- Circular chart with motorized drive
- Pen / Trace:
- Dual pen — Temperature (red) and Humidity (blue)
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- No external sensor probe. No AC adapter included. Sold as-is.
- Country/Region of Manufacture:
- Taiwan
- Designed/Engineered:
- USA (White Box, Inc., Stamford, CT)
- Form Factor:
- Benchtop / Wall-Mount
- Compatible With:
- Omega Engineering environmental monitoring systems
- Application:
- Temperature and humidity monitoring / environmental logging
- Condition Notes:
- Omega CT485-AL Circular Chart Recorder sold as-is for parts or repair. Not confirmed functional. No sensor probe and no AC adapter included. Shows general use wear. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$45.00Was: $90.00 -
Bacharach 22-7008 Hygrothermograph Temperature Humidity Recorder Serdex Parts
Bacharach
$75.00Was: $150.00Bacharach 22-7008 Hygrothermograph Temperature Humidity Recorder Serdex PartsMechanical drum chart recorder that documents temperature and relative humidity over time. Uses a clockwork drive...22579- SKU:
- 22579
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Bacharach
- Model:
- 22-7008
- MPN:
- 22-7008
- Type:
- Hygrothermograph / Temperature-Humidity Chart Recorder
- SKU:
- 22579
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts; includes drum mechanism, stylus arms, and chart roll
- Country/Region of Manufacture:
- United States
- Form Factor:
- Portable / Benchtop with carry handle
- Measurement Type:
- Temperature and Relative Humidity
- Recording Method:
- Mechanical drum chart recorder
- Sub-Brand / Series:
- Serdex (United Technologies Bacharach)
- Manufacturer:
- Bacharach Instrument Co., Pittsburgh, PA, USA
- US Patent No.:
- 2466658
- Canadian Patent No.:
- 457125
- Power Requirements:
- Mechanical / clockwork drive — no electrical power required
- Condition Notes:
- Bacharach 22-7008 Serdex Hygrothermograph sold as-is for parts or repair. Not tested, not guaranteed functional. Case, drum mechanism, stylus arms, sensor housing, and chart roll present. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
Yokogawa 3033 X-Y Analog Recorder Plotter YEW Vintage For Parts Repair
Yokogawa
$110.00Was: $225.00Yokogawa 3033 X-Y Analog Recorder Plotter YEW Vintage For Parts RepairBenchtop X-Y analog recorder plotter manufactured by Yokogawa Electric Works. Records data on chart paper using pen drive...24785- SKU:
- 24785
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 45.00 LBS
- Brand:
- Yokogawa
- Model:
- 3033
- MPN:
- 3033
- Type:
- X-Y Analog Recorder Plotter
- SKU:
- 24785
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Powers on and lights up. Poor physical condition. Includes instruction manual.
- Country/Region of Manufacture:
- Japan
- Form Factor:
- Benchtop / Wall-Mountable
- Mounting:
- Flat or vertical
- Recording Type:
- X-Y Analog
- Drive Mechanism:
- Pen / DC Amplifier
- Input Channels:
- 2 (X and Y1 axes)
- Input Range:
- mV/cm (vernier adjustable)
- Filter:
- On/Off switchable per channel
- Time Base:
- Sweep rate adjustable (0.25–10 s/cm)
- Controls:
- Offset, Position, Range/Vernier, Filter, Sweep, Chart Hold, Pen Down
- Rear Interface:
- D-sub connector (visible on rear panel)
- Includes:
- Instruction Manual
- Compatible With:
- Standard chart paper for Yokogawa 3033 series
- Series:
- YEW (Yokogawa Electric Works)
- Condition Notes:
- Yokogawa 3033 X-Y Analog Recorder Plotter powers on and light illuminates but is in poor physical condition. Sold as-is for parts or repair only — no functionality guaranteed. Includes instruction manual.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$110.00Was: $225.00 -
White Box CT485-RS Circular Chart Recorder Temp Humidity °C °F For Parts
Omega
$55.00Was: $100.00White Box CT485-RS Circular Chart Recorder Temp Humidity °C °F For PartsBenchtop/wall-mount circular chart recorder for temperature and relative humidity monitoring. Features dual LCD digital display...39661- SKU:
- 39661
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- White Box, Inc.
- Model:
- CT485-RS
- MPN:
- CT485-RS
- Type:
- Circular Chart Recorder
- SKU:
- 39661
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair. No AC adapter included.
- Country/Region of Manufacture:
- Taiwan
- Form Factor:
- Benchtop / Wall-Mount
- Measurement Type:
- Temperature and Relative Humidity
- Display Type:
- LCD digital display + circular chart
- Temperature Scale:
- °C / °F switchable
- Chart Type:
- Circular (rotating drum)
- Peak Recording:
- High, Res, Low peak indicators
- Chart Speed Settings:
- 1, 7, 32 (chart type selector)
- Power Requirements:
- AC adapter required (not included)
- Application:
- Temperature and humidity monitoring/recording
- Condition Notes:
- White Box CT485-RS Circular Chart Recorder sold AS-IS for parts or repair. No AC adapter included; unit has not been tested. Not guaranteed functional. Cosmetically appears intact. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$55.00Was: $100.00 -
Omega CT508 Circular Chart Recorder Temp Humidity 2A 110VAC 30VDC For Parts
Omega
$45.00Was: $90.00Omega CT508 Circular Chart Recorder Temp Humidity 2A 110VAC 30VDC For PartsThe Omega CT508 is a benchtop/wall-mount circular chart recorder designed to continuously log temperature and humidity over...39669- SKU:
- 39669
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Omega Engineering
- Model:
- CT508
- MPN:
- CT508
- Type:
- Circular Chart Recorder
- SKU:
- 39669
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Missing AC adapter and battery cover. Sold as-is for parts or repair.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Wall-Mount
- Relay Contact Rating:
- 2A 110VAC / 2A 30VDC Maximum
- Power Requirements:
- 110VAC or 30VDC (AC adapter required)
- Measurement Type:
- Temperature and Humidity
- Chart Type:
- Circular
- Number of Pens/Channels:
- 2 (Temperature, Humidity)
- Display Type:
- LCD
- Interface/Connector:
- DIN connector (side), coaxial power jack
- Recording Medium:
- Circular chart paper
- Compatible With:
- Omega CT-series circular chart paper
- PWR Switch:
- Yes — front panel power switch present
- Chart Type Switch:
- Yes — front panel Chart Type selector
- Temperature Scale:
- °C / °F selectable
- Humidity Scale:
- RH / °C / °F (selectable per label)
- Condition Notes:
- Omega CT508 Circular Chart Recorder sold as-is for parts or repair. Missing AC adapter and battery cover. Not tested, no functionality guaranteed. Housing shows light yellowing. Mechanism appears physically intact. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$45.00Was: $90.00 -
Soltec 3414 Oscillograph Chart Recorder TF01630-001 Delco 4-Channel For Parts
Soltec
$150.00Was: $300.00Soltec 3414 Oscillograph Chart Recorder TF01630-001 Delco 4-Channel For PartsThe Soltec Model 3414 is a multi-channel oscillograph strip chart recorder manufactured by Soltec Corporation of Sun...42215- SKU:
- 42215
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 60.00 LBS
- Brand:
- Soltec
- Model:
- 3414
- MPN:
- TF01630-001
- Type:
- Oscillograph Chart Recorder
- SKU:
- 42215
- Number of Channels:
- 4
- Form Factor:
- Benchtop
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair; includes paper roll and internal channel amplifier boards
- Country/Region of Manufacture:
- United States
- Measurement Type:
- Analog Waveform / Strip Chart Recording
- Input Type:
- Signal Input and Monitor per channel (circular connectors)
- Sensitivity Range:
- 0.1 mV/cm to 200 mV/cm (per channel, visible on panels)
- Controls:
- VAR, SPAN, CAL, ZERO per channel; NORM/REV/OFF/TRACE/ZERO switches
- Chart Speed Controls:
- Sec / Min / Hr selection; digital display
- Additional Controls:
- Recording Time, Event Marker, Time Marker, Printer, Trigger
- Rear Connectors:
- DB25 and ribbon/parallel interface connectors (rear panel)
- Compatible With:
- Delco Systems Operations instrumentation systems
- Manufacturer Location:
- Soltec Corporation, Sun Valley, CA 91353
- Condition Notes:
- Soltec 3414 Oscillograph Chart Recorder TF01630-001 sold AS-IS for parts or repair. Not tested; no functionality guaranteed. All 4 channel boards and paper mechanism present. Exterior shows wear and soiling.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Midwestern Instruments MCR308BTD0X Chart Recorder A95X41072-01 105-125V 150W
Midwestern Instruments
$75.00Was: $150.00Midwestern Instruments MCR308BTD0X Chart Recorder A95X41072-01 105-125V 150WGalvanometric strip chart recorder with three input channels for simultaneous data logging. Records analog signals onto...47186- SKU:
- 47186
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 40.00 LBS
- Brand:
- Midwestern Instruments
- Model:
- MCR308BTD0X
- MPN:
- A95X41072-01
- Secondary Model:
- MCR308BTD0X
- Type:
- Galvanometric Strip Chart Recorder
- SKU:
- 47186
- Manufacturer / Brand Family:
- Telex / Midwestern Instruments, Inc.
- Country/Region of Manufacture:
- United States
- Voltage:
- 105-125V
- Power:
- 150W
- Frequency:
- 50-60Hz
- Phase:
- Single Phase (1PH)
- Number of Channels:
- 3
- Channel Module Type:
- VA/111M (3 modules installed)
- Chart Speed Range:
- 0.5, 2, 5, 10, 20, 50, 100, 200 cm/sec
- Timing Control:
- 10, 1, 0.1, 0.01 settings via rotary switch
- Volts/Div Range (per channel):
- 0.05, 1, 2, 5, 10, 20, 50 Volts/Div
- Rear Connections:
- TB-Module Output, TB-Galvo Input, Module Input terminals
- Rear I/O:
- Volts and Amps banana jacks, Power, Remote connectors
- Local/Remote Switch:
- Yes — Local/Remote toggle on rear panel
- Form Factor:
- Benchtop / Portable with carry handle
- Date of Manufacture:
- 11/82 (November 1982)
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. Three VA/111M channel modules installed.
- Condition Notes:
- Midwestern Instruments MCR308BTD0X Chart Recorder sold as-is for parts or repair. Not tested or guaranteed functional. Three VA/111M modules installed. General cosmetic wear. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
Honeywell 31061222-001 Temperature Humidity Circular Chart Recorder Battery
Honeywell
$38.00Was: $80.00Honeywell 31061222-001 Temperature Humidity Circular Chart Recorder BatteryTwo-pen circular chart recorder used for continuous environmental monitoring of temperature and relative humidity. Records...46419- SKU:
- 46419
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Honeywell
- Model:
- 31061222-001
- MPN:
- 31061222-001
- Type:
- Circular Chart Recorder
- SKU:
- 46419
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is. No key included. Last calibrated 7/11/2007.
- Measurement Type:
- Temperature and Relative Humidity (%RH)
- Chart Type:
- Circular / Disc Chart
- Number of Pens:
- 2 (red and blue/purple, visible in photos)
- Power Requirements:
- 1 x C-size battery
- Last Calibration Date:
- 7/11/2007
- Key Included:
- No
- Form Factor:
- Freestanding / Wall-Mount Enclosure
- Country/Region of Manufacture:
- United States
- Application / Use Case:
- Environmental monitoring, temperature and humidity logging
- Enclosure Color:
- Beige / Cream
- Condition Notes:
- Honeywell 31061222-001 Temp/Humidity Chart Recorder sold AS-IS due to age. Cosmetically clean. No key included. Last calibrated 7/11/2007. Not tested — no functionality guaranteed. Requires 1 C-size battery.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$38.00Was: $80.00 -
Dickson KTX Temperature Chart Recorder C412 8" 0-100°F Circular No Probe
Dickson
$55.00Was: $100.00Dickson KTX Temperature Chart Recorder C412 8" 0-100°F Circular No ProbeCircular chart recorder for continuous temperature monitoring using 8-inch paper charts. Records data across a 0–100°F range...46271- SKU:
- 46271
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Dickson
- Model:
- KTX
- MPN:
- KTX
- Type:
- Circular Chart Recorder
- SKU:
- 46271
- Chart Size:
- 8 inch (C412)
- Chart Range:
- 0–100°F (0/100 7D)
- Recording Medium:
- Circular paper chart
- Display Type:
- LCD digital display
- Power Requirements:
- AC/DC adapter (generic included)
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Wall-mount
- Measurement Type:
- Temperature
- Probe Included:
- No
- Keys Included:
- No
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Powers on and homes; possible chart rotation issue. Includes AC/DC adapter. No probe, no keys.
- Compatible Chart:
- Dickson C412 8" circular chart
- Application:
- Temperature monitoring, cold storage, lab, industrial environment
- Condition Notes:
- Dickson KTX circular chart recorder powers on and homes but may have chart rotation issues. Sold as-is, no probe, no keys. Generic AC/DC adapter included. LCD shows Prob error. No functionality guarantee.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$55.00Was: $100.00 -
Linseis Type LY F-1510 II/83 XY Flatbed Chart Recorder 220V 50Hz DB15 AS-IS
Linseis
$150.00Was: $300.00Linseis Type LY F-1510 II/83 XY Flatbed Chart Recorder 220V 50Hz DB15 AS-ISThe Linseis Type LY Nr. F-1510 II/83 is a benchtop XY flatbed chart recorder made by Linseis GmbH of Selb, Germany. Flatbed...40621- SKU:
- 40621
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 18.00 LBS
- Brand:
- Linseis
- Model:
- Type LY
- MPN:
- F-1510 II/83
- Type:
- XY Flatbed Chart Recorder
- SKU:
- 40621
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair. Powers on; controls unresponsive.
- Country/Region of Manufacture:
- Germany
- Power Requirements:
- 220V AC, 50Hz
- Fuse Rating:
- 0.2 Amp
- Interface / Connector:
- DB-15 (15-pin D-sub, rear panel)
- AC Inlet Type:
- IEC C14
- X-Axis Sensitivity:
- 10 V/cm
- Y-Axis Sensitivity Range:
- 0.05 mV/cm to 20 V/cm (switchable)
- Y-Axis Module:
- Module 1732 (Y-axis amplifier/sensitivity)
- X-Axis Module:
- Module 1712 (X-axis amplifier/sensitivity)
- Input Connectors:
- Banana jacks (+, -, GND) on X and Y panels; Ext banana jacks on front
- Front Panel Controls:
- Power rocker switch, Stand-by toggle, pen lift toggles, mode toggles
- Form Factor:
- Benchtop / Desktop
- Measurement Type:
- XY Analog Signal Recording
- Application / Use Case:
- Lab data recording, signal analysis, scientific measurement
- Chart Format:
- Flatbed (cut sheet paper)
- Manufacturer Location:
- Linseis GmbH, D-8672 Selb, Germany
- Condition Notes:
- Linseis Type LY F-1510 II/83 XY Flatbed Chart Recorder powers on but does not respond to controls. Sold AS-IS for parts or repair only. Not guaranteed functional. Please contact us with any questions before purchasing.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Franklin Electric 3500 Power Line Disturbance Monitor Chart Recorder 100/200V
Franklin Electric
$250.00Was: $500.00Franklin Electric 3500 Power Line Disturbance Monitor Chart Recorder 100/200VBenchtop power quality monitoring instrument with integrated thermal chart recorder. Monitors three-phase power lines for...9631- SKU:
- 9631
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 50.00 LBS
- Brand:
- Franklin Electric
- Model:
- 3500
- MPN:
- 3500
- Type:
- Power Line Disturbance Monitor with Chart Recorder
- SKU:
- 9631
- Seller Notes:
- Unit includes built-in thermal chart recorder and power/monitor cables visible in photos.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Power Requirements:
- 100/200V AC, 1A/1A, Single Phase, 50/60Hz
- Voltage Rating:
- 100/200V
- Current Rating:
- 1A / 1A
- Phase:
- Single Phase (1Ø)
- Frequency:
- 50/60 Hz
- Measurement Type:
- Power Line Disturbance / Power Quality
- Monitor Inputs:
- Phase 1, Phase 2, Phase 3 (3 monitor input terminals, rear)
- Threshold Settings:
- Under, Over, and Transient — independently adjustable
- Display Type:
- LED numeric display + built-in thermal chart recorder
- Display Select:
- Transient, Over, Under, Phase 1, Phase 2, Phase 3, Time
- Monitor Select:
- Phase 1, Phase 2, Phase 3, All Phases, 3-Phase Power
- Clock Intervals:
- 1 Hr, 10 Hr, 1 Day, 10 Day, 100 Day; 10 Min, 1 Min, 10 Sec, 1 Sec, Run
- Printout Format:
- Status Printout and Disturbance Printout with event codes
- Rear Connectors:
- DB-25 Monitor Output, multi-pin circular connectors, input terminals
- Manufacturer Division:
- Franklin Electric — Programmed Power Division, Sunnyvale CA
- Condition:
- Used – Inspected, Pulled from Working Environment
- Condition Notes:
- Franklin Electric 3500 Power Line Disturbance Monitor in good used condition. Shows light handling wear; cabinet and controls intact. Rear phase cables present. Not powered or tested at our facility; pulled from a working environment.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00
