Description
CEIA THS/MS21 Multi-Spectrum Food Grade Conveyor Metal Detector 450x350 AS-IS
The CEIA THS/MS21 is a multi-spectrum conveyor metal detector designed for inline food safety inspection on food processing and packaging lines. Unlike single-frequency systems, the THS (multi-spectrum) platform simultaneously scans across multiple frequencies, which gives it the ability to detect ferrous metals, non-ferrous metals, and stainless steel — including contaminants that are notoriously difficult for conventional detectors to identify in challenging product environments. This unit features a 450 x 350 mm aperture and is built entirely in stainless steel for food-grade compliance. It is being sold AS-IS and does not power on.
Specifications & What's Included
- Brand: CEIA
- Model: THS/MS21

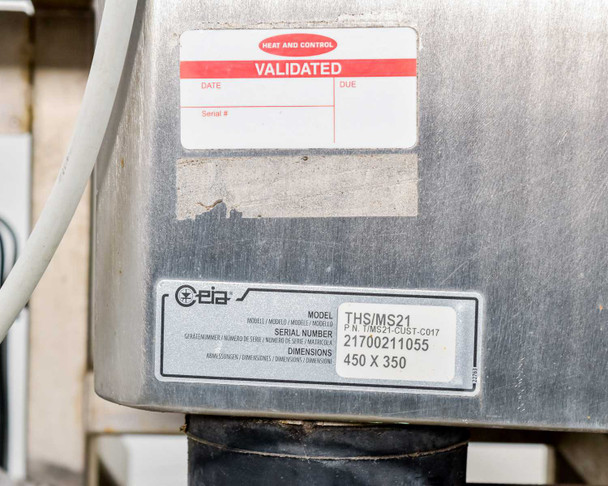

- Part Number: TMS21-CUST-C017
- Detection Technology: Multi-Spectrum (THS platform)
- Aperture Dimensions: 450 x 350 mm
- Detects: Ferrous, non-ferrous, and stainless steel metal contaminants
- Frame & Housing: Stainless steel construction throughout

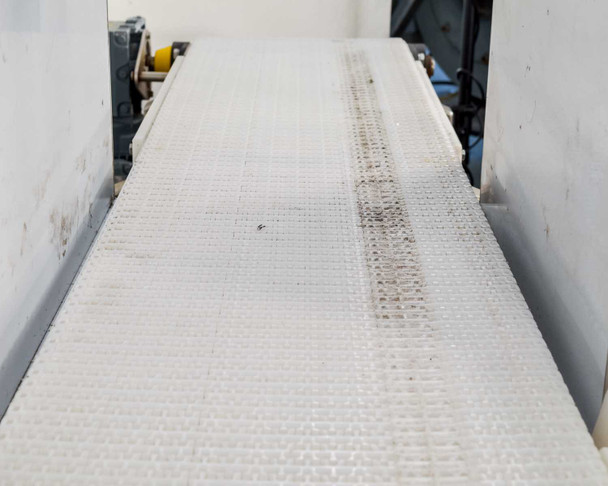

- Conveyor Belt: White modular plastic link belt (shows soiling from prior use)
- Drive Motor: SEW Eurodrive gear motor (shows paint wear and surface grime)

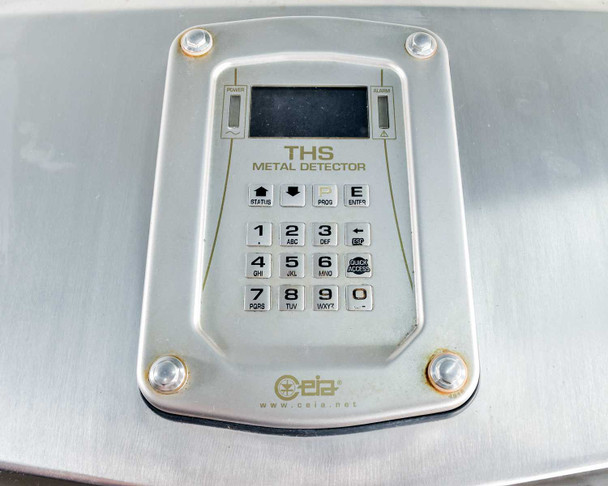

- Control Interface: CEIA THS keypad with LCD display and numeric entry panel mounted on top of detector head
- Conveyor Control System: Separate CEIA-branded panel with motor start/stop, RPM control, detector reset, emergency reset, emergency stop mushroom button, and main trip switch
- Mounting: Freestanding stainless steel frame with adjustable leveling feet
- Country of Manufacture: Italy

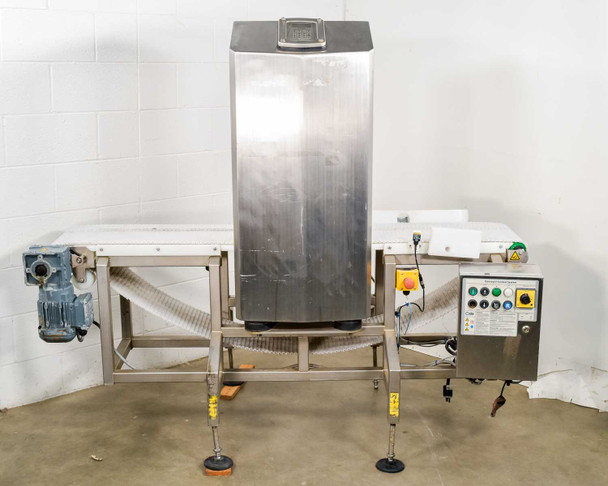

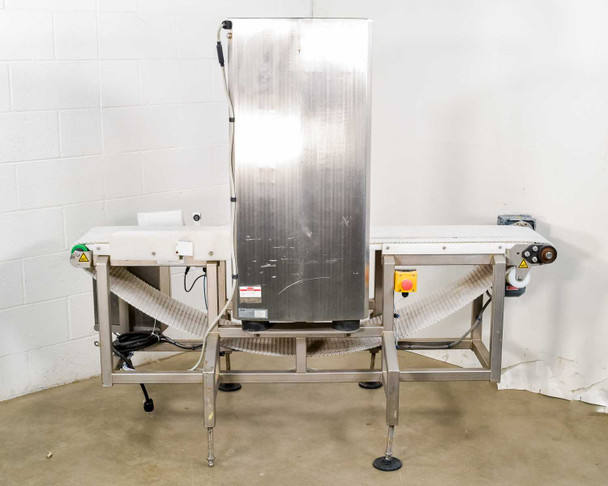

- Includes: Complete conveyor metal detector system as shown — detector head, conveyor frame, belt, SEW drive motor, and Conveyor Control System panel
Applications
CEIA THS multi-spectrum conveyor metal detectors are used in food manufacturing and packaging plants for inline contaminant inspection in compliance with HACCP, BRC, SQF, and retailer food safety codes. The system is positioned on a production line so that packaged or unpackaged food products pass through the detector aperture on the conveyor belt; when a metal contaminant is detected, the system triggers a rejection mechanism downstream to remove the affected product. The multi-spectrum architecture was developed specifically to address the challenge of inspecting products with high water content, salt content, or conductive characteristics — conditions that cause conventional single-frequency detectors to generate false rejects. CEIA THS-series systems are commonly found in meat, poultry, seafood, dairy, baked goods, and ready-meal production environments. This particular unit, with its 450 x 350 mm aperture, is suited to mid-size product formats. The THS/MS21 was produced in Italy by CEIA S.p.A., a specialist manufacturer of industrial metal detection systems.
This CEIA THS/MS21 Multi-Spectrum Conveyor Food Grade Metal Detector does not power on and is being sold AS-IS for parts or repair. When received, the unit had an 'out of order' sign attached, and plugging it in confirmed it will not start. It is not tested, not guaranteed functional, and no returns will be accepted on the basis of functionality. The stainless steel frame and detector head appear in decent cosmetic shape overall; the conveyor belt shows soiling and surface discoloration consistent with prior food processing use. The SEW drive motor shows paint wear and surface grime. The Conveyor Control System panel and THS keypad are intact and appear undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
CEIA |
Model: |
THS/MS21 |
MPN: |
TMS21-CUST-C017 |
Secondary Model: |
T/MS21-CUST-C017 |
SKU: |
52838 |
Type: |
Multi-Spectrum Conveyor Food Grade Metal Detector |
Aperture Dimensions: |
450 x 350 mm |
Detection Technology: |
Multi-Spectrum (THS) |
Detects: |
Ferrous, Non-Ferrous, Stainless Steel |
Frame Material: |
Stainless Steel |
Conveyor Belt Type: |
White plastic modular link belt |
Drive Motor: |
SEW gear motor |
Control Panel: |
CEIA Conveyor Control System with numeric keypad |
Application: |
Food Processing / Food Safety / HACCP Inspection |
Seller Notes: |
Complete unit with SEW drive motor and conveyor belt — does not power on, sold AS-IS |
Country/Region of Manufacture: |
Italy |
Form Factor: |
Freestanding Conveyor System |
Compatible With: |
Food production and packaging lines, HACCP-compliant inspection systems |
Condition Notes: |
This CEIA THS/MS21 Food Grade Conveyor Metal Detector does not power on — received with an 'out of order' tag and confirmed non-functional when plugged in. Sold AS-IS for parts or repair, no functionality guarantee. |
