Description

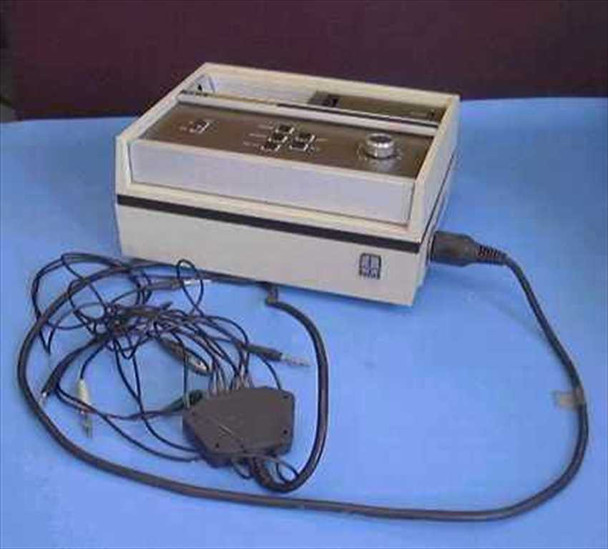

Burdick EK-8 Electrocardiograph ECG Machine 10-Lead Patient Cable w/ Manual
The Burdick EK-8 is a tabletop 12-lead electrocardiograph designed for clinical ECG recording in physician offices, clinics, and hospital departments. It records cardiac electrical activity using a heated stylus on chemically-responsive thermal paper across a flat writing surface, producing rectilinear ECG tracings. The EK-8 supports both fully automatic and manual operation modes and includes a 10-lead patient cable.
Specifications & What's Included
- Manufacturer: Burdick (a KONE Company)
- Model: EK-8 Electrocardiograph
- Recording method: Heated stylus on chemically-responsive thermal paper
- Writing surface: Flat, rectilinear recording
- Operation modes: Fully automatic and manual
- Patient leads: 10-lead patient cable with junction box (included)
- Frequency response switch: AHA mode and FILTER (artifact filter) mode, selectable from front panel
- Lead marking: Automatic lead-marking stylus; marks upper margin of paper once per lead (automatic) or once per second (manual)
- Front panel controls: Power switch (On/Off), Record, Observe, Amp Off, Mark, STD pushbuttons; rotary AHA/Filter/speed selector knob

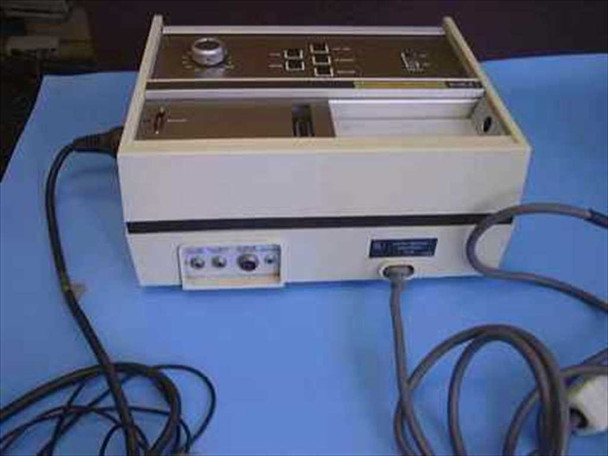

- Paper slot and stylus compartment visible on top of unit
- Form factor: Benchtop / tabletop
- Includes: 10-lead patient cable with junction box, Burdick EK-8 Operator's Manual (original issue December 1979, last revised February 1984)
- No additional accessories, mounting hardware, or ECG paper included
Applications
The Burdick EK-8 Electrocardiograph was designed for standard 12-lead ECG acquisition in clinical environments — physician offices, cardiology departments, outpatient clinics, and hospital wards. Introduced in the late 1970s (original issue date December 1979), it represented the conventional analog/thermal-stylus technology of that era, before digital ECG systems became standard. The EK-8's artifact filter mode was a practical feature for recording usable tracings on patients with muscle tremor or other sources of electrical interference — a common challenge in real clinical settings. This type of single-channel analog electrocardiograph was widely used through the 1980s for routine cardiac screening, pre-operative evaluation, and basic cardiac diagnosis. The EK-8 is a vintage instrument; modern clinical facilities have largely transitioned to digital multi-channel ECG systems, but units like this are still sought for educational use, biomedical training programs, museum collections, and facilities maintaining legacy equipment. Buyer is responsible for confirming suitability for any intended clinical or diagnostic use.
This Burdick EK-8 Electrocardiograph ECG machine is being sold in used condition. It has not been powered up or tested at our facility. It was pulled from a prior medical/clinical setting and has not been refurbished or repaired by us. Photo 5 shows a Burdick EK-8 Operator's Manual (last revised February 1984) and the 10-lead patient cable are present with the unit — please note the original listing text stated no manual was included, but the manual is visibly present in our photos; the received unit will include what is shown. The unit shows typical cosmetic wear consistent with its age and prior clinical use. We do not warranty or refurbish medical equipment. Please view our photo set and contact us if you have any questions.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
Additional Information
Brand: |
Burdick |
Model: |
EK-8 |
MPN: |
EK-8 |
Type: |
Electrocardiograph (ECG Machine) |
SKU: |
11604 |
Seller Notes: |
Includes 10-lead patient cable and Operator's Manual (last revised Feb 1984). |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Tabletop |
Number of Leads: |
10 |
Recording Method: |
Rectilinear, heated stylus on chemically-responsive paper |
Operation Mode: |
Automatic and Manual |
Artifact Filter: |
Yes — AHA / Filter frequency-response switch |
Lead Marking: |
Automatic lead-marking stylus |
Compatible With: |
Standard 10-lead ECG patient cable and thermal ECG paper |
Included Items: |
10-lead patient cable, Operator's Manual (Rev. February 1984) |
Manual: |
Burdick EK-8 Electrocardiograph Operator's Manual, Rev. February 1984 |
Original Issue Date: |
December 1979 |
Application: |
Clinical ECG / electrocardiogram recording |
Manufacturer: |
Burdick, a KONE Company |
Condition Notes: |
This Burdick EK-8 Electrocardiograph is used and untested at our facility. Pulled from a prior clinical setting; not refurbished. Includes 10-lead patient cable and Operator's Manual (per photos). No warranty on medical equipment. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
