Custom Breaker Box Enclosure 70A 15A 20A Breakers Allen-Bradley Contactors

(No reviews yet) Write a Review
SKU:
19524
MPN:
Custom
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
58.00 LBS
Shipping:
Calculated at Checkout
  • Custom black steel breaker box enclosure closed — front view showing Warning and Danger High Voltage stickers, rotary lock, and red digital display on right side

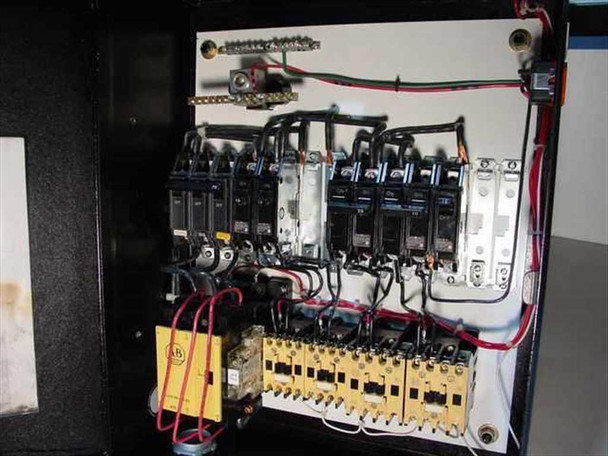

  • Interior of custom breaker box enclosure — full view showing 70A 3-pole and multiple 15A/20A single-pole breakers, Allen-Bradley yellow motor starters, terminal blocks, and red/black wiring

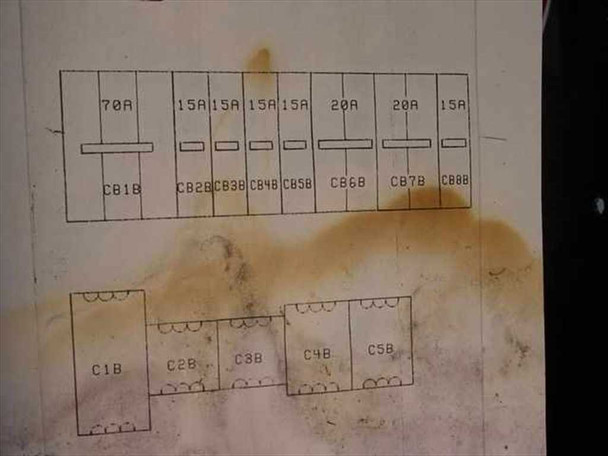

  • Wiring diagram label inside enclosure door — shows breaker layout: CB1B 70A, CB2B–CB5B 15A, CB6B–CB7B 20A, CB8B 15A, and contactor positions C1B–C5B
  • Close-up of five Allen-Bradley yellow motor starter contactors mounted in a row at bottom of enclosure, wired with black and white leads
  • Close-up of Allen-Bradley component (yellow, A-B logo) — overload relay or starter module with pink/magenta wire leads
  • Close-up of left breaker section — 3-pole 70A breaker in OFF position and two single-pole 15A breakers in ON position
  • Close-up of right breaker section — three 20A breakers in ON position and one 15A breaker in OFF position
  • Rear exterior of custom black steel enclosure — plain painted steel back panel with four corner mounting holes
$61.00
Was: $108.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Custom Breaker Box Enclosure 70A 15A 20A Breakers Allen-Bradley Contactors 24x17x7

This is a custom-wired steel electrical enclosure housing a mix of circuit breakers and Allen-Bradley motor starter contactors. The enclosure measures 24 x 17 x 7 inches and is built in a heavy-gauge black painted steel box with a hinged front door, a front-panel rotary lock, a red digital display on the exterior right side, and Warning/Danger High Voltage labeling. The interior is fully wired with red and black conductors, terminal blocks across the top, and a wiring diagram label on the inside of the door.

Specifications & What's Included

  • Overall dimensions: 24" x 17" x 7"
  • Enclosure material: Heavy-gauge steel, black painted finish
  • Breaker CB1B: 70A, 3-pole (CH4L) — left side of panel
  • Breaker CB2B: 15A, single-pole
  • Breaker CB3B: 15A, single-pole
  • Breaker CB4B: 15A, single-pole
  • Breaker CB5B: 15A, single-pole
  • Breaker CB6B: 20A, single-pole
  • Breaker CB7B: 20A, single-pole
  • Breaker CB8B: 15A, single-pole
  • Total breakers: 8 (one 70A 3-pole; five 15A single-pole; two 20A single-pole)
  • Motor starter contactors: 5x Allen-Bradley yellow contactors (C1B–C5B), wired in a row at the bottom of the enclosure
  • 2x duplex AC outlets included
  • Switches included (see photos)
  • Front-panel red digital display
  • Front-panel rotary key-lock switch
  • Wiring diagram label on inside of door

Applications

Custom-built electrical enclosures like this one are used in industrial, laboratory, and equipment-room settings where a self-contained distribution and motor-control panel is needed. The combination of branch-circuit breakers (for overcurrent protection of individual loads) and Allen-Bradley motor starter contactors (for controlling motors or other inductive loads) makes this panel suited for machine tool control, test cell power distribution, semiconductor fab support equipment, or any application requiring both circuit protection and switched motor control in a single enclosure. The 70A 3-pole main breaker is sized for a substantial three-phase or high-current single-phase feed, while the 15A and 20A single-pole branches serve individual circuits. This type of custom panel was commonly assembled for specific equipment installations and is often redeployable when the equipment it served is decommissioned.

Condition: Used
This custom breaker box enclosure has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use. The black painted steel housing is intact with normal surface wear. Internally, all breakers and Allen-Bradley motor starters are installed as shown; the wiring appears complete and undisturbed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
Custom Breaker Box Enclosure
Type:
Custom Electrical Enclosure / Breaker Panel
SKU:
19524
Enclosure Dimensions:
24 x 17 x 7 inches
Breaker CB1B:
70A, 3-Pole (CH4L)
Breakers CB2B–CB5B:
15A, Single-Pole (x4)
Breakers CB6B–CB7B:
20A, Single-Pole (x2)
Breaker CB8B:
15A, Single-Pole
Contactors / Motor Starters:
Allen-Bradley, 5x (C1B–C5B)
Number of Breakers:
8 total (1x 70A 3-pole, 5x 15A, 2x 20A)
Number of Outlets:
2
Enclosure Material:
Steel, black painted
Form Factor:
Freestanding / Wall-Mount Enclosure
Seller Notes:
Enclosure with installed breakers and contactors as shown. Includes 2 outlets and switches.
Country/Region of Manufacture:
United States
Condition Notes:
This custom breaker box enclosure has been inspected and is in good used condition. Pulled from a working environment. Steel housing intact with normal wear. Breakers and Allen-Bradley contactors installed as shown.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
