VILLA PRECISION

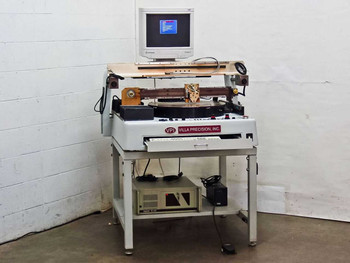

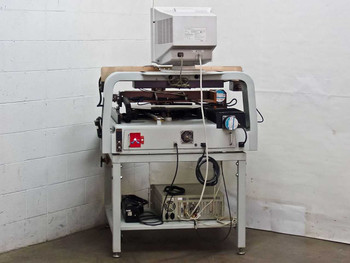

Villa Precision GS-210 Automatic Glass Scriber Single Head w/ PC-610 Computer &

VILLA PRECISION

SKU:

44475

Availability:

Usually ships within 3-5 business days after payment; contact us to arrange freight.

Weight:

565.00 LBS

Brand:

Villa Precision

Model:

GS-210

MPN:

GS-210

Type:

Automatic Single-Head Glass Scribing System

SKU:

44475

Condition:

Used – Powers On, Partially Tested

Seller Notes:

Includes Industrial PC-610 computer with GS software, keyboard, floppy disk, controller PCBs, and foot pedal

Country/Region of Manufacture:

United States

Manufacturer Location:

Phoenix, Arizona USA

Serial Number Range:

SN 2021, dated 7/95

Manufacture Date:

July 1995

Scribing Head Configuration:

Single Head, Automatic

Control Computer:

Industrial PC-610 (PC-Bus Industrial Computer)

Software Included:

GS Software (installed on included computer)

Stage Type:

Rotating vacuum chuck stage

Vacuum System:

Air/Vacuum with interlock, vacuum gauge, override controls

Pressure Controls:

Dual pressure gauges (Pressure 1 and Pressure 2)

Operating Modes:

Auto, Single Step, Fiducial Side, Manual

Scribe Head Positions:

Normal, Up/Down, All/1/2/Side selector

Front Panel Controls:

Jog (4-way), Jog Speed, Rotate Stage, Reset, Mode selector

Safety Features:

Emergency STOP button, Interlock Override, Low Vacuum alarm

Foot Pedal:

Linemaster Clipper Cat. No. 632-S foot switch included

Foot Pedal Ratings:

20A 125V / 250VAC, 1HP 125V / 250VAC — UL/CSA listed

Controller PCBs:

Proprietary VPI motion/control boards (included in drawer)

UPS / Power Conditioner:

PTSI UPS unit included

Application:

Glass and semiconductor substrate scribing/dicing

Compatible Materials:

Glass substrates, semiconductor wafers

Form Factor:

Benchtop / Stand-mounted system with integrated stand

Machine Stand:

Integrated open-frame steel stand with lower shelf for PC

Wafer Chuck Diameter:

Approx. 20 inches (measured in photo)

Condition Notes:

Villa Precision GS-210 glass scriber powers on; PC-610 computer boots into GS software. Could not fully test scribing operation. CMOS battery likely needs replacement; BIOS reconfiguration required.
