Unitek Miyachi
-
Unitek Miyachi 1-220-01 PM3 Phasemaster III Welding Controller 115V 15A
Unitek Miyachi
$525.00Was: $1,100.00Unitek Miyachi 1-220-01 PM3 Phasemaster III Welding Controller 115V 15AThe Unitek Miyachi Phasemaster III (Model 1-220-01, Catalog No. PM3) is a phase-fired resistance welding controller designed for...52804- SKU:
- 52804
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 30.00 LBS
- Brand:
- Unitek Miyachi
- Model:
- 1-220-01
- MPN:
- 1-220-01
- Catalog Number:
- PM3
- Type:
- Resistance Welding Controller
- SKU:
- 52804
- Seller Notes:
- Includes attached welding cables and power cord. Unit only — no external weld head included.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Power Requirements:
- 115V AC, 15A, 60Hz
- Voltage Rating:
- 115V AC
- Current Rating:
- 15 Amps
- Frequency:
- 60 Hz
- Duty Cycle:
- 50%
- Valve Output Voltage:
- 120 VAC (Valve 1 and Valve 2)
- Valve Current Rating:
- 0.5 Amps
- Circuit Breakers:
- CB1 (15A), CB2 (10A)
- Weld Mode:
- Weld / Temp / No Weld (switch selectable)
- Front Panel Controls:
- % Current, Weld Time (cycles), Time at Temp (cycles), Temperature
- Indicators:
- Power, At Temperature, Weld (red LED indicators)
- Pressure Inputs:
- Pressure Switch 1, Pressure Switch 2
- Pilot Outputs:
- Pilot 1, Pilot 2
- Condition:
- Used – Pulled from Working Environment
- Serial Number (Internal):
- 06044
- Condition Notes:
- Unitek Miyachi 1-220-01 Phasemaster III Welding Controller. Inspected, in good used condition; pulled from a working environment. Shows normal surface wear, scuffing, and rust spotting on rear plugs. Cables and connectors included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$525.00Was: $1,100.00 -

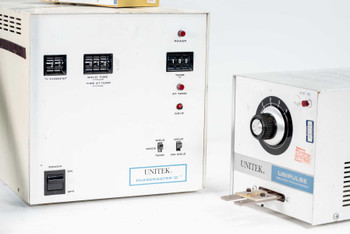

Unitek Miyachi Phasemaster III 1-220-01 Welding Controller w/ Unipulse
Unitek Miyachi
$1,200.00Was: $2,400.00Unitek Miyachi Phasemaster III 1-220-01 Welding Controller w/ Unipulse TransformerPhase-fired resistance welding controller system designed for micro and precision welding applications. Operates with...52796- SKU:
- 52796
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 63.00 LBS
- Brand:
- Unitek Miyachi
- Model:
- Phasemaster III
- MPN:
- 1-220-01
- Secondary Model:
- 9-006-01 Transformer / 2-127-05 Welding Head
- Type:
- Resistance Welding Controller System
- SKU:
- 52796
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes Unipulse transformer (9-006-01), parallel gap welding head (2-127-05), and foot pedal
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Included Components:
- Controller, Unipulse Transformer, Parallel Gap Welding Head, Foot Pedal
- Welding Type:
- Resistance Welding / Parallel Gap Welding
- Control Method:
- Phase-fired (SCR-based) with weld time and temperature control
- Front Panel Controls:
- % Current, Weld Time, Time at Temp dials; Power, Temp, Weld indicators
- Transformer Model:
- Unitek Unipulse 9-006-01 Welding Transformer
- Welding Head Model:
- Unitek Parallel Gap Welding Head 2-127-05
- Actuator / Trigger:
- Foot pedal (included)
- Application:
- Micro resistance welding, thermocouple welding, wire bonding, electronics assembly
- Compatible With:
- Unitek Miyachi resistance welding systems and accessories
- Condition Notes:
- Unitek Miyachi Phasemaster III 1-220-01 welding controller bundle inspected and in good used condition. Pulled from a working environment where it was actively in use and functional.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,200.00Was: $2,400.00
