Newtec DVB RX 2060 DVB+8 Satellite Demodulator NTC/2060/Lx 90-260VAC Rackmount
Newtec
$275.00Was: $550.00Newtec DVB RX 2060 DVB+8 Satellite Demodulator NTC/2060/Lx 90-260VAC RackmountThe Newtec DVB RX 2060 is a professional rackmount DVB+8 satellite demodulator designed for receiving and demodulating...50306- SKU:
- 50306
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Newtec
- Model:
- DVB RX 2060
- MPN:
- NTC/2060/Lx
- Type:
- DVB+8 Satellite Demodulator
- SKU:
- 50306
- Form Factor:
- Rackmount (2U)
- Power Requirements:
- 90-260VAC, 50/60Hz
- Interface Option:
- Interf. 33271AE
- Output Interface:
- SP/RS422
- IF Input Connector:
- BNC
- Monitor & Control Port:
- DB9 RS-232 (MON & CONTRL)
- Alarm Port:
- DB9
- Signal Standard:
- DVB-S / DVB+8
- Modulation:
- QPSK
- Front Panel Display:
- LCD alphanumeric
- Mode Indicators:
- DEMOD, DECOD, DEFR
- Alarm Indicators:
- ACT, MEM, TEST
- Cooling:
- Dual rear-mounted fans
- Condition:
- Used – Inspected and Tested
- Country/Region of Manufacture:
- Belgium
- Seller Notes:
- Unit powers on, passes boot self-test; all front-panel buttons functional.
- Condition Notes:
- Newtec DVB RX 2060 DVB+8 Satellite Demodulator powers on, display lights up, passes boot-up self-test. All front-panel buttons work. Not tested beyond that at our facility. Chassis shows cosmetic discoloration. Sold as inspected.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -

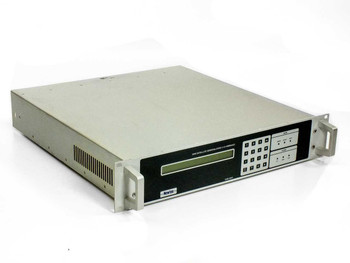

Newtec NTC/2063/Lx DVB Satellite Demodulator DVB-2063 1.41-45 Mbaud Rackmount
Newtec
$275.00Was: $550.00Newtec NTC/2063/Lx DVB Satellite Demodulator DVB-2063 1.41-45 Mbaud RackmountDVB satellite demodulator for receiving and processing DVB-S signals. Supports QPSK modulation with symbol rates from 1.41...50301- SKU:
- 50301
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- Newtec
- Model:
- NTC/2063/Lx
- MPN:
- NTC/2063/Lx
- Secondary Model:
- DVB 2063
- Type:
- DVB Satellite Demodulator
- SKU:
- 50301
- Interface Option:
- 3362/HG
- Symbol Rate Range:
- 1.41 – 45 Mbaud
- Standards:
- DVB, DVB-S, QPSK

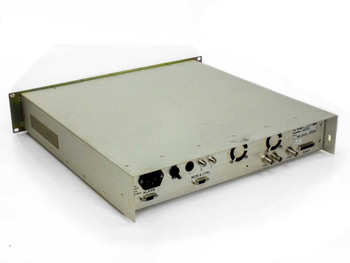

- IF Inputs:
- 3 x BNC (A, B, C) on rear panel
- Output Connectors:
- COAX1, COAX2 (BNC); SUB-D port
- Monitoring & Control:
- MON & CTRL – DB9 serial port, rear panel
- Alarm Interface:
- DB9 ALARM connector, rear panel
- Power Requirements:
- 100-240V AC, 47-63 Hz, 150VA MAX
- Power Connector:
- IEC C14 inlet with rocker on/off switch
- Form Factor:
- Rack Mount
- Rack Units:
- 2U
- Front Panel Display:
- LCD alphanumeric display
- Front Panel Controls:
- Numeric keypad; MODE (DEMOD/DECOD/DEFR); ALARM (ACT/MEM/TEST)
- Firmware Version:
- v1.60 (14 Nov 2000, per display)
- Country/Region of Manufacture:
- Belgium
- Certifications:
- UL (E188866), CE, FCC Part 15 Class A
- Condition:
- Used – Powers On, System Test Passed
- Seller Notes:
- Unit only; no additional accessories shown.
- Condition Notes:
- Newtec NTC/2063/Lx DVB Satellite Demodulator powers on; LCD displays 'system test passed.' Good used condition with typical cosmetic wear. Rear connectors clean. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00
