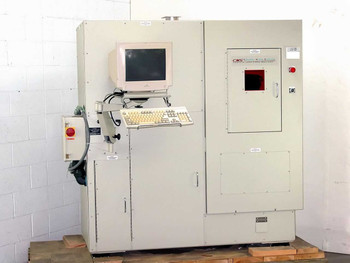

CMS PS-700 Silicon Wafer Laser Marking System Coherent Compass 501QM 4-Axis

CMS

SKU:

36587

Availability:

Usually ships within 5–7 business days — contact us for freight and logistics details.

Weight:

1,920.00 LBS

Brand:

Control Micro Systems (CMS)

Model:

PS-700

MPN:

PS-700

Type:

Silicon Wafer Laser Marking System

SKU:

36587

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Powers on and boots to PC; laser fires. Sold AS-IS — completeness not guaranteed.

Country/Region of Manufacture:

Germany (GMBH Lubec, Mfg. 06-1999)

Manufacture Date:

June 1999

Form Factor:

Floor-Standing Cabinet System

Laser Source:

Coherent Compass 501QM-VD-ES Green Laser

Laser Wavelength:

532 nm (Green)

Laser Power (CW):

03.0W / pulse 1mJ per 10ns; 10.0W / pulse 2mJ per 10ns

Wafer Size Range:

3 to 6 Micron Silicon Wafer

Motion Controller:

Compumotor AT-6400 with 4x Compumotor Zeta4 motor controllers

Motion Axes:

4-Axis: X, Y, Z, T

Motion Stage:

Newport stepper motors; MikroPrecision XS-1010-PMD200 stage

Mirror Mount 1:

Newport P100-P Mini Platform Mirror Mount

Mirror Mount 2:

Daedal/Parker 5510 Mirror and Mount

Mirror Mount 3:

Newport MM2-1A Kinetic Mirror Mount

Power Meter:

Newport 818-SL Power Meter

Lens:

03-28FT-55-532NM

Laser Power Requirements:

90-250V, 50/60Hz (per Coherent Compass 501QM rear label)

Control Software:

PC-based marker control software (boots from integrated PC)

Application / Use Case:

Semiconductor wafer laser marking / scribing

Mark Speed:

200 m/s (per software screen)

Compatible With:

3–6 inch silicon wafers; semiconductor fab integration

Condition Notes:

CMS PS-700 Silicon Wafer Laser Marking System sold AS-IS for parts/repair. Powers on, boots to PC, laser fires — completeness not confirmed. Not guaranteed turn-key. No functionality warranty. Contact us with questions.
