Avaya Merlin Magix 515A Control Unit 108588542 w/ Modules For Parts
The Avaya Merlin Magix 515A is a modular PBX control unit from Avaya's Merlin Magix small-to-medium business phone system platform. This listing is for a complete chassis loaded with five functional modules plus the power unit, as detailed below. The unit powers on, but the Merlin Messaging module (617A49) contains a known defective hard drive and will require replacement before voicemail/messaging services can operate. Sold AS-IS for parts or repair.
Specifications & What's Included
- Main Unit: Avaya Merlin Magix Model 515A Control Unit — Part No. 108588542
- Power Requirements: 100–240V AC, 4A, 50–60Hz
- Certifications: UL Listed (55ZK), CSA (LR 56260), NOM, FCC Part 15 & Part 68
- FCC Registration No.: MF: US:AV1MF05ANJ0001 / KF: US:AV1KF05ANJ0001 / PF: US:AV1PF05ANJ0001

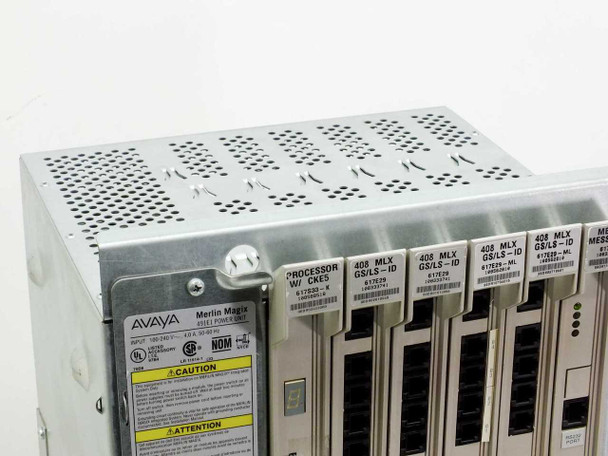

- QTY 1 — Power Module: 491E1 / 700156516X Power Unit — 100–240V AC, 4A, 50–60Hz
- QTY 1 — Processor Module: 617S33-K / 108588518 Processor w/ CKE5 (includes 10A4 Trans Card 108588468, 00DR03, 2MB)
- QTY 2 — Line/Trunk Module: 617E29 / 108333741 — 408 MLX GS/LS-ID module
- QTY 2 — Line/Trunk Module: 617E29-ML / 108562810 — 408 MLX GS/LS-ID module

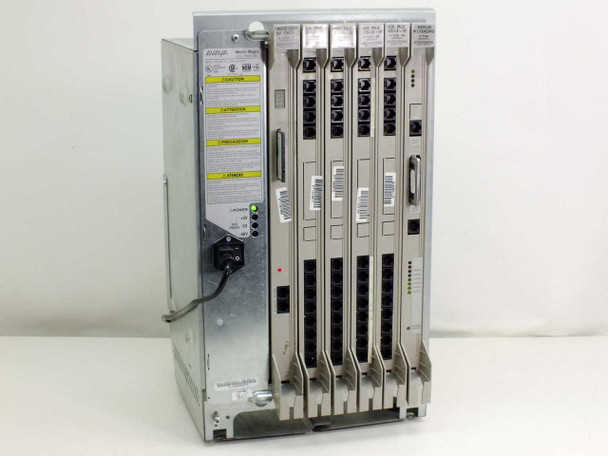

- QTY 1 — Messaging Module: 617A49 / 108333642 Merlin Messaging module (includes Merlin Messaging R1 4-Port card 12H2 S1 V1 R1) — NOTE: hard drive is defective and must be replaced
- RS-232 port visible on Merlin Messaging module

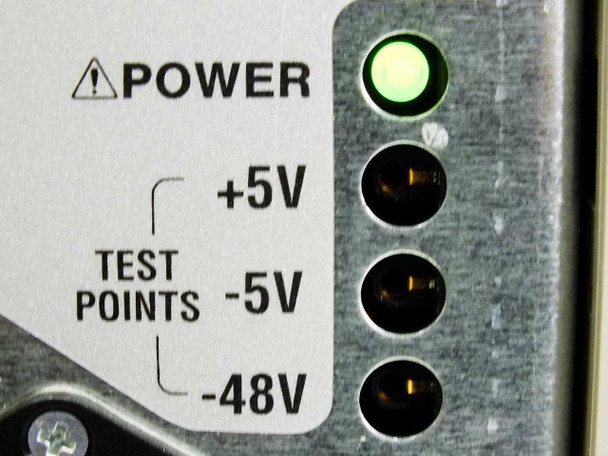

- Power LED indicator and +5V / -5V / -48V test points on power module
Applications
The Avaya Merlin Magix was a key small-to-medium business PBX platform from the late 1990s through the mid-2000s, succeeding the earlier Merlin Legend system. The 515A control unit served as the central chassis of the system, housing plug-in modules for line interfaces, the processor, and optional voicemail/messaging services. The MLX GS/LS-ID modules (617E29 series) provided ground-start and loop-start line interfaces for connecting analog trunks and extensions, while the Merlin Messaging module (617A49) delivered integrated voicemail capabilities directly within the chassis. The Merlin Magix platform supported MLX digital sets, analog extensions, and various trunk types, and was widely deployed in office environments requiring a self-contained, rack-mountable or wall-mounted PBX solution. This unit is well-suited for parts sourcing, lab/test use, or system restoration by a technician familiar with the Merlin Magix platform.
This Avaya Merlin Magix 515A Control Unit (108588542) is being sold AS-IS for parts or repair. The unit does power on, but it has not been tested at our facility and we cannot confirm whether it functions as intended or is missing any components. Importantly, the 617A49 Merlin Messaging module (108333642) is known to have a defective hard drive — this will need to be replaced before the messaging functionality can operate. All other modules are present as listed. Please review all photos carefully and contact us with any questions before purchasing.
