Apple 820-0685-B System Board 75MHz PowerPC 603 CPU Performa 5200 For Parts

(No reviews yet) Write a Review
SKU:
11017
MPN:
820-0685-B
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

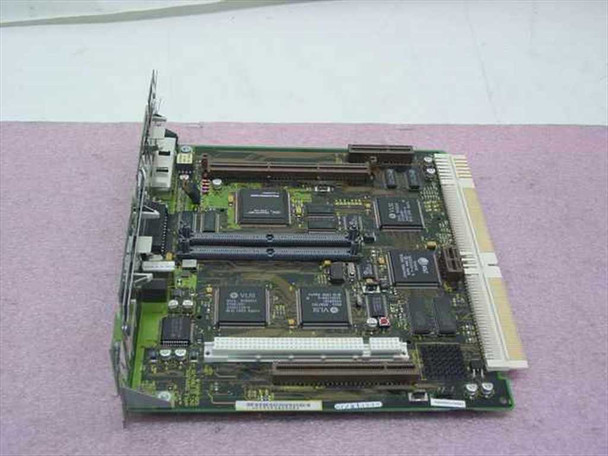

  • Apple 820-0685-B system board top view showing PowerPC 603 CPU, VIA chipset ICs, RAM slots, and edge connectors
  • Close-up of Apple 820-0685-B PCB silkscreen showing Apple Computer Inc. copyright 1994/95 and part number 820-0685-B with LCPDS slot label
  • Apple 820-0685-B logic board installed in Performa 5200 chassis tray showing rear I/O ports including ADB, SCSI, and serial connectors
  • Apple 820-0685-B system board reverse/solder side view showing PCB traces, expansion edge connector, and rear port bracket
$25.90
Was: $50.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Apple 820-0685-B System Board 75MHz PowerPC 603 CPU Performa 5200 For Parts

The Apple 820-0685-B is the logic board (system board) from the Apple Performa 5200 and LC 5200 all-in-one desktop computers. It integrates a 75MHz PowerPC 603 RISC processor and was designed as the central computing substrate of Apple's mid-1990s consumer all-in-one line. The PCB silkscreen reads "Apple Computer, Inc. © 1994,95," placing this board in Apple's transition era between 68k Motorola processors and the PowerPC architecture.

Specifications & What's Included

  • Part Number: 820-0685-B
  • CPU: PowerPC 603, 75MHz
  • Compatible Systems: Apple Performa 5200, Performa 5200CD, LC 5200 series
  • PCB Copyright: Apple Computer, Inc. © 1994, 1995
  • VIA chipset ICs visible on board (markings partially legible in photos)
  • RAM expansion slots present on board
  • LCPDS expansion slot (per PCB silkscreen label visible in photos)
  • Integrated rear I/O: ADB ports, SCSI (DB-25), serial ports — visible in chassis tray photo
  • Mounted in original Performa 5200 chassis/drive tray assembly
  • Includes only what is shown in the photos — no additional cables, drives, or accessories
  • Condition: As-Is / For Parts or Not Working — not tested

Applications

The Performa 5200 and LC 5200 were Apple's entry-level all-in-one desktop computers introduced in 1995, combining a 14-inch CRT monitor, CD-ROM drive, and logic board into a single unit aimed at the home and education markets. The PowerPC 603 processor represented Apple's first generation of RISC-based consumer Macs following the 1994 transition away from Motorola 68k CPUs, a shift that significantly improved performance per watt for the era. This board is sought today by vintage Mac collectors and technicians maintaining or restoring Performa 5200 and LC 5200 machines — a community that still actively services these units for preservation and display. The LCPDS slot also made these systems expandable with LC-format PDS cards, a legacy format carried over from the earlier LC series. Replacement logic boards for this generation are increasingly scarce, making this a useful parts source for anyone with a non-functional 5200-series machine.

Condition: For Parts or Not Working
This Apple 820-0685-B Performa 5200 system board is being sold as-is for parts or repair. It has not been tested and is not guaranteed to be functional. No accessories, cables, or additional components are included beyond what is visible in the photos — the board and its integrated chassis tray are shown. The board appears complete and free of obvious physical damage based on photos, but buyers should review all images carefully before purchasing. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Apple
Model:
820-0685-B
MPN:
820-0685-B
SKU:
11017
Type:
Motherboard / Logic Board
CPU:
PowerPC 603, 75MHz
Compatible With:
Apple Performa 5200, LC 5200 Series
Form Factor:
All-in-One / Integrated
Manufacture Date:
1994/1995 (per PCB silkscreen)
Seller Notes:
Sold as-is for parts or repair only. Includes only what is shown in photos.
Country/Region of Manufacture:
United States
Condition Notes:
This Apple 820-0685-B Performa 5200 system board is sold as-is for parts or repair. Not tested, no functionality guaranteed. Includes only what is shown in photos. Please review all images and contact us with questions.
