Apple 820-0303-02 NuBus Adapter Card for Macintosh IIsi NuBus Expansion Slot

(No reviews yet) Write a Review
SKU:
42649
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

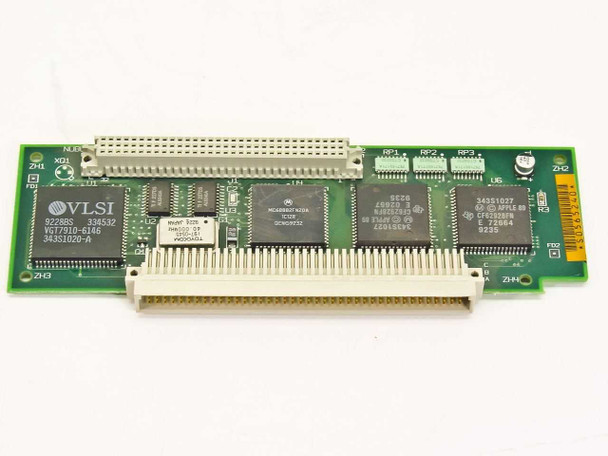

  • Apple 820-0303-02 NuBus Adapter Card – component side showing VLSI VGT7910 controller chip and NuBus edge connector

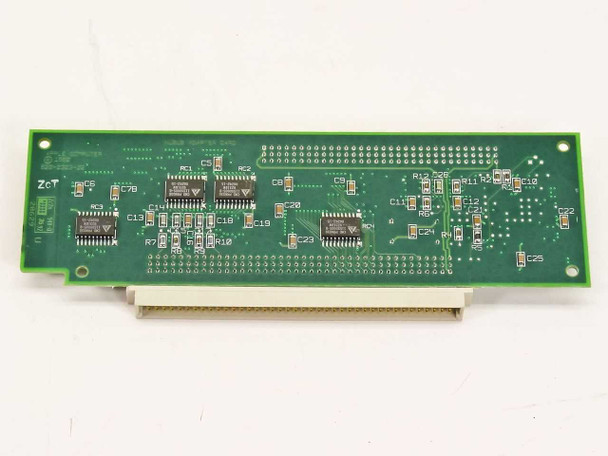

  • Apple 820-0303-02 NuBus Adapter Card – solder/reverse side showing IIsi slot connector and passive components

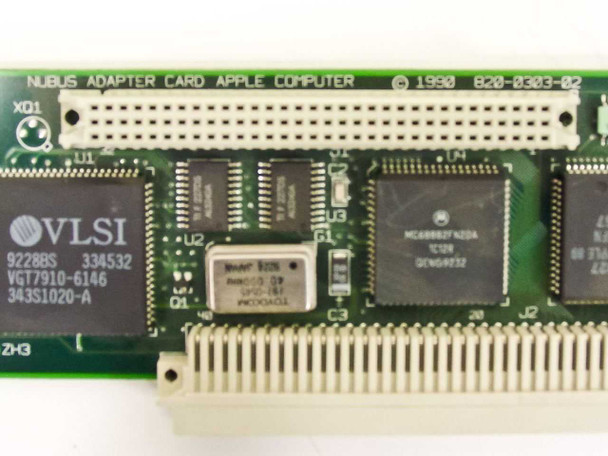

  • Apple 820-0303-02 NuBus Adapter Card – close-up of Motorola MC68882FN20A FPU, VLSI chip, and gold NuBus edge connector
  • Apple 820-0303-02 NuBus Adapter Card – close-up of board silk-screen label reading 'NUBUS ADAPTER CARD APPLE COMPUTER © 1990 820-0303-02' with VLSI and Motorola chips visible
$45.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Apple 820-0303-02 NuBus Adapter Card for Macintosh IIsi NuBus Expansion Slot

The Apple 820-0303-02 is the official Apple-manufactured NuBus Adapter Card designed specifically for the Macintosh IIsi. The IIsi shipped without a native NuBus slot, and this card plugs into the IIsi's internal processor-direct slot (PDS) to add a single NuBus expansion connector, allowing the use of standard small-format NuBus cards. This is an Apple OEM part, dated 1990, bearing the board silk-screen label "NUBUS ADAPTER CARD APPLE COMPUTER © 1990 820-0303-02."

Specifications & What's Included

  • Apple Part Number: 820-0303-02
  • Function: PDS-to-NuBus adapter — adds one NuBus expansion slot to the Macintosh IIsi
  • Host Interface: Macintosh IIsi Processor-Direct Slot (PDS) connector (100-pin edge)
  • Expansion Interface: NuBus (96-pin DIN 41612-style connector)
  • Main Controller Chip: VLSI VGT7910-6146, marking 343S1020-A
  • Secondary Chip: Motorola MC68882FN20A (floating-point unit / FPU), IC128, date code QENG9232
  • Additional ICs: multiple support/logic chips visible on component side
  • PCB Date: © 1990
  • Form Factor: proprietary Apple card/module
  • Included: adapter card only — no NuBus card, cables, or accessories

Applications

The Macintosh IIsi, introduced in October 1990, was a compact and affordable member of Apple's Macintosh II family. Unlike the IIx, IIcx, and IIci, the IIsi had only a single PDS expansion slot rather than NuBus slots, which limited its compatibility with the large library of NuBus cards already available for the Mac II line. Apple's 820-0303-02 NuBus Adapter solves that limitation: it translates the PDS interface into a NuBus slot, enabling users to install NuBus video cards, network cards, accelerators, and other peripherals that were standard equipment for professional Mac II users of the era. The card also incorporates a Motorola 68882 FPU, which was a separate optional co-processor in many Mac IIsi configurations — providing floating-point acceleration alongside the NuBus bridging function. This adapter is sought today by Macintosh vintage enthusiasts and collectors who are restoring or expanding IIsi systems, as well as by those maintaining early-1990s Mac-based workstations in legacy production or archival environments.

Condition: Used
This Apple 820-0303-02 NuBus Adapter Card for the Macintosh IIsi has been inspected and appears to be in good used condition. The PCB is clean with no visible cracking, broken traces, or damaged connectors. The NuBus edge connector and IIsi slot connector both look intact. Normal light handling wear is present, consistent with prior use in a Mac IIsi system. Please review our photos and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Apple
Model:
820-0303-02
MPN:
820-0303-02
Type:
NuBus Adapter Card
SKU:
42649
Compatible With:
Apple Macintosh IIsi
Interface:
NuBus
Form Factor:
Proprietary Card/Module
Main Chipset:
VLSI VGT7910-6146 (343S1020-A)
Secondary Chipset:
Motorola MC68882FN20A (FPU)
Country/Region of Manufacture:
United States
Year:
1990
Seller Notes:
Card only; no accessories included.
Condition Notes:
This Apple 820-0303-02 NuBus Adapter Card for the Macintosh IIsi has been inspected and appears to be in good used condition. PCB is clean; connectors intact. Normal light wear. Please view our photos and contact us with questions.
