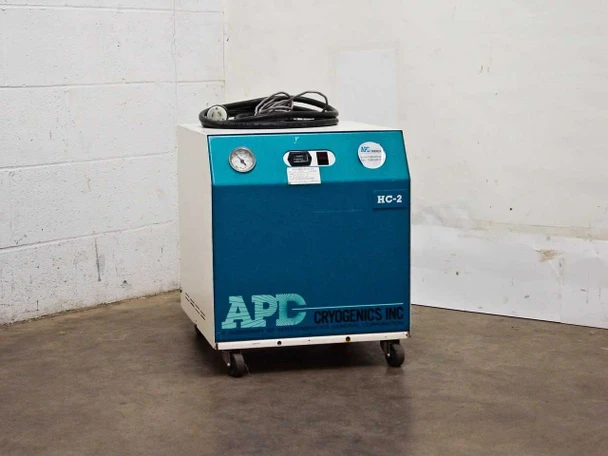

APD Cryogenics HC-2DR Helium Compressor Module Water Cooled SK11397A186

$1,200.00 $960.00
(You save $240.00)
(No reviews yet) Write a Review
SKU:
44243
Condition:
Used
Shipping:
Calculated at Checkout
APD Cryogenics HC-2DR Helium Compressor Module Water Cooled  SK11397A186
Request Quote
APD Cryogenics HC-2D Helium Compressor Module Water Cooled 208-230/200 VAC SK11397A186
  • APD Cryogenics / Air Products
  • Model number: HC-2DR
  • Series number: HC-2
  • Part number: SK11397A186
  • 208-230/200 Volts, 1 Phase, 60/50 HZ
  • Charge to 240-245 PSIG equalized at 68F (20C)
  • Use Helium gas 99.995% pure, dewpoint below 80F (62C) degrees'
  • Water Flow Rate: 0.7 GPM (Min) at 80F (Max), 2.6 LPM (Min) at 28C (Max)
  • Cooling Water Pressure MINIMUM: 210 kPa (30 psig)
  • Cooling Water Pressure MAXIMUM: 690 kPa (100 psig)
  • Absosrber installed at 21,707 hours, next change required at 36,707 hours
  • 20 Amps, 250 Volts plug
  • Overall dimensions: 17.25 Wide x 21.5 Deep x 20.5 Tall -- 168 LBS
  • This item will require freight shipping. Please contact us for a freight shipping quote, to arrange local pickup, or to schedule a viewing at our facility.
  •
