Description
Anzac T-1000 RF Power Splitter Combiner 10-1000 MHz SMA Coaxial Wideband

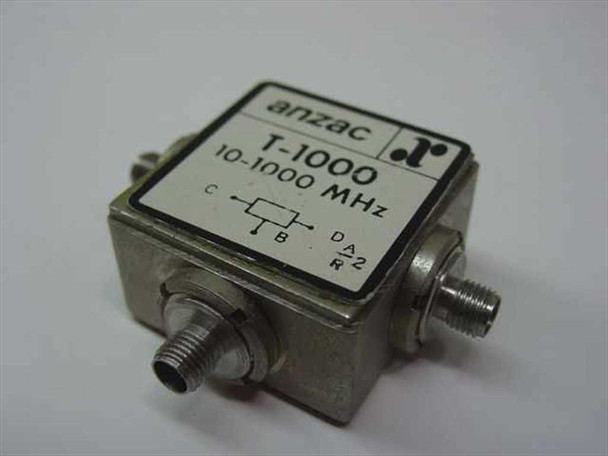

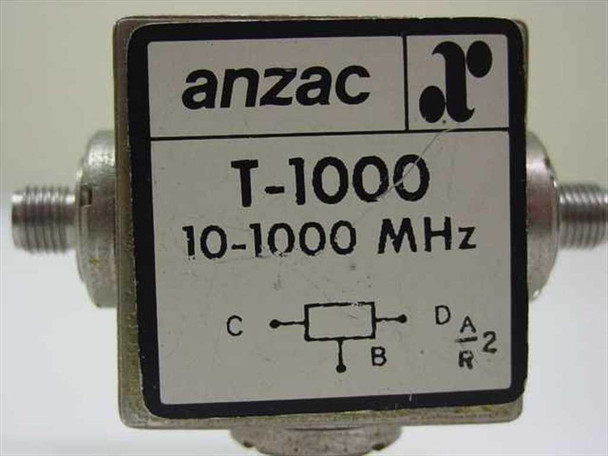

The Anzac T-1000 is a passive coaxial RF power splitter/combiner covering a wideband frequency range of 10 to 1000 MHz (1 GHz). Housed in a compact stainless steel body with SMA female connectors, it is designed to split an RF input signal into two equal outputs, or conversely to combine two signals into one output. Three ports are labeled C, B, and D on the top schematic, corresponding to the two-way resistive/hybrid divider topology.
Specifications & What's Included
- Brand: Anzac
- Model: T-1000
- Frequency Range: 10–1000 MHz
- Function: Two-way RF power splitter / combiner
- Connector Type: SMA female (3 ports)
- Port Designations: C, B, D (as labeled on top schematic)
- Housing: Compact stainless steel / metal alloy body
- Unit only — no cables or mounting hardware included
Applications
Passive RF power splitters and combiners like the Anzac T-1000 are standard components in RF and microwave signal distribution systems. They are used in labs, test benches, communications systems, signal monitoring setups, and antenna distribution networks where a single RF source must feed multiple loads, or where multiple signals need to be combined into one path. The 10–1000 MHz range makes this unit well suited for HF through UHF applications, including broadcast signal distribution, spectrum analyzer setups, cable TV head-end work, and RF research. Anzac (later absorbed into M/A-COM Technology Solutions) was a well-known U.S. manufacturer of passive RF and microwave components from the 1960s through the 1990s, and their splitters remain in active use in test and measurement environments today.
This Anzac T-1000 RF Power Splitter/Combiner has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use. The stainless steel housing shows minor surface wear consistent with bench or rack use. The SMA connectors appear clean with no visible damage to the center pins or threads. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Anzac |
Model: |
T-1000 |
MPN: |
T-1000 |
Type: |
RF Power Splitter / Combiner |
SKU: |
33883 |
Frequency Range: |
10–1000 MHz |
Connector Type: |
SMA (Female) |
Number of Ports: |
3 (1 input, 2 output) |
Topology: |
Two-Way Power Splitter / Combiner |
Form Factor: |
Inline / Benchtop Module |
Housing: |
Stainless Steel / Aluminum Alloy Body |
Seller Notes: |
Unit only — no cables or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Anzac T-1000 RF Power Splitter/Combiner has been inspected and is in good used condition. Pulled from a working environment. SMA connectors are clean; housing shows minor surface wear. Please contact us with any questions. |
