Analog Devices ADDS-2101 ADSP-2101 16-Bit DSP In-Circuit Emulator Dev System
The Analog Devices ADDS-2101 is a benchtop in-circuit emulator (ICE) designed for developing and debugging firmware on systems built around the ADSP-2101, Analog Devices' 16-bit fixed-point digital signal processor. The system provides full real-time emulation of the ADSP-2101, allowing engineers to run, halt, single-step, and inspect program execution on actual target hardware. An ADSP-2101 Personality Board is installed inside the enclosure, and the included ADSP-2101UMBIL umbilical board connects the emulator to the target system in place of the actual DSP chip.
Specifications & What's Included
- Model: ADDS-2101
- Target Processor: ADSP-2101 (16-Bit Fixed-Point DSP)
- Architecture: Enhanced Harvard, three-bus (Instruction Bus + dual Data Buses)
- Computation Units: ALU, Multiplier/Accumulator, Shifter
- On-chip memory support: Program Memory (RAM or ROM) and Data Memory RAM
- Integrated I/O: Serial Ports, Timer
- Single-cycle instruction execution and multifunction instructions
- Installed board: ADSP-2101 Personality Board with RTA32-1 module
- Included: ADSP-2101UMBIL umbilical board (in anti-static bag)
- Logic Module Probe connectors (×2) on Personality Board panel
- Host interface: DB-25 (HOST port)
- Terminal interface: DB-25 (TERMINAL port)
- SYNC connector on Personality Board panel
- Power input: 90–132 VAC / 180–264 VAC, 47–63 Hz, 250W MAX
- Form factor: Desktop/benchtop enclosure
- Manufactured by Analog Devices, One Technology Way, Norwood, MA — Made in USA
Applications
The ADDS-2101 was designed for embedded systems engineers developing real-time DSP applications on the ADSP-2101 processor, which was introduced by Analog Devices in the late 1980s and became widely used in telecom, audio processing, industrial control, and instrumentation applications throughout the early-to-mid 1990s. In-circuit emulators of this generation replaced the actual DSP on the target board with an umbilical probe, giving the development host full visibility into and control over the processor's execution in real time — a capability that was critical before on-chip debug (JTAG/BDM) interfaces became standard. The ADDS-2101 works with target hardware designed around the ADSP-2101, ADSP-2101A, and closely related members of the ADSP-21xx family. It was used in university research labs, defense electronics development, and commercial DSP product design. Today it remains of interest to engineers maintaining or reverse-engineering legacy ADSP-2101-based systems, as well as to collectors of early DSP development tools.

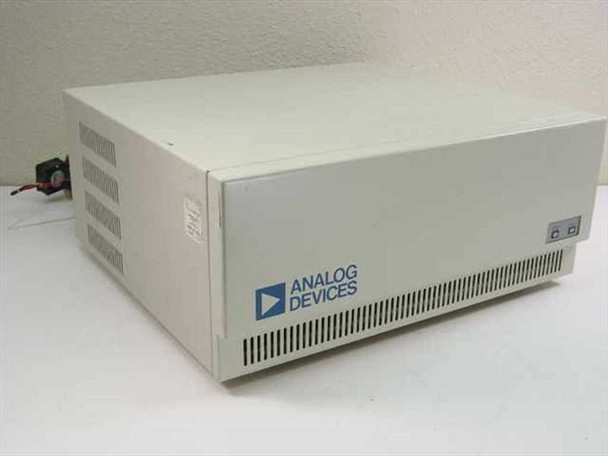

This Analog Devices ADDS-2101 DSP In-Circuit Emulator has been inspected and appears to be in good used condition. The beige desktop enclosure shows light surface wear consistent with lab use but is structurally sound with no cracks or broken panels. The ADSP-2101 Personality Board and RTA32-1 module are installed and visible through the rear panel, and the ADSP-2101UMBIL umbilical board is included in its anti-static bag. Please view our photo set and contact us if you have any questions.
