Description
Allen-Bradley 1492-GH150 Ser. B Circuit Breaker 15A AC 250V DC 65V DIN Rail

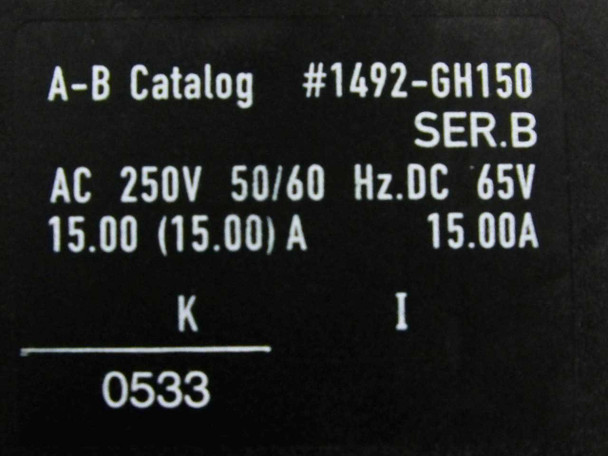

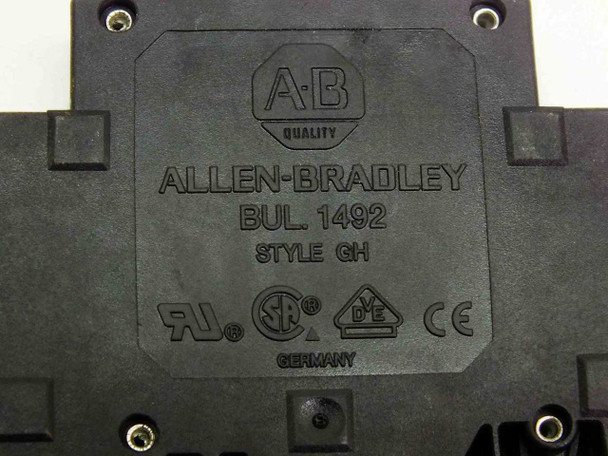

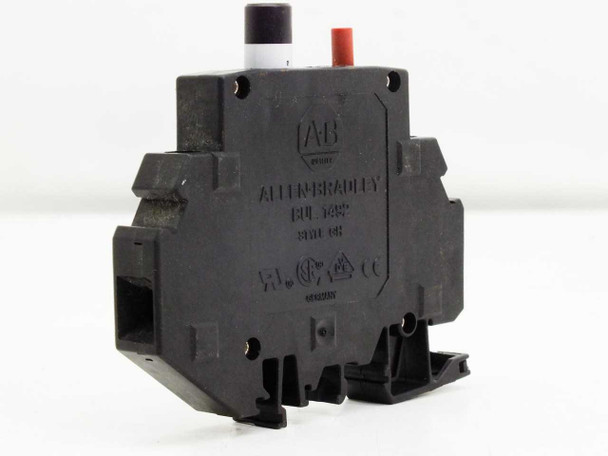

The Allen-Bradley 1492-GH150 is a single-pole miniature circuit breaker from Rockwell Automation's Bulletin 1492 GH series, rated for 15A at AC 250V (50/60 Hz) and DC 65V. It mounts on standard DIN rail and features a manual trip/reset mechanism with a rocker-style handle stamped "15" and a red fault indicator button on the top edge. The unit carries UL, CSA, DIN VDE (DE), and CE certifications and was manufactured in Germany.
Specifications & What's Included
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Catalog Number: 1492-GH150
- Bulletin: 1492
- Style: GH
- Series: B
- Amperage Rating: 15A
- AC Voltage Rating: 250V AC, 50/60 Hz
- DC Voltage Rating: 65V DC
- Number of Poles: 1
- Trip Curve: K
- Mounting: Standard DIN rail
- Certifications: UL, CSA, DIN VDE (DE), CE
- Country of Manufacture: Germany
- Date Code: 0533
- Includes: Breaker only — no accessories or mounting hardware
Applications
The Allen-Bradley Bulletin 1492 GH series circuit breakers are widely used in industrial control panels, machine tool enclosures, and automation systems for branch circuit protection of control circuits and power distribution buses. The DIN rail form factor makes them a standard fit in IEC-style control cabinets alongside contactors, relays, and terminal blocks. The Trip Curve K characteristic — a higher magnetic trip threshold than the common B or C curves — is designed for loads with higher inrush currents, such as transformer primaries and solenoid coils. These breakers remain common in Allen-Bradley and Rockwell Automation panel builds and are a direct-replacement part for existing 1492 GH installations.
This Allen-Bradley 1492-GH150 Series B DIN Rail Circuit Breaker has been inspected and appears to be in good used condition. The housing is intact with no cracks or breaks, and the DIN rail clip and terminal connection points look clean and undamaged. The unit shows minor surface scuffing consistent with normal handling and storage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Allen-Bradley |
Model: |
1492-GH150 |
MPN: |
1492-GH150 |
Secondary Model: |
Bulletin 1492 |
SKU: |
46919 |
Type: |
Miniature Circuit Breaker |
Series: |
Series B |
Style: |
GH |
Amperage Rating: |
15A |
AC Voltage Rating: |
250V AC |
DC Voltage Rating: |
65V DC |
Frequency: |
50/60 Hz |
Mounting Type: |
DIN Rail |
Number of Poles: |
1 |
Trip Curve: |
K |
Country/Region of Manufacture: |
Germany |
Certifications: |
UL, CSA, DIN VDE (DE), CE |
Seller Notes: |
Breaker only — no accessories or mounting hardware included. |
Condition Notes: |
This Allen-Bradley 1492-GH150 Ser. B 15A circuit breaker has been inspected and is in good used condition. Housing is intact, DIN rail clip is undamaged, and terminals are clean. Minor surface scuffing from handling. |
