Advanced Energy MDX-10K 2012-010-C DC Magnetron Slave Power Supply 208V 3-Ph
The Advanced Energy MDX-10K is a DC magnetron drive power supply designed for use in physical vapor deposition (PVD) sputtering systems. This unit is configured as a slave supply, meaning it operates in tandem with a master MDX controller to deliver higher combined output power to the sputtering target. The MDX series from Advanced Energy is one of the most widely used DC power platforms in the thin-film deposition industry.
Specifications & What's Included
- Manufacturer: Advanced Energy Industries, Fort Collins, Colorado, USA
- Model: MDX-10K

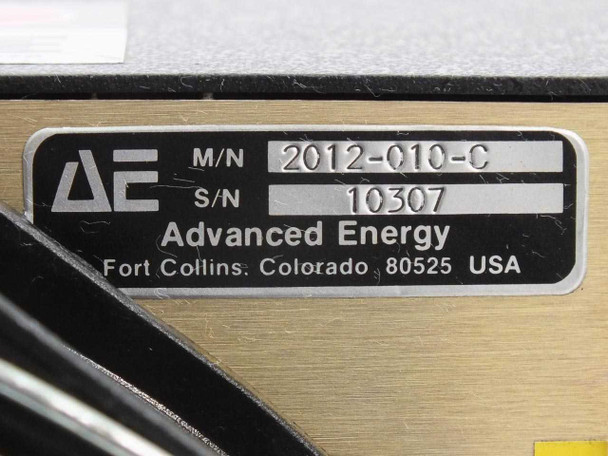

- Part Number (M/N): 2012-010-C
- Configuration: Slave unit (designed to operate in a master/slave MDX pair)
- Form Factor: 4U rackmount
- Dimensions: 20" (D) x 19" (W) x 7" (H)
- Input Power: 208V AC, 3-Phase, 50/60 Hz; 120 VAC auxiliary
- Rear connectors: USER (D-sub), HOST (D-sub), DISPLAY (DB-15)
- Rear circuit breakers: three (visible in photos, all in ON position)
- Cooling: dual large axial fans on rear panel
- Front panel: STATUS indicator LEDs (RDY, SETPOINT, OUTPUT, POWER)
- Unit only — no cables or accessories included
Applications
The MDX series is a line of DC magnetron drive power supplies widely used in PVD (physical vapor deposition) sputtering systems for semiconductor fabrication, flat-panel display manufacturing, optical coating, and hard-coating processes. In a typical PVD chamber, the MDX supplies a controlled DC voltage to the sputtering target (cathode), sustaining the plasma needed to eject target material onto the substrate. The slave configuration allows two MDX units to be paralleled under a master controller, effectively doubling the available output power for larger or higher-power targets. Advanced Energy's MDX line became an industry standard in semiconductor and thin-film production environments through the 1990s and 2000s, and replacement and spare units remain in active demand for systems still running this platform.
The Advanced Energy MDX-10K DC Magnetron Slave Power Supply (2012-010-C) has been visually inspected and is in good cosmetic condition overall. It has not been powered up or tested at our facility — it came out of a working semiconductor/PVD environment where it was previously in service. The chassis is clean with no obvious physical damage; the rear cooling fans, connectors, and terminal block all appear intact. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Advanced Energy |
Model: |
MDX-10K |
MPN: |
2012-010-C |
Secondary Model: |
2012-010-C |
SKU: |
52056 |
Type: |
DC Magnetron Slave Power Supply |
Form Factor: |
4U Rackmount |
Power Requirements: |
208V AC, 3-Phase, 50/60 Hz; 120 VAC |
Phase: |
Three Phase |
Voltage Rating: |
208V AC |
Frequency: |
50/60 Hz |
Cooling: |
Dual large axial cooling fans |
Interface / Connectors: |
USER D-sub, HOST D-sub, DISPLAY DB-15 |
Application: |
DC Magnetron Sputtering / PVD Thin Film Deposition |
Configuration: |
Slave unit (paired with master MDX controller) |
Country/Region of Manufacture: |
United States |
Dimensions: |
20" x 19" x 7" |
Seller Notes: |
Unit only — no cables or accessories included. |
Condition Notes: |
Advanced Energy MDX-10K (2012-010-C) DC Magnetron Slave Power Supply. Not powered or tested at our facility; pulled from a working PVD environment. Cosmetically clean, no obvious damage. Please view photos and contact us with questions. |
