Description

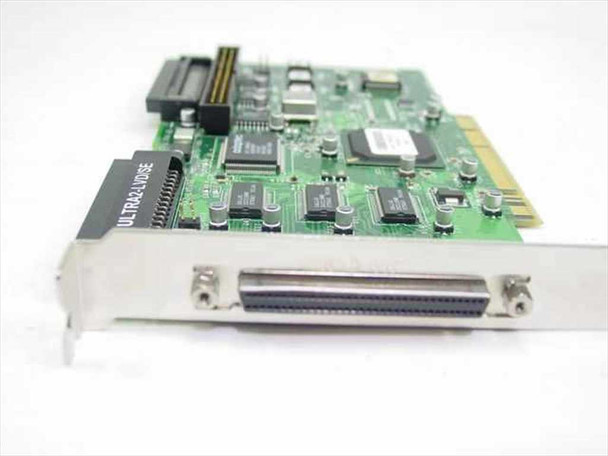

Adaptec AHA-2940U2W Ultra2 Wide SCSI PCI Controller Card 68-Pin LVD
The Adaptec AHA-2940U2W is a PCI SCSI host adapter supporting the Ultra2 Wide SCSI standard, delivering sustained burst transfer rates of up to 80 MB/s over a Low Voltage Differential (LVD) bus. It is a single-channel card designed to connect SCSI hard drives, tape drives, optical drives, and other SCSI peripherals to desktop workstations and servers with a standard PCI slot.
Specifications & What's Included
- Model: Adaptec AHA-2940U2W
- Part Number: 1707900 C
- Interface: PCI (32-bit)
- SCSI Standard: Ultra2 Wide SCSI (LVD/SE)
- Max Transfer Rate: 80 MB/s (LVD mode)
- External Connector: 68-pin HD SCSI (LVD/SE)
- Internal Connector: 50-pin standard SCSI header
- Form Factor: Full-height PCI card
- Controller Chip: Adaptec ASIC (labeled AHA-2940U2W, date code 9847)
- Card only — no cables or accessories included
Applications
The AHA-2940U2W was one of Adaptec's mainstream Ultra2 Wide SCSI cards from the late 1990s, targeting workstations and entry-level servers that needed fast, reliable SCSI storage connectivity. Ultra2 Wide SCSI doubled the bus speed of the earlier Ultra Wide standard (40 MB/s) and introduced LVD signaling, which extended the maximum cable length to 12 meters and reduced signal noise compared to Single-Ended (SE) implementations. These cards were commonly used to connect SCSI hard drive arrays, DAT and DLT tape libraries, and CD-ROM towers in Windows NT, Windows 2000, Linux, and Novell NetWare server environments. Today they remain in demand for legacy workstation builds, vintage server restorations, and any application still running SCSI storage hardware from that era.
This Adaptec AHA-2940U2W Ultra2 Wide SCSI PCI controller card has been inspected and is in good condition. It was pulled from a working environment where it was in use and functional. The PCB and components look clean with no visible damage; the bracket and connectors are intact and show normal handling wear consistent with prior service. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Adaptec |
Model: |
AHA-2940U2W |
MPN: |
AHA-2940U2W |
Secondary Model: |
1707900 C |
SKU: |
18523 |
Type: |
SCSI Host Adapter / Controller Card |
Interface: |
PCI |
SCSI Type: |
Ultra2 Wide SCSI (LVD) |
SCSI Transfer Rate: |
80 MB/s |
External Connector: |
68-Pin HD (LVD/SE) |
Internal Connector: |
50-Pin |
Form Factor: |
PCI Card (Full Height) |
Compatible With: |
Desktop and workstation PCs with PCI slot |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Card only; no cables or accessories included. |
Condition Notes: |
This Adaptec AHA-2940U2W Ultra2 Wide SCSI PCI controller was pulled from a working environment where it was in use and functional. Inspected and in good condition. Please view photos and contact us with any questions. |
